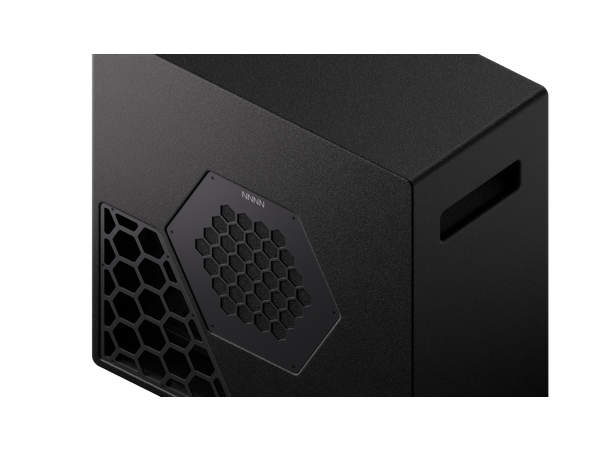

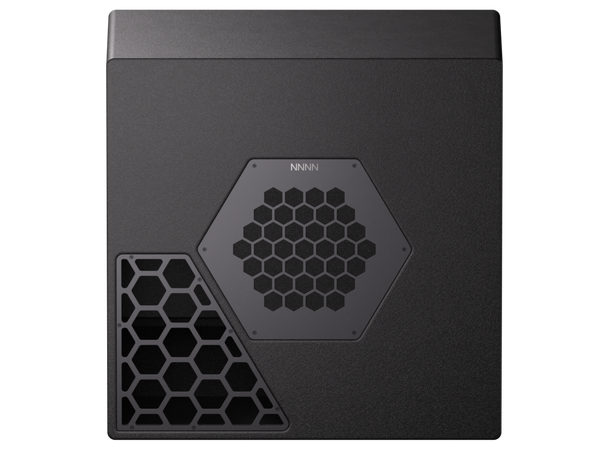

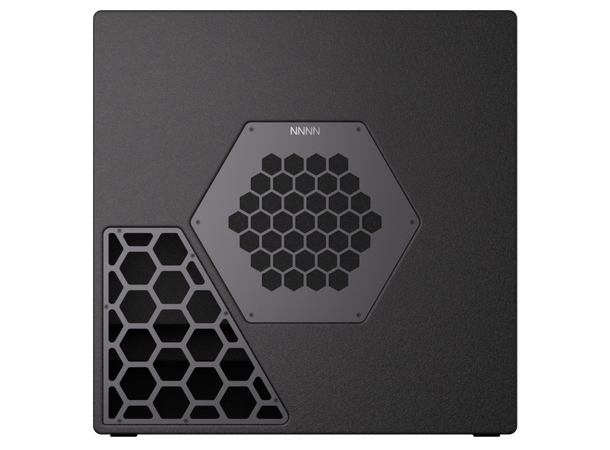

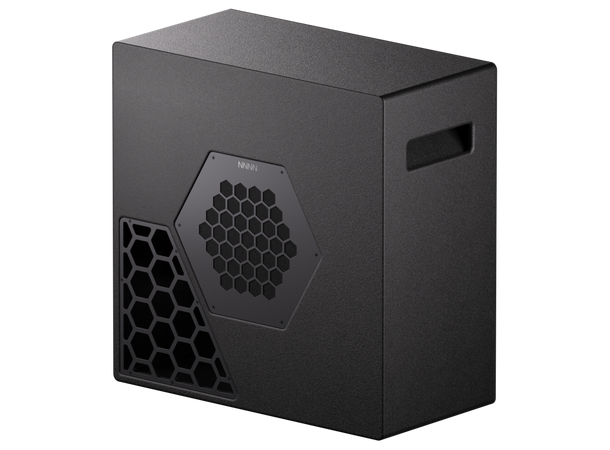

NNNN Devor 30P




The Devor 30 is a high performance horn loaded subwoofer system with two 12” studio-grade drivers.




Horn loading


The horn loading mechanism enables high sensitivity, high impulse response, and an impressively low distortion level. The combination of high quality audio reproduction down to 30Hz, with very high SPL for the size and weight of the cabinet, makes the Devor 30 suitable for a range of applications.

Sub cardioid dispersion pattern

The Devor 30 has a close to sub cardioid dispersion pattern all through its intended bandwidth. This allows the sound pressure to be directed towards the audience, and minimizes the need for acoustical treatment of the room, as less energy is reflected off surrounding surfaces.


Mechanically balanced design

The Devor 30 is designed with dual 12’’ drivers, working mechanically in a push push configuration to feed the horn. This cancels out the movement exercised on the cabinet by each driver and minimizes distortion from the cabinet. This also contributes to the audience perceiving the bass signal through the air, along with rest of the music instead of out of time through the floor.

High SPL, small cabinet

The Devor 30 is appropriate for a broad range of applications. Its overall compact size, shallow depth, and small footprint make it practical for demanding applications where space is critical. It is ideal for concert halls to clubs, cinemas, and auditoriums, as well as a bass extension in studio, HiFi, and home cinema setups.



Specification

Configurations: Self-powered and active 2-way
Frequency response ±3dB: 30 Hz - 80 Hz
Max. cont. SPL (1m, 2Pi): 132 dB
Nominal impedance front/rear: 8 O
Power handling capacity (cont./ program): 1000 W / 2000 W
Connections self-powered: PowerCon True1 for power, XLR input, XLR output, Ethernet
Connections 2-way: SpeakOn 4 pole

Height: 800 mm / 23.6 in
Width: 800 mm / 23.6 in
Depth: 400 mm / 11.8 in
Weight self-powered: 45.4 kg / 100,1 lb
Weight 2-way: 44,4 kg / 97.9 lb




Teknisk info

Produktinformasjon

- Tilkoblinger (Pluggtype HW)
  • C14 Euro Apparat plugg
  • Jack
  • XLR
