Arrayable Point Source - Made in Norway

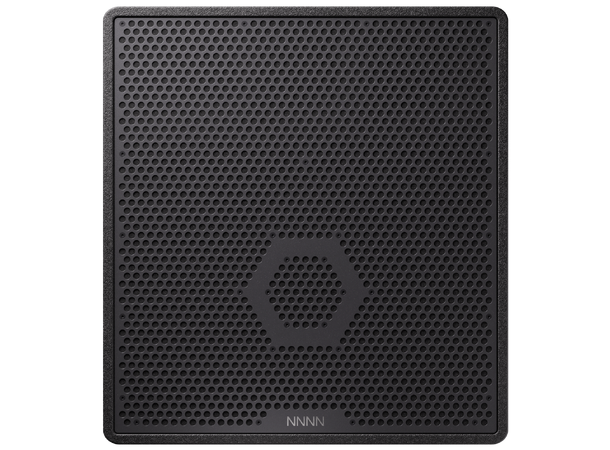

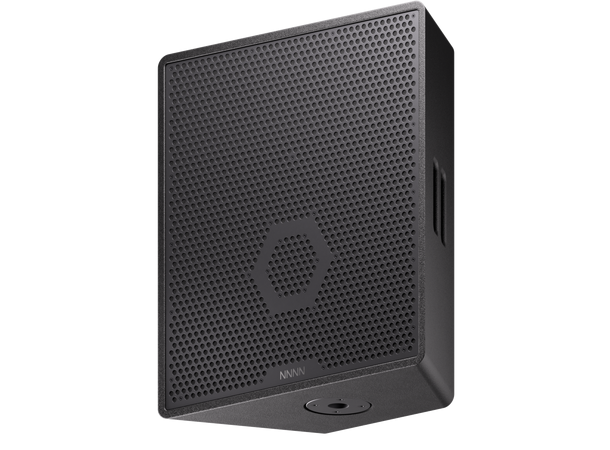

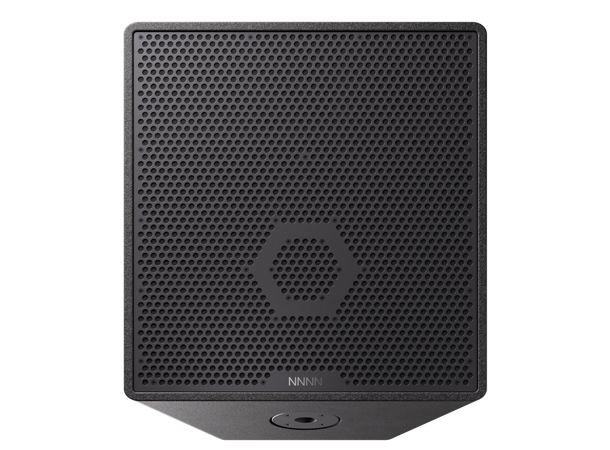

The GAGE 70 is a fully horn-loaded arrayable point source for small and medium-sized applications where sound quality is more important than high SPL. Directivity control, feedback resistance, low distortion, and low noise floor have been the main goals for this design. It combines studio-grade dual 5.25” and three 3.5” drivers loading four separate horns.

GAGE 70 is designed to reduce audio feedback. The HF horns both work individually and together to obtain even dispersion throughout their range. The mid-bass horn has mechanically balanced drivers and a proprietary concept for directivity control throughout its frequency range.

The dispersion of the Gage 70 is 60 × 40 degrees, which enables it to cover many venues with a single cabinet. Still, like all NNNN tops, it is arrayable. The design of the dispersion control enables two or more modules up to a full circle to work together and act as one speaker - without overlap - across the entire bandwidth. By adding just one more module you cover 120 degrees horizontally, which is sufficient for wide coverage venues.

The horizontal dispersion of the GAGE 70 is defined by the geometry of the horn and is therefore aligned with the outer walls of the cabinet. This makes it simple to visually confirm the dispersion field at a venue, for instance by aligning the side of the cabinet parallel to a sidewall. This avoids reflections bouncing off the wall and enhances the clarity of the sound at the venue in a quick and practical manner.

Integrated into one cabinet is both a top and a midbass horn with high dispersion control throughout the entire bandwidth of the speaker, and with high directivity.

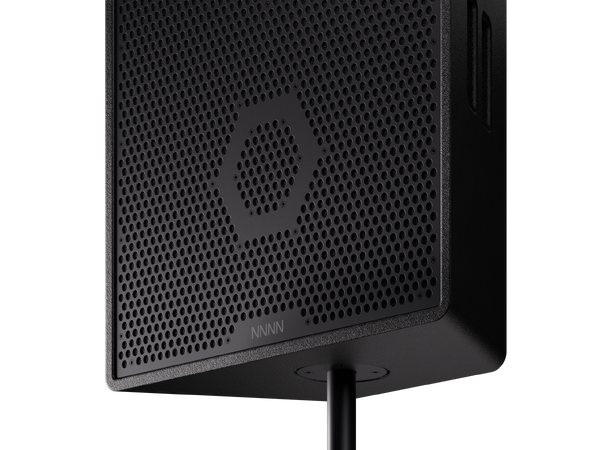

GAGE 70 can be pole mounted or flown with NNNN accessories. This allows a flexibility of -30 to +10 degrees vertically in 5 degree increments.

The GAGE 70 is a good fit for any small and medium sized venue.

*Color variations on request

Specifications


System data
Frequency response - ±3dB - 70Hz-18kHz
Max. cont. SPL (1m, 2Pi) - 120dB

Loudspeaker data
Nominal impedance - 24Ohms
Mid/HF - 16Ohm
Mid bass - 16Ohm
Power handling capacity (cont./ peak) - 480W/ 960W

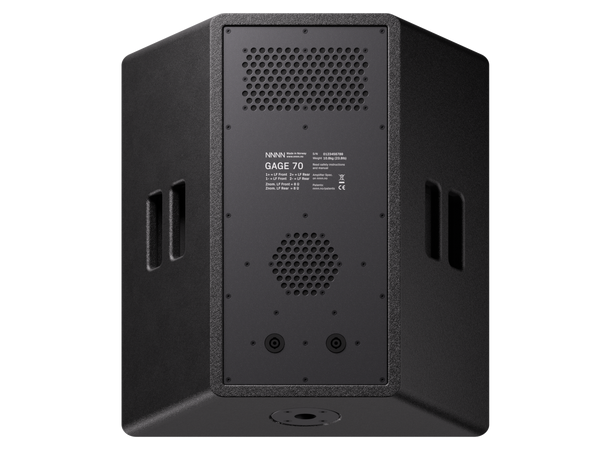

Connections - 2x SpeakOn 4 Pole

Dimensions / weight
Dimensions (H x W x D) - 650mm x 600mm x 250mm
Weight - 21.5kg
