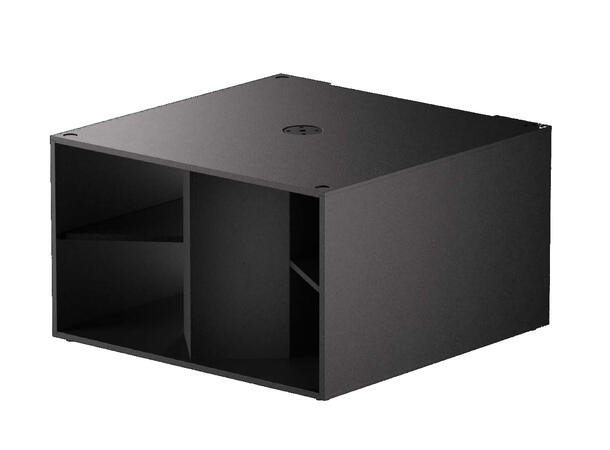

NNNN Avant 30 P

Horn Loaded Subwoofer

Compact performance
Avant 30 is designed to provide very high output relative to size, in a versatile, mobile form factor.

Horn loading
The horn loading mechanism enables high sensitivity, good impulse response, and a very low distortion level.
The basshorn bandwidth of more than three octaves provides an extraordinary physical experience. The sound has a punchy but smooth character.

Broad application areas
Features for stacking the subwoofer enable very powerful setups, as the horn principle will increase the efficiency of each unit in the stack as well as increase the frequency response below 30Hz.
Avant 30 is a versatile design acoustically and it can cover both the bass and mid-bass range, or whatever range between 30-300Hz. By having this flexibility it's possible to design high output setups with a reduction in complexity,
cabling and amp channels.

Specs:

• 21’’ horn loaded subwoofer
• Horn loaded to 30 Hz
• Compact and mobile form factor
• Stackable with pole mount
• Configuration: 1-way passive
• Frequency response: (±3dB) 30 Hz - 300 Hz
• Max. SPL (cont./ peak): (calc.) 134 dB / 140 dB
• Nominal dispersion: Louder in front
• Drivers: 1x 21’’
• Nominal Impendance: 8O
• Power handling: (Cont./peak) 1700 W / 3400 W AES
• Connections: 2x Neutrik speakON 4-pole
• Dimensions: 1000 x 580 x 1000 mm
• Weight: 88,5 kg kg
