dB Technologies IA3204D

IA3204R is a  2U rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as well as professional audio applications with 4 time 800W 4 ohms, fit for stereo or bridge configuration. Two versions are available: both are equipped with onboard DSP, full range PSU with Power factor correction and a GPIO interface, but they differ on the networking side.

In facts, IA3204R version comes with RDNet ports, and IA3204D with Dante ports, able to embed remote control and digital audio-in.

Technical Data

•Type: CLASS D 2 Unit rack Amplifier

Acoustical data

• Single channel mode: 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)
• Bridged mode: 8 Ohm / 16 Ohm
• Preset: Flat, dBTechnologies speaker, User preset
• Input Impedance: 20 kOhm balanced
• Frequency Response: 20 - 20.000 Hz

Amplifier

• Total rated power: 3200 W RMS @ 230Vac / 120Vac
• All channels driven:
• 4 Ohm: 1600W Peak / 800W RMS
• 8 Ohm: 800W Peak / 400W RMS
• 16 Ohm: 400W Peak / 200W RMS
• 8 Ohm (Bridge): 3000W Peak / 1500W RMS
• 70V: 1500W RMS
• 100V: 1500W RMS
• Mains connections: IEC 10A connector
• PFC: Yes
• Nominal Voltage: 115Vac - 240Vac @50/60Hz
• Operating Voltage: 90Vac - 264Vac @50/60Hz

Processor

• AD: 24 Bit @48kHz
• DA: 24 Bit @48kHz
• Limiters: Compressor on processing channels, Peak limiter on output channel (also used in dBTechnologies preset)


Input

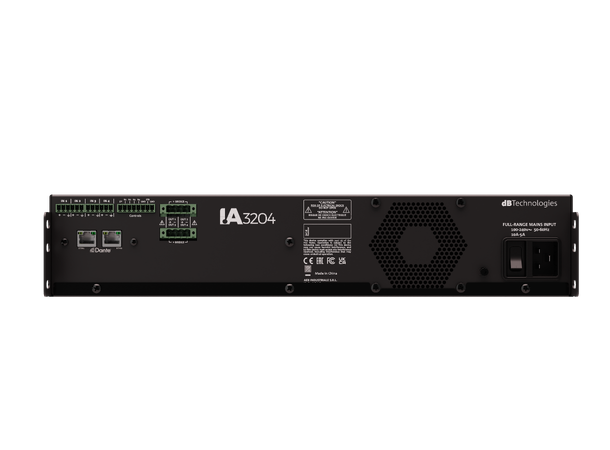

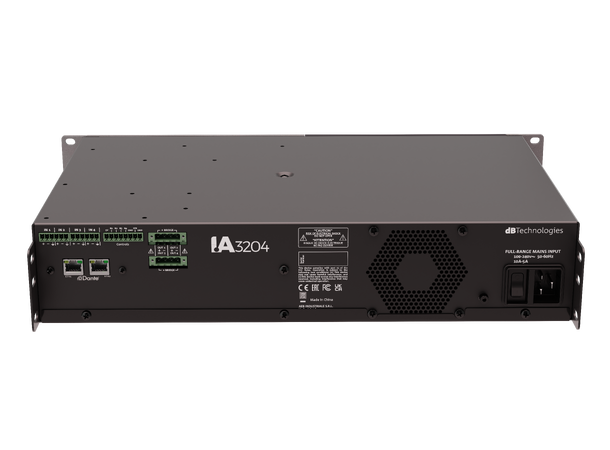

• Input Channel: 4 Analog Balanced (EuroBlock 3.81mm), 4 Dante Channels
• Output Channel: 4 (EuroBlock 5.08mm)

Service Data

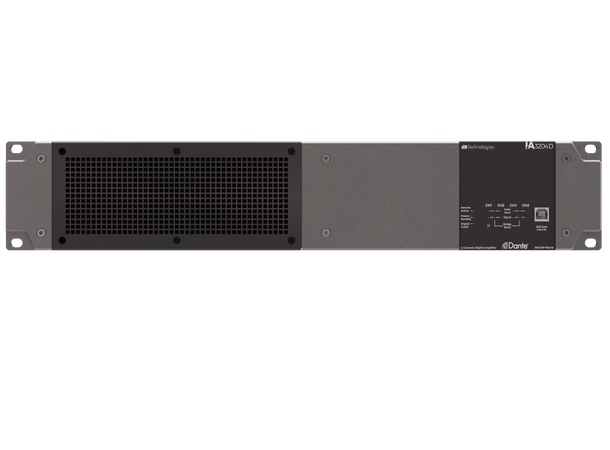

• Frontal USB: AuroraNet setup & control
• Networking: 2 x RJ45 RDNet (Dante Primary/Secondary AuroraNet setup & control)

Mechanics

• Width: 482 mm (19 in)
• Height: 88 mm (3.6 in)
• Depth: 310 mm (12.2 in)
• Weight: 8.3 kg (18.3 lbs)
