Powersoft T304

The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.

All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.

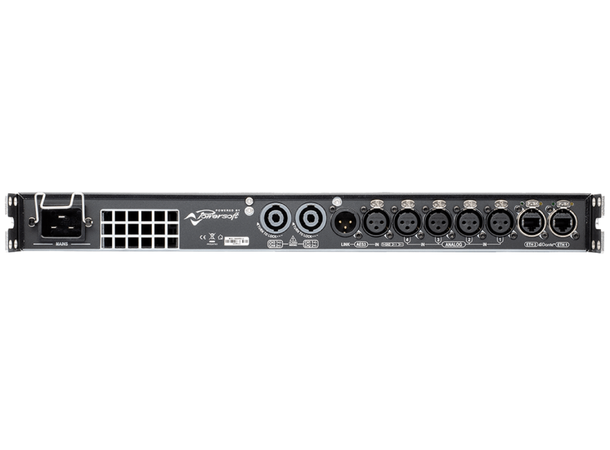

The amplifiers feature input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end and the amplifiers in-between.

MyPowersoft services are available for this product

Features

• The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
• Full control with a PC running Armonía.

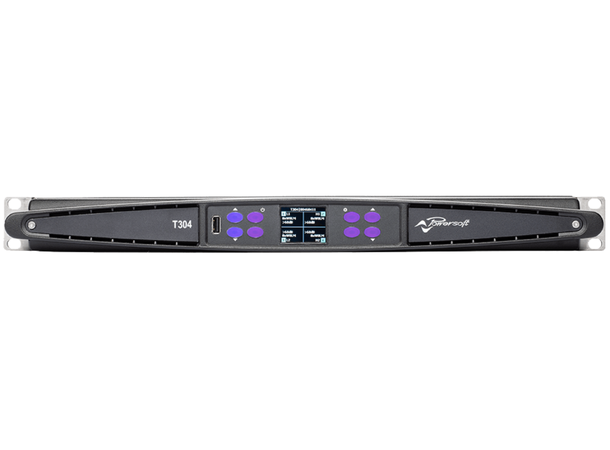

• Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
• Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
• Group controllable advanced EQ with raised cosine filters
• Large preset library
• Preset compatibility with X Series
• Very long FIR filters (42.6 ms)
• Control and monitoring through ArmoníaPlus

Specifications

• GENERAL
  Output power per channel 750W @ 2 O 750 W @ 4 O 750 W @ 8 O
  Bridge mode  1500 W @ 4 O 1500 W @ 8 O
  Max output voltage / current
  Max unclipped output voltage @8 O   145 Vpeak
  Current   50 Apeak

• AC MAIN POWER
  Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
  Nominal power requirement   100-240 V ±10%, 50-60 Hz
  Operating voltage   90 V – 264 V
  Power consumption/ Current draw
  1/8 of max output power @ 4 O  120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A

• THERMAL
  Thermal dissipation
  1/8 of max output power @ 4 O  120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h
