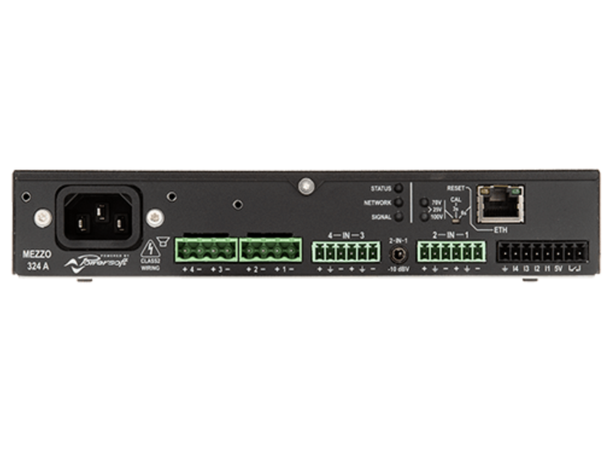

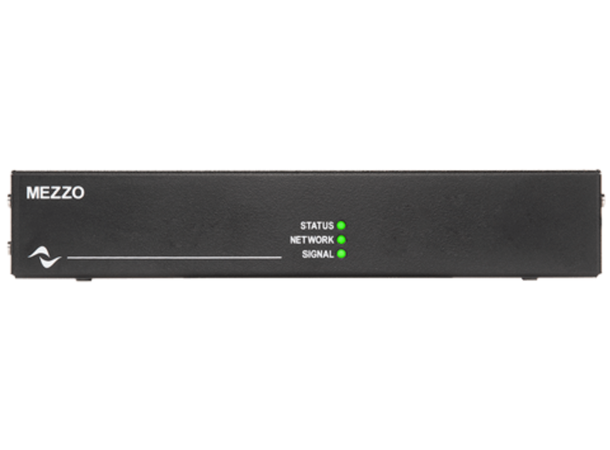

Powersoft Mezzo 324 A

Mezzo 324 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. The 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes.

MyPowersoft services are available for this product.

 Specifications

• GENERAL
  Output power per channel
  Output power per channel 80 W @ 2 O 80 W @ 4 O 80 W @ 8 O
  Maximum power-sharing capacity per channel 320 W @ 4 O 320 W @ 8 O
  Max output voltage / current
  Maximum unclipped output voltage 142 Vpeak
  Maximum output current 15.6 Apeak

• AC MAIN POWER
  Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
  Nominal power requirement   100-240 V ±10%, 50-60 Hz
  Operating voltage   90 V – 264 V
  Power consumption/current draw
  Idle  115 V: 15 W – 0.25 A 230 V: 16 W – 0.18 A
  1/8 of max output power @ 4 O  115 V: 76 W – 0.71 A 230 V: 78 W – 0.43 A

• THERMAL
  Thermal dissipation*
  Idle  115 V: 90 BTU/h 230 V: 54 BTU/h
  1/8 of max output power @ 4 O  115 V: 50 BTU/h 230 V: 102 BTU/h
