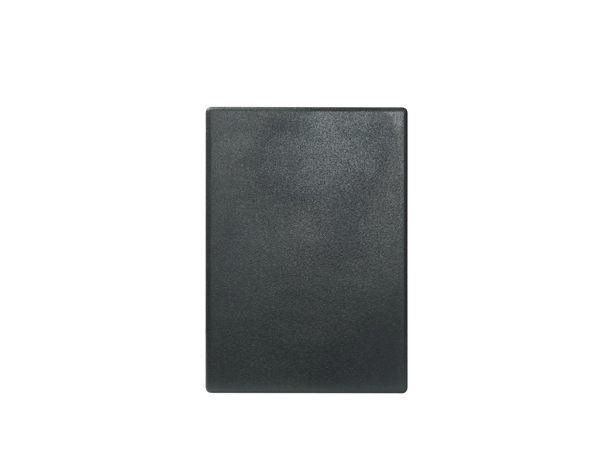

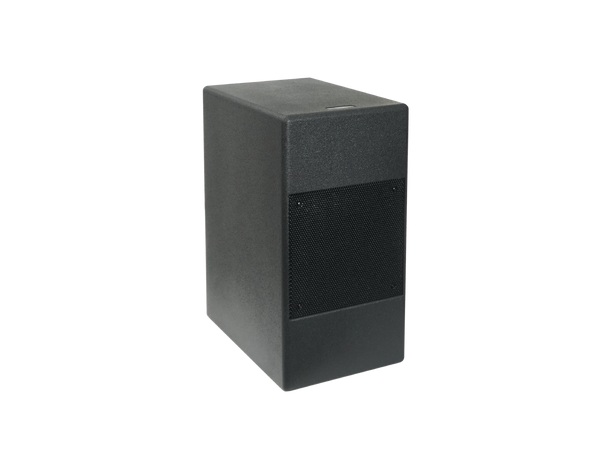

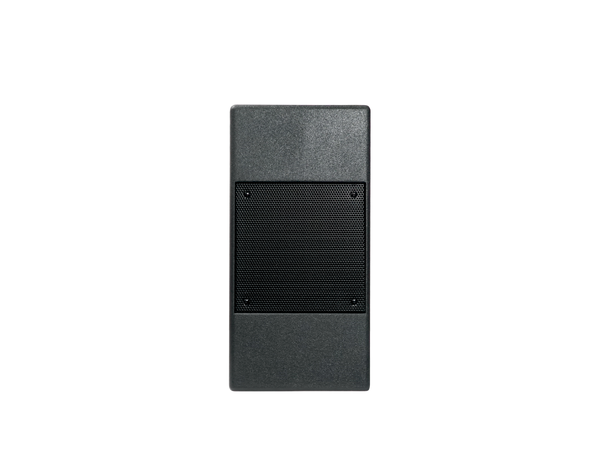

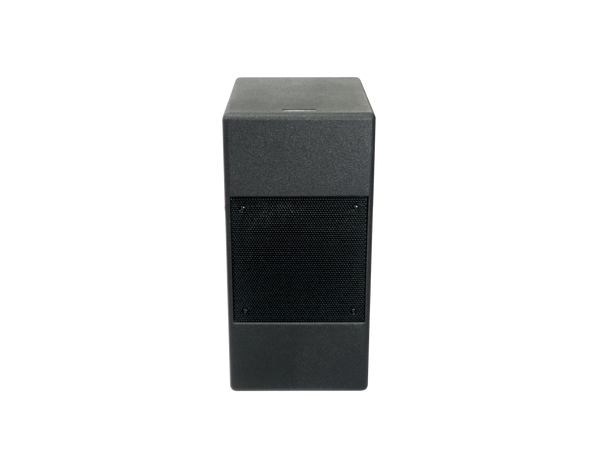

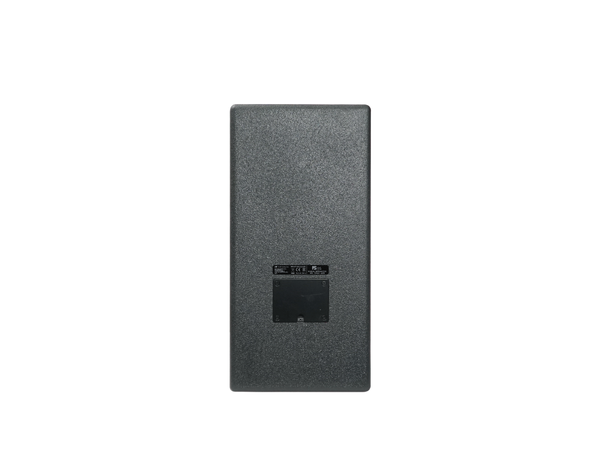

dB Technologies IS8S Black

Passive compact sub

Varenr: 119935
-+
1 på lager
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

dB Technologies IS8S



As for the lower end, IS series is comprised of two passive subwoofers, respectively equipped with a 1x8" or a 1x12" woofer.
The compact size of both boxes is ideal when it comes to integrate a low-end extension cabinet in a venue, without dragging too much attention to it.

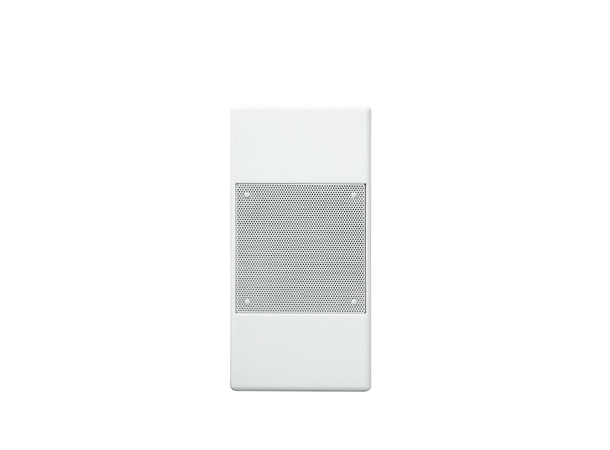

Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design, Phoenix connectors, black or white version.



Technical Data


Speaker Type - Passive Subwoofer

Acoustical data

RMS Power - 200 W
Peak Power - 800 W
Frequency Response -  [-6 dB]50 Hz - custom LPF
Impedance - 8 Ohm
Sensitivity  - 1W@m87 dB
Max SPL - 116 dB
LF1x 8", 2" v.c.

Input

Connections - Phoenix

Mechanics

Housing - Plywood, water-painted coating
Rigging points - 16x M8 pickup point
IP rating - IP 32

Width 230 mm (9.1 in)
Height 470 mm (18.5 in)
Depth 330 mm (13 in)
Weight10 kg (22 lbs)

Teknisk info

Produktinformasjon

- Tilkoblinger (Pluggtype HW) Euroblock / Phoenix / Terminal block
