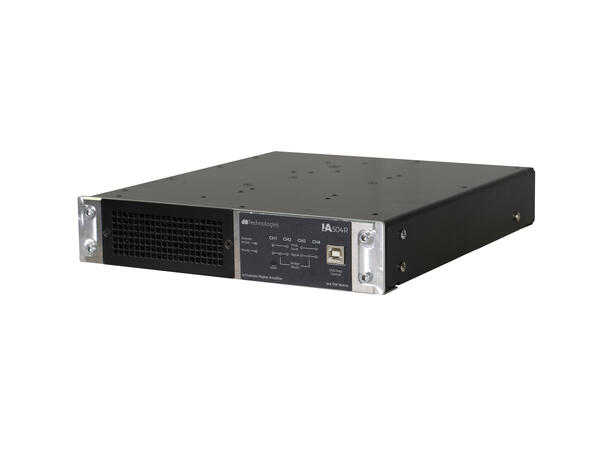

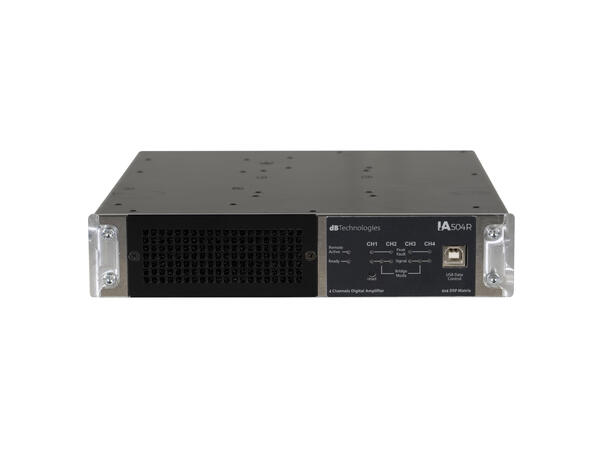

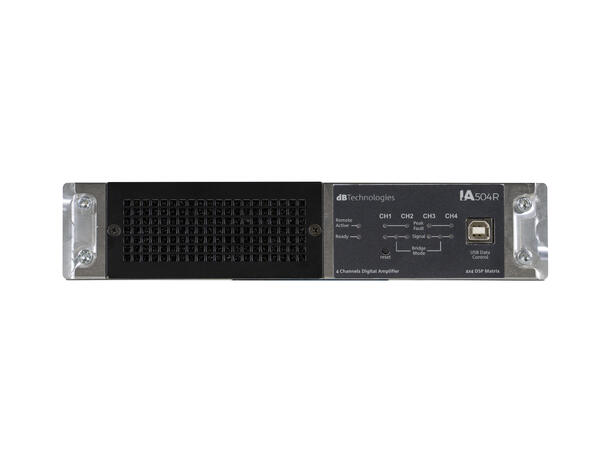

IA504 is a half rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as
well as professional audio applications with 4 time 125 W 4 ohms, fit
for stereo or bridge configuration.
Two versions are available: both are
equipped with onboard DSP, full range PSU with Power factor correction
and a GPIO interface, but they differ on the networking side.
Two versions available:
IA504R version comes with RDNet ports

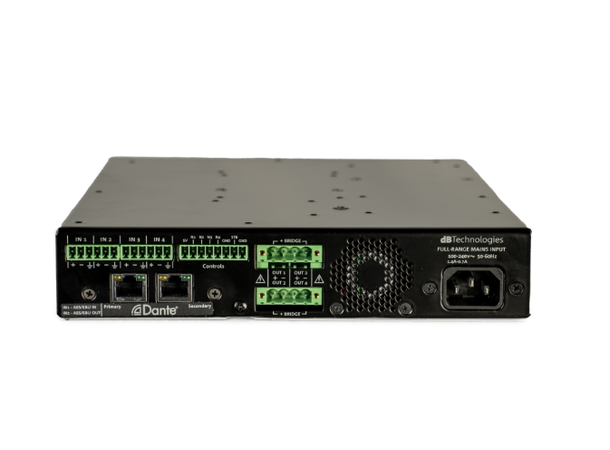

IA504D with Dante ports, able to embed remote control and digital audio-in.
Technical Data
Type: CLASS D Half-rack Amplifier
Acoustical data
Single channel mode: 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)
Bridged mode: 8 Ohm / 16 Ohm
Preset: Flat, dBTechnologies speaker, User preset
Input Impedance: 20 kOhm balanced
Frequency Response: 20 - 20.000 Hz
Amplifier
Total rated power: 280 W RMS @ 230Vac / 250 W RMS @ 120Vac
Single channel driven
4 Ohm: 425W Peak / 280W RMS
8 Ohm: 245W Peak / 245W RMS
16 Ohm: 135W Peak / 135W RMS
8 Ohm (Bridge): 619W Peak / 280W RMS
70V: 250W RMS
100V: 240W RMS
All channels driven
4 Ohm: 225W Peak / 70w RMS
8 Ohm: 180W Peak /70 W RMS
16 Ohm: 125W Peak / 70W RMS
8 Ohm (Bridge): 440W Peak / 140W RMS
70V: 140W RMS
100V: 140W RMS
Mains connections: IEC 10A connector
PFC: Yes
Nominal Voltage: 115Vac - 240Vac @50/60Hz
Operating Voltage: 90Vac - 264Vac @50/60Hz
Processor
AD: 24 Bit @48kHz
DA: 24 Bit @48kHz
Limiters
Compressor on processing channels
Peak limiter on output channel (also used in dBTechnologies preset)
Input
Input Channel: 4 Analog Balanced (EuroBlock 3.81mm)
Output Channel: 4 (EuroBlock 5.08mm)
Service Data: Frontal USB
(AuroraNet setup & control)
Networking
2 x RJ45 RDNet (AuroraNet setup & control)
Mechanics
Width: 222 mm (8.7 in)
Height: 44 mm (1.7 in)
Depth: 256 mm (10.1 in)
Weight: 1.82 kg (4.01 lbs)
