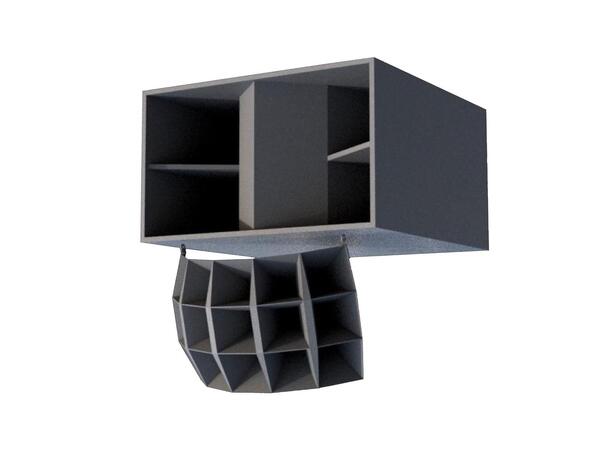

The club system is a 3 ways active system where each loudspeaker stack consists of one single 21” basshorns and a classic style wide dispersion multicell horn loaded with a modern coaxial high end compression driver. The coaxial compression driver ensures that the super tweeter experience is coherent with the mid range and the listeners will have a point source experience. The basshorn bandwidth of more than three octaves provides an extraordinary physical experience.

Preliminary Specifications:

Configuration - Active 3-way

Frequency response (3dB) - 30 Hz - 22 kHz

Max peak output (1m) - 148 dB*

Max output (1m) - 132 dB*

Nominal dispersion - 105°x 60°

Connections - Speakon 4-pole

Rigging - Ground stacked or flown

Width - 1008 mm / 39.7 in

Depth - 1008 mm / 39.7 in

Height - 1105 mm / 66.1 in

Weight - 130 kg

*Simulated

Powerhandling (RMS)

HF/supertweeter: 80W

Mid:  750W

Bass: 1700W

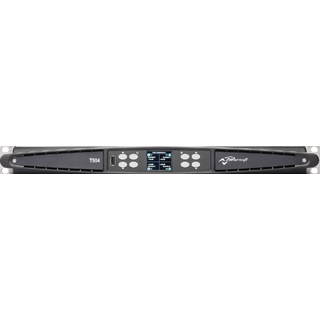

Amp recommendations - Powersoft

X-series - 1x X4 perstack or 1xX8 per pair

Unica-series - 1x 4L5K4 perstack

T-series - 1x T604 per stack
