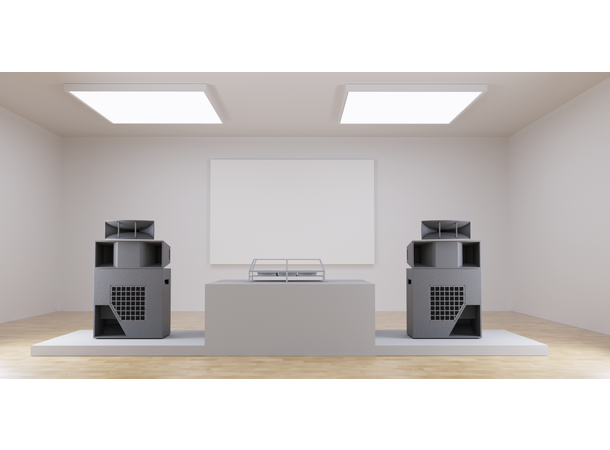

OJAS / NNNN ON7 CLUB SYSTEM

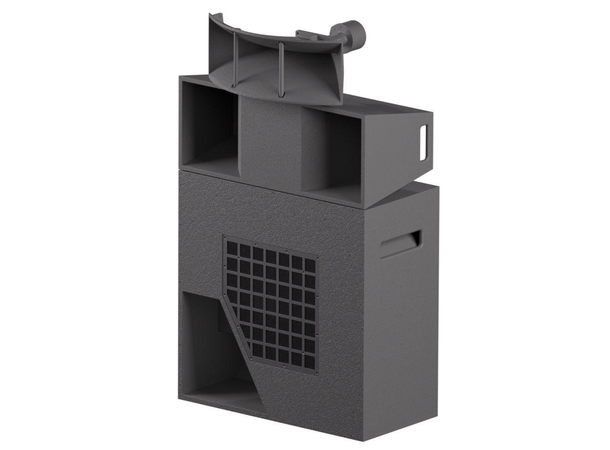

The club system is a 3 ways active system where each loudspeaker stack consists of a dual 12” bass horn, a
single 8” bass/low-mid horn and a classic style wide biradial horn loaded with a modern compression driver.

The system is designed with large overlap ranges so that a seamless system integration and optimized
dedicated ranges is achieved within each bandwidth.

The modern compression driver ensures that the high frequency experience is essentially without break up
modes and thus will be less fatiguing over time.

The mid-bass/low-mid excels in the kick region.

The bass horn moves a lot of air from 30Hz so even though this is a compact system it provides a physical
experience in a similar way to the larger systems.

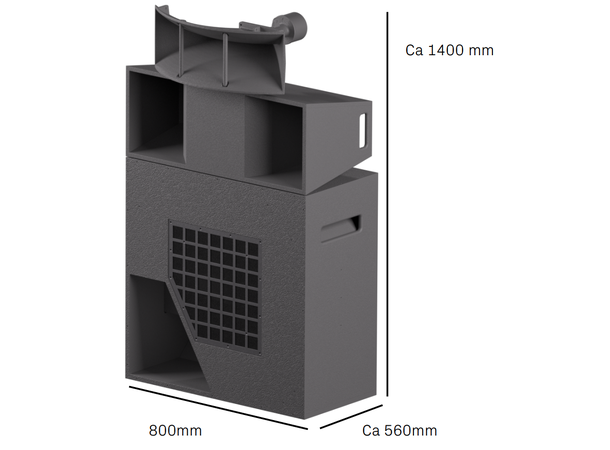

Specifications one loudspeaker stack:

Preliminary specifications:

Frequency response: 30Hz-20kHz
Nominal dispersion HxV: 90×40 degrees
Maximum output @1m: 130dB*
Maximum peak output @1m: 136dB*

Power handling RMS

HF: 50W
Bass/low-mid: 350W
Infrabass/bass: 1000W


*Simulated
