Chandler Limited Little Devil 500-Series EQ



The Little Devil EQ is a small package with a huge sound. It is a Chandlerized British console sound in a 500 package.

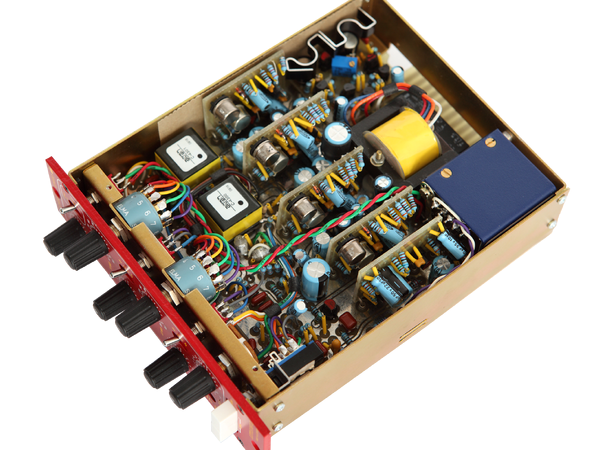

This Devil has all discrete circuits with custom transformers, an inductor-based EQ that modern gyrator circuits can’t touch, and a classic Baxendall tone control that is simply huge sounding! These units are all handmade using through-hole components and handwiring. We don’t use surface mount components which, in our opinion, lowers the quality. Chandler’s units are extremely high-quality made the way your favorite vintage units were made to preserve that special sound.



Little Devil EQ Technical Specifications



FORMAT: 500 Series



CHANNELS: Mono



CIRCUIT: Discrete, Inductor, Transformer Balanced

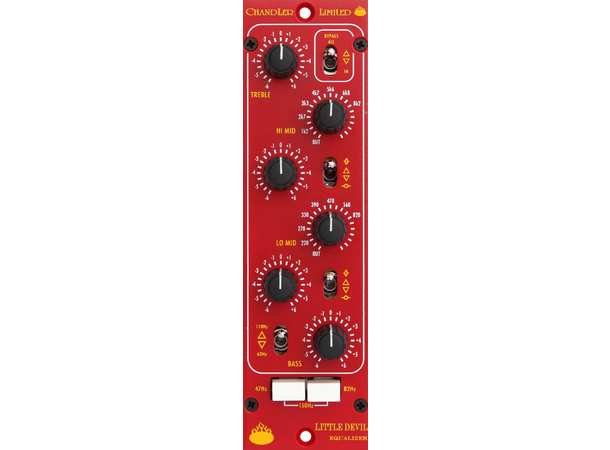

FREQUENCIES
TREBLE and BASS shelf +/-18db. Treble is set to 12k while Bass is selectable 50 and 110hz.
HI and LO MID +/-18db with HI and LO “Q” switching on each band.
HI MID – 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2.
LO MID – 820, 560 470, 390, 330, 270, 220.
THREE POSITION FILTER – 47, 82, and 150hz.



BYPASS: Hardwire



CONNECTIONS
I/O: 500 Series Enclosure





    “Been using them both (compressor and EQ) and I really love the tone. Man you can’t beat hand made hardware. The units look great and are built like tanks . . . Instantly you could hear the tone of the hardware, it was a beautiful thing.”



    –James Lugo
