RB 500

Pultec style EQ in your 500 series rack.

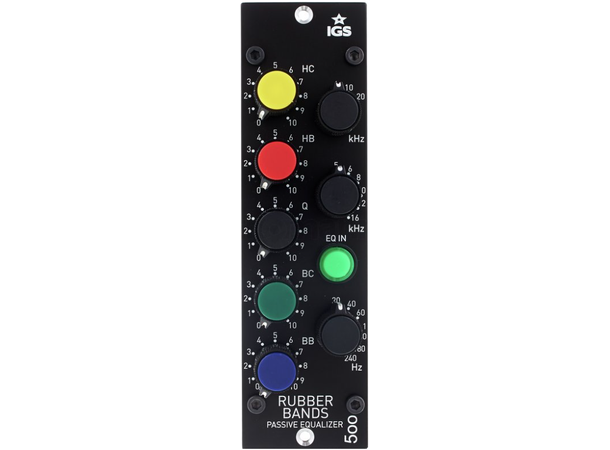

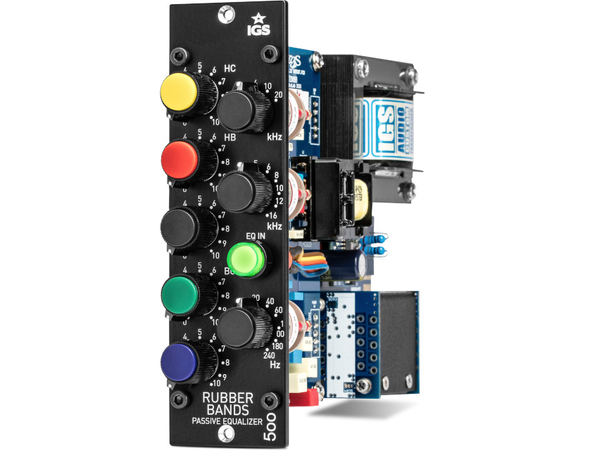

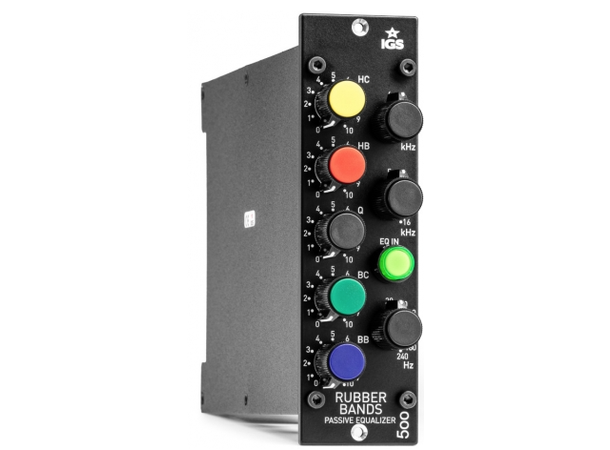

Rubber Bands 500 is a passive equalizer absurdly reduced in size. This tiny module is equipped with transformer balancing on input and output (IGS Custom) as well as a discrete driver circuit. Of course, the entire filtering section is passive and mirrors analog equalizers from the 60s. There is a separate frequency selector for low boost/cut sections. And you get the true bypass switch as a bonus!

SPECIFICATIONS:

BASIC FEATURES

• Q factor 0.5 - 4
• Boost/Cut Range +/- 15 dB
• Hard wire bypass
• All stepped manipulators, Frequency selectors


INPUT & OUTPUT

• Input Impedance (balanced) 1k ohm
• Output Impedance (balanced) 600 ohm, IGS Custom transformer
• Audio transformers Yes, IGS Custom


LEVELS

• Operating Level +4 dBu
• Max input level +20 dBu
• Max output level +22 dBu
• Noise Level -99 dBA


BANDWIDTH

• Frequency response 5 Hz to 20k Hz, +/- 0.1 dB
• DISTORTION (@ 20 HZ - 20 KHZ)
• THD+N 0.012%


POWER

• Power consumption 3.5W


PACKING BOX

• Shipping weight 1kg
