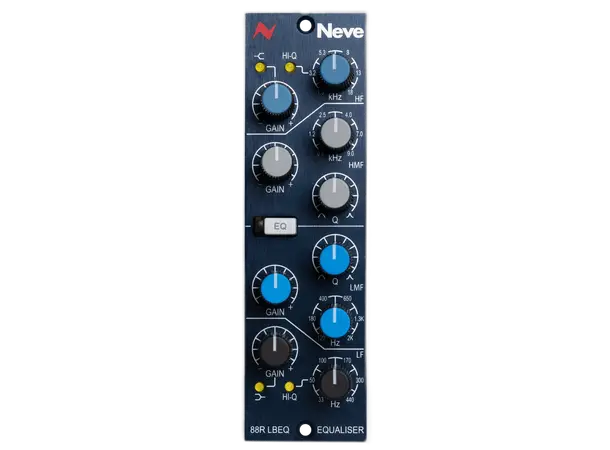

AMS NEVE 88R LBEQ

The Definitive 88RS EQ

The 88R LBEQ delivers genuine 88RS equalisation in a compact, high performance 500 series module.

The 88R LBEQ packs the acclaimed equalisation heritage of Neve’s flagship console designs into a compact, single-module 500-series format. Drawing on the revered circuitry of the 88RS analogue EQs, it delivers the musical precision, transparency, and control demanded by modern engineers and producers.

General Specification

• True Neve 88RS 4-band Parametric Equaliser circuit
• 500-Series form factor
• VPR Alliance Specification


Audio Performance

• Headroom: 27.2dBu @1kHz (0.1% THD)
• Distortion (THD+N): >0.004%
• General Noise: -88dBu (<-117dBu Bypassed)
• Frequency Response: > +/- 0.1dB
• Dynamic Range: >107dB
• Input Impedance: ˜24kO
• Output Impedance: ˜50O


Power Specifications?

• Max Draw: <145mA
• Surge: <145mA


Dimensions

• Height – 132mm (5.25 inches)
• Width – 38mm (1.5 inches)
• Depth – 145mm (5.75 inches)
• Weight – 0.57Kg (1.26 pounds)
