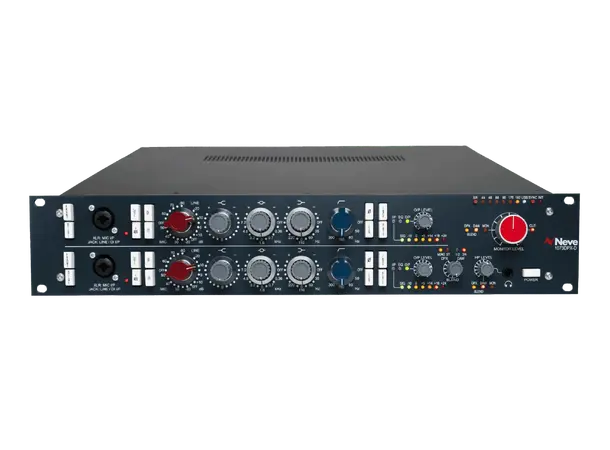

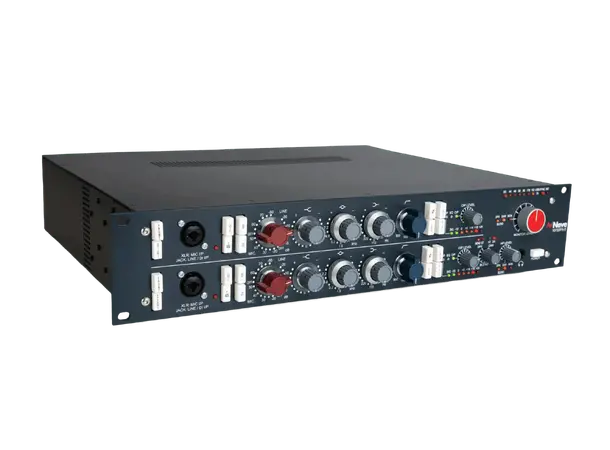

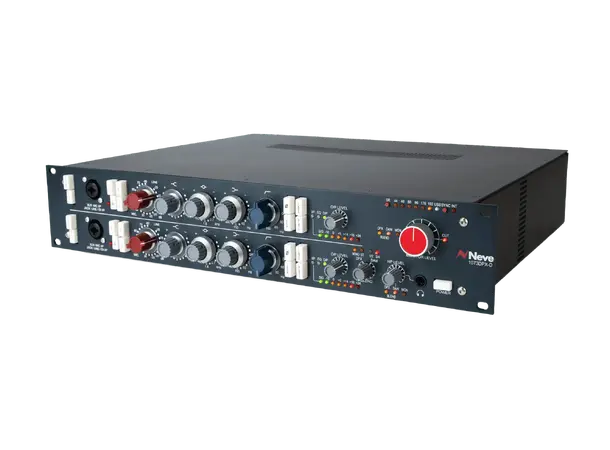

AMS NEVE 1073DPX-D

Classic Tone. Digital Workflow.

The 1073DPX-D is a dual 1073® channel strip with integrated USB/ADAT audio interface, bringing legendary analogue tone directly into the digital workflow.

The 1073DPX-D extends the legendary 1073 into the digital domain, combining dual-channel analogue signal paths with an integrated high-performance audio interface. With USB and ADAT digital connectivity, the unit functions as a versatile hub for recording, mixing, and monitoring, making it equally at home in professional studios, live rigs, and mobile recording setups.

General Specification

Genuine dual 1073 transformer-coupled microphone preamplifier / EQ circuit, in a dual 2U 19? rack-mount enclosure
2x Balanced Analogue Monitor XLR Line Outputs
1x Balanced TRS Headphone Output
8x ADAT Digital Inputs & 8x ADAT Digital Outputs via TOSLINK Connection
Exclusive Neve Marinair transformers used on input and output stages
USB 2.0 B -Type port for direct connection to Mac or PC
Class Compliant – Core Audio/ASIO
Front & rear Mic & Line inputs and front DI input
Switchable +48v Phantom Power, Hi/Lo impedance, -20dB pad and DI ground lift
Switchable Phase and EQ in/out
Pre/Post-EQ insert send/return loop
7-stage LED signal level meter –? mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
Output level control -inf>+5dB range
External multi-voltage PSU with locking 5-pin XLR Connection
Power – +/116Vdc 2A 230V 20mm & 48Vdc, 250mA 230Vm 20mm

Preamp Specification

• Microphone Input: Gain +80db to +20dB in 5dB steps.
• Line Input: Input impedance 10kO, gain +20dB to -10dB in 5dB steps
• DI Input: Input impedance 2M Ohms (PAD off) / 200K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps


EQ Specification

• High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz
• Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
• Mid Frequency: Smooth +/-18dB peaking, ?xed ‘Q’ with selectable centre frequencies of 0.36kHz, 0.7kHz 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
• High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz


Audio Performance

• Output: Maximum output is >+26dBu into 600O, transformer balanced and earth free.? – Output Impedance 75O @1kHz
• Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600O.
• Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
• Noise: -82dBu at all line gain settings (22Hz to 22kHz bandwidth)
• EIN: Better than -125dBu @ 60dB gain


Monitor Output Specification

• Maximum output level : +20dBu
• Headphone Output Specification: (600 Ohm load)
• Maximum output level : +14dBu
• Frequency Response: 10-30kHz +/- 0.1dB
• Distortion (THD +N): <0.005%
• Noise floor: -90dBu


A/D Specification

• Maximum input level : >+26dBu
• Dynamic Range: 119dB
• Noise (THD +N): <100dBFS
• Distortion: <0.002%


D/A Specification

• Maximum Output level: +26dBu
• Dynamic Range: 117dB
• Noise (THD +N): <91.5dBu
• Distortion: <0.001%


Dimensions

• Width: 480mm (19 inches)
• Height: 88mm (3.5 inches)
• Depth: 360mm (14.7 inches)
• Approx. Weight: 5.475kg (12.07 pounds)
