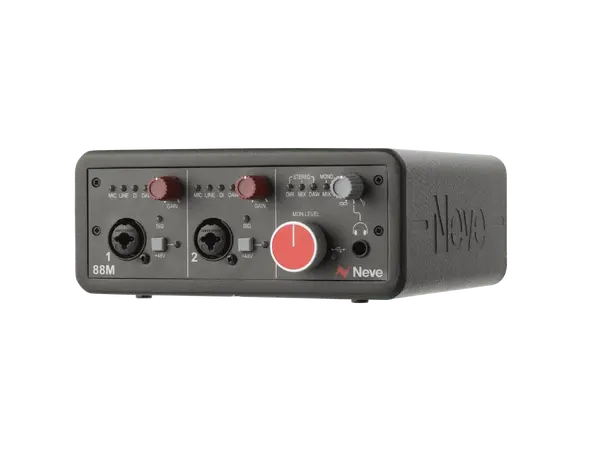

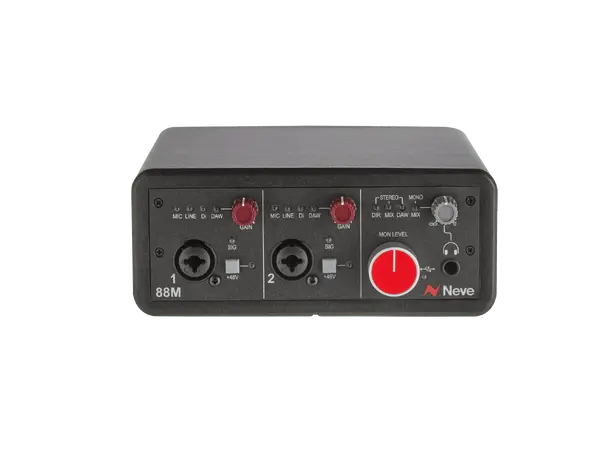

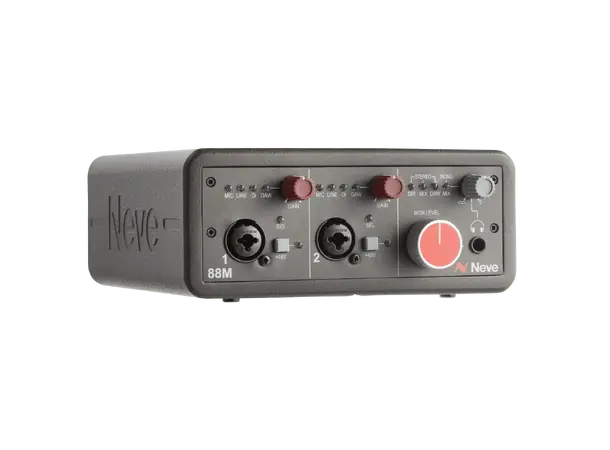

AMS NEVE 88M
Legendary Sound on your Desktop
Using the same transformer-balanced technology as Neve’s flagship large-format 88RS, the 88M brings the legendary sound of AIR, Abbey Road and Capitol Studios into your home and portable studio setup.
General Specification
- 2x Analogue Preamp Inputs (Mic/Line/DI)
- 2x Balanced Analogue Monitor TRS Line Outputs
- 1x Balanced TRS Headphone Output
- 8x ADAT Digital Inputs & 8x ADAT Digital Outputs via TOSLINK Connection

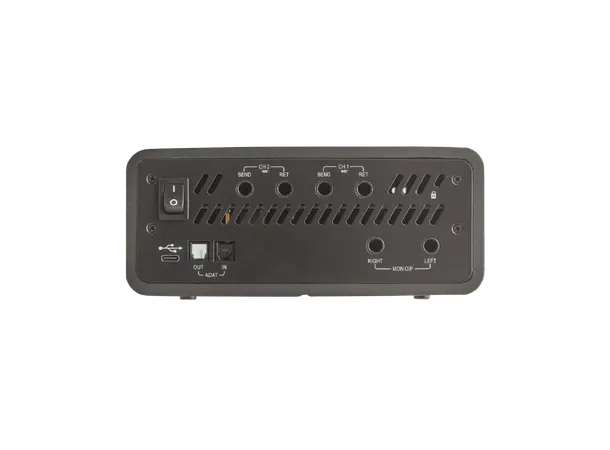

- Insert send and return loop

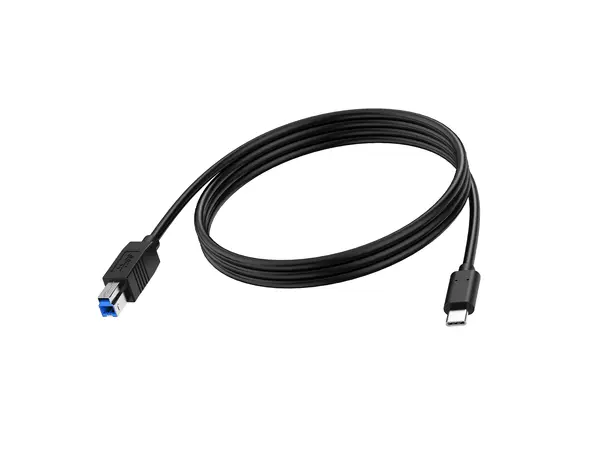

- USB 3.0 B -Type port for direct connection to Mac or PC
- Class Compliant – Core Audio/ASIO
- Headroom: +18dBu @ 1kHz (<0.5% THD+N)
- Distortion (THD+N): Typically 0.008% @ 1kHz (measured at +18dBu, 10Hz to 80kHz filter)
- General Noise: <-85dBu (A-wtg)
- Frequency Response (Mic/Line/DI): +/- 0.1dB 20Hz – 20kHz (+/- 0.5dB 10Hz – 35kHz)
- Voltage: USB3
- Current <900mA
Preamp Specification
- Microphone input impedance (balanced): 1.5k Ohms
- Microphone dynamic range: >110dB
- Microphone input gain range: +21dB to 68dB
- Line input impedance (balanced): 20k Ohms
- Line input dynamic range: >111dB
- Line input gain range: -12 to +35dB
- DI input impedance (balanced): 900k Ohms
- DI input dynamic range >100dB
- DI input gain range: +13dB to +60dB
Monitor Output Specification
- Maximum output level : +18dBu
- Dynamic range: >113dB
- Headphone Output Specification: (150 Ohm load)
- Maximum output level : +10dBu
- Frequency Response: 20-20kHz +/- 0.3dB
- Distortion (THD +N): <0.007% @10dBu 1kHz
- Noise floor: -96dBA
Dimensions
- Width: 182mm (7.2 inches)
- Height: 76mm (3 inches)
- Depth: 203mm (8 inches)
- Weight: 1.675Kg (3.7Lbs)
