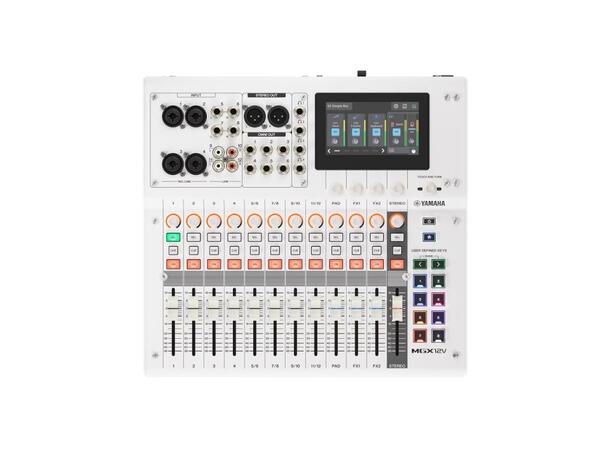

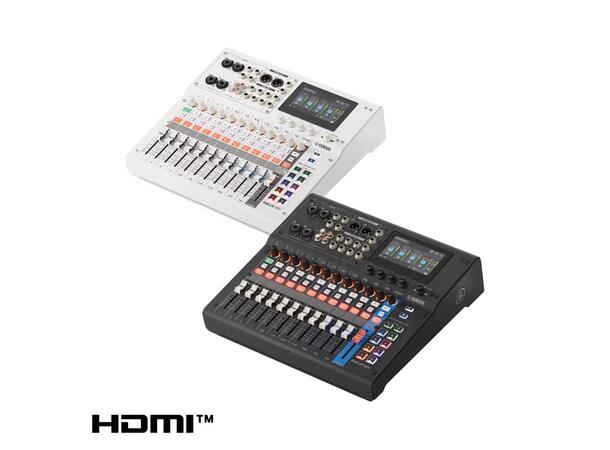

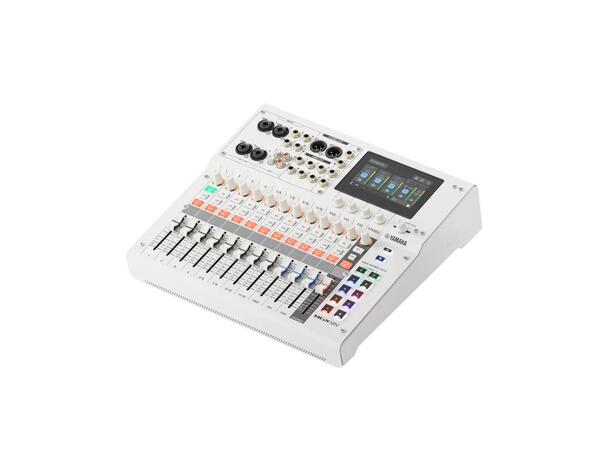

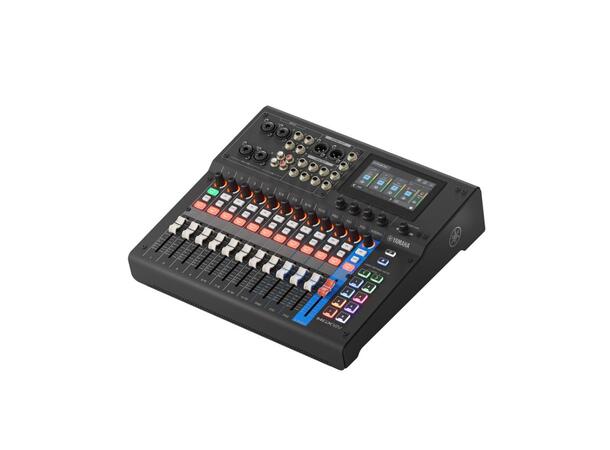

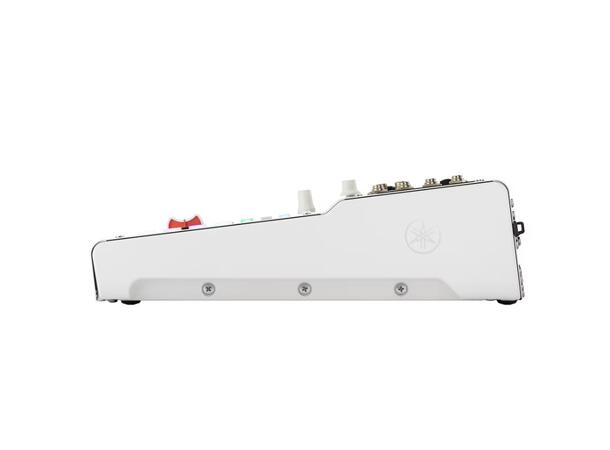

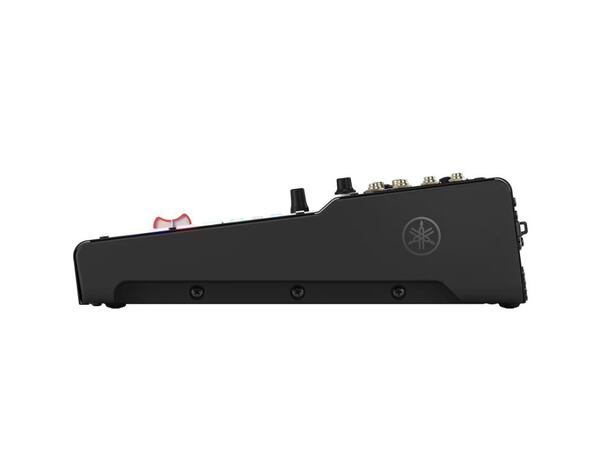

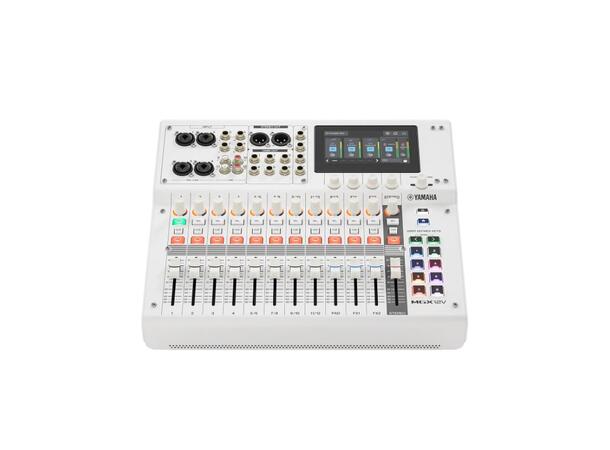

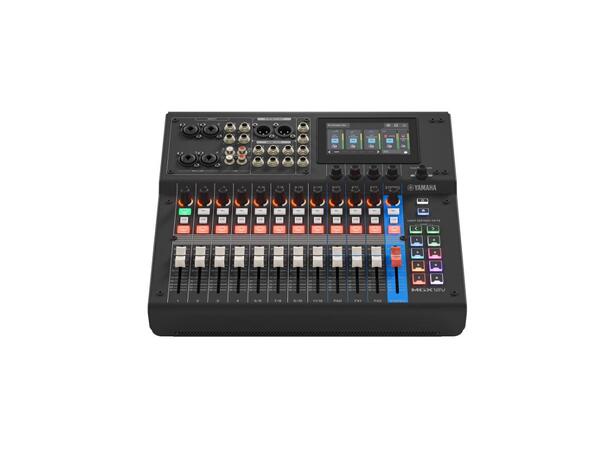

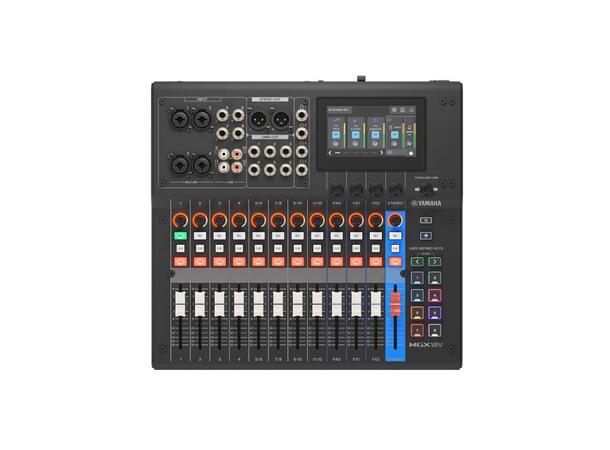

YAMAHA MGX12V

18-Channel Digital Mixing Console with Video Interface

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 11 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

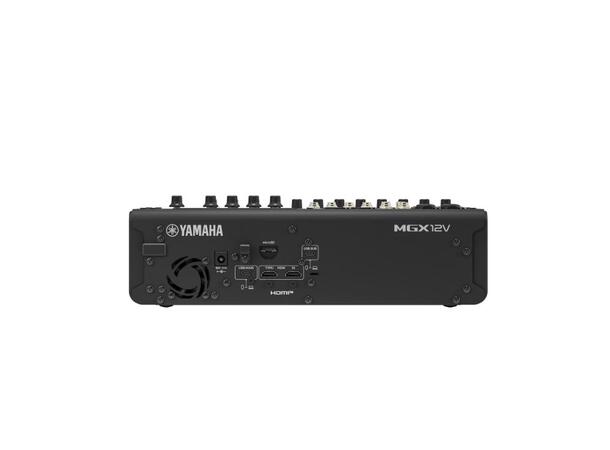

• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

The Digital Evolution of an Analog Classic

Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

In addition to the essential features and versatility you expect from a professional mixer, the MGX12V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

For content creators, sound engineers, producers, artists, and streamers—and especially for those producing podcasts with four participants—the four mic inputs and four headphone outputs, together with the ability to seamlessly integrate high-definition video into their workflow, opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX12V will elevate your production quality and captivate your audience.
