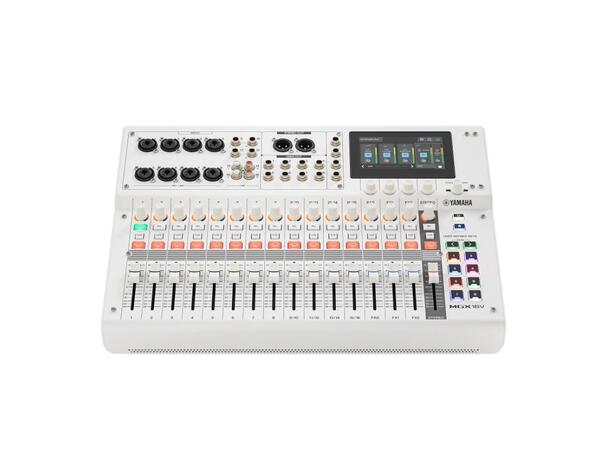

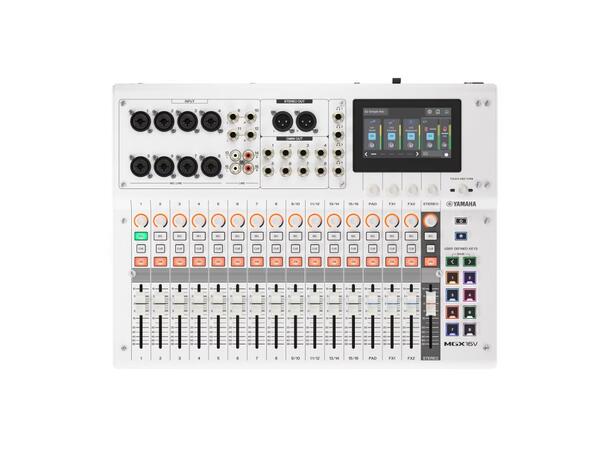

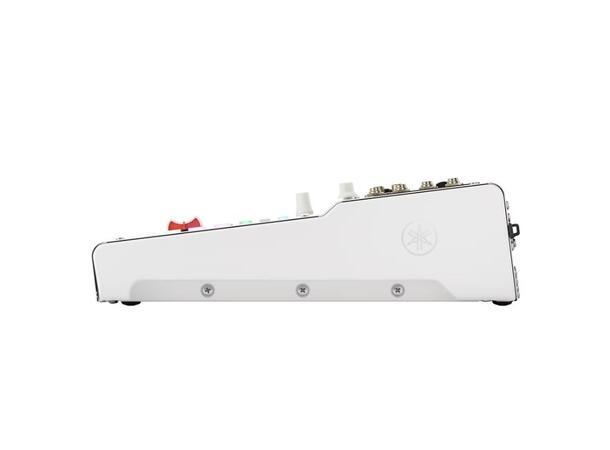

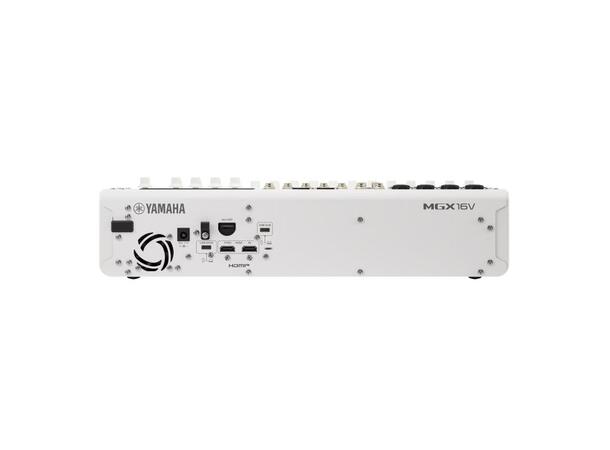

YAMAHA MGX16V

22-Channel Digital Mixing Console with Video Interface

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

The Digital Evolution of an Analog Classic

Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

In addition to the essential features and versatility you expect from a professional mixer, the MGX16V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

For content creators, sound engineers, producers, as well as artists and streamers, the ability to seamlessly integrate high-definition video into their workflow opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX16V will elevate your production quality and captivate your audience.
