Grace Design m108 DANTE - 8 kanalers fjernstyrbar mikrofonforsterker og AD konverter med DANTE kort
DAW system front end / simple 8X2 USB interface / remote recording / high-end sound reinforcement
From 25 years experience of creating acclaimed
professional audio products, comes the latest evolution of our mic
preamplifier design: the m108. With eight channels of our transparent,
musical mic preamplification, state of the art A/D conversion, multiple
digital output formats, and flexible local or remote controlled
operation, the m108 is a vital addition to any modern audio production
environment.
Unrivaled Performance
Based on the acclaimed success of our m802 remote
controlled mic preamplifier, the m108 distills the best of these
achievements into a sleek, elegant 1U chassis design. Our
transformerless, transipedance mic preamp design is unmatched in its
ability to effortlessly resolve complex sonic waveforms, resulting in
recordings of amazing clarity and depth. Integrated A/D conversion
delivers digital signals to the workstation that are pure and beautiful.
Latest generation s-Lock PLL ensures pristine, jitter free sample clock
when clocking from external word clock or Dante clock. And an
asynchronous mode USB interface provides the best possible jitter
performance when connected to a computer.
Simple Operation

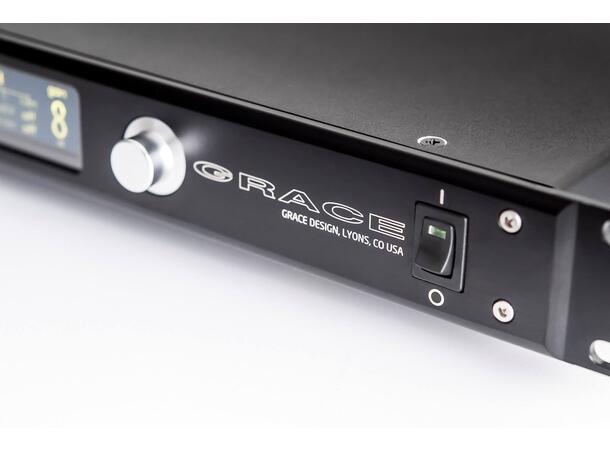

A push-button rotary encoder is used for navigating
and operation, with a user interface that is simple and intuitive.
Dedicated push-buttons are assigned to core functions: 48V phantom
power, phase reverse, channel grouping and meter peak clear. A crisp
OLED screen displays complete system information, including channel gain
settings, metering, peak status, and the system setup menu.
Powerful Configuration
Out of the box, the m108 is ready to go as a
stand alone mic preamp / ADC. With integrated serial or MIDI control,
the m108 can be confi gured in large channel-count remote systems, with
control from our existing m802 hardware remote control unit, from
Protools™, or our forthcoming m108 control computer utility. And an
optional DANTE™ interface is provided for network audio configurations.
The m108 control protocol is backward compatible with the m802 so you
can add m108’s to an existing m802 system.
• 8 channels of balanced analog preamp
outputs
• 8 channels of transparent, musical mic
preamplier
• Wide gain range: -8 to 74dB
• Ribbon mic mode
• 8 channels of 192kHz ADC outputs via
AES, ADAT and USB Class 2 /
External Word clock in and out
• Reference DAC and headphone amplier
for low-latency monitoring of channel
pairs or USB playback from a computer
• Channel 1 & 2 HI-Z inputs on front panel
• High contrast, wide viewing angle OLED
display for all system parameters and
setup menu

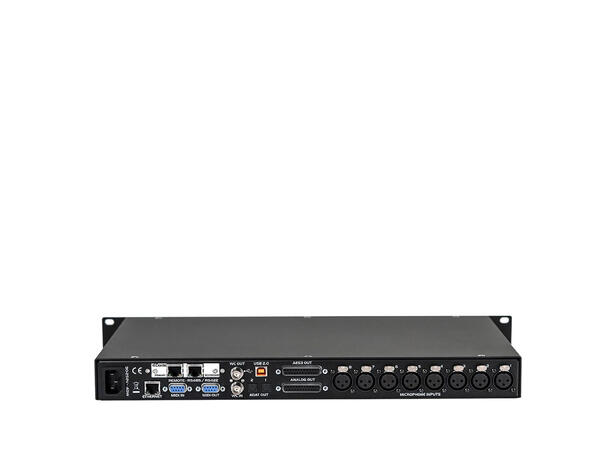

• Combination RS 485/422 serial / MIDI
ports for control from existing m802 RCU
or Protools™
• RJ45 Ethernet port for network control
• Expansion slot for optional Audinate /
DANTE™ network audio card
• Cooling fan for reliable operation in the
harshest environments
• Built in 100-240VAC universal AC power
supply
• 5 year transferrable warranty
• Made in the USA
