AMS NEVE 1073OPX

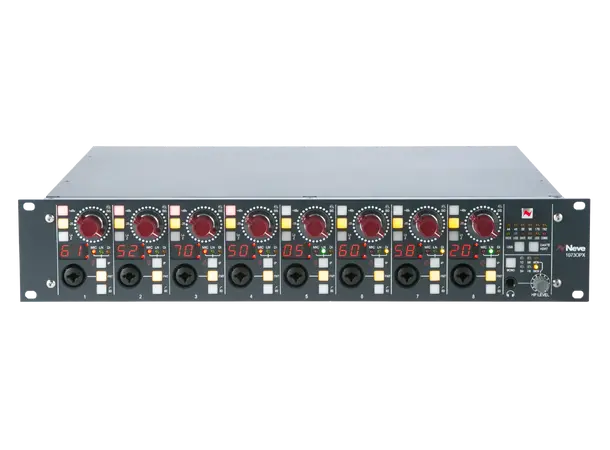

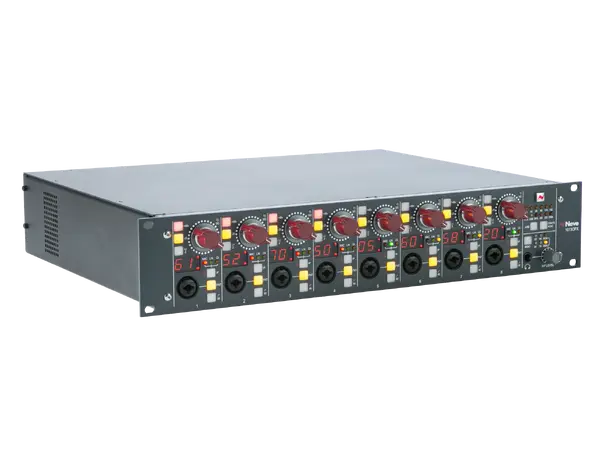

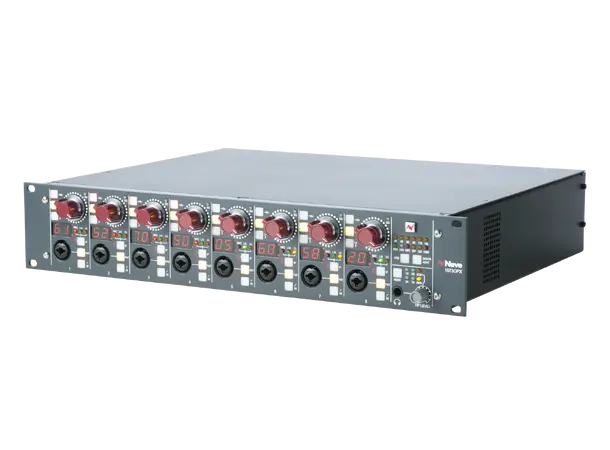

1073OPX UNIT FITTED WITH DANTE/USB OPTION
Packing eight 1073® remote-controllable preamps in a 2U rackmount case, the 1073OPX suits modern DAW-based workflows, where space is at a premium, whilst also offering that 1073 sound everyone knows and loves. It’s the Swiss Army knife for modern studios.
The groundbreaking 1073OPX optional digital card provides premium AD/DA conversion up to 192kHz for all eight preamps, plus a stereo digital monitor return. For professionals looking to connect to a Dante audio-over-IP network, dual ethernet ports allow for redundancy via primary and secondary connections or for home studio users the class-compliant USB 2.0 connection transforms the 1073OPX preamp into a complete studio audio interface.
General Specification
8 Channels of remote-controlled 1073® Mic/Line/Instrument Preamplifiers.
Exclusive Neve® Marinair® transformers on Microphone input.
Class-A transformer-less DI input
Remote control software can control up to eight 1073OPX racks at a time (64 preamps!)
Automatic Total Recall™ of all settings.
Front Mic/Line combi input

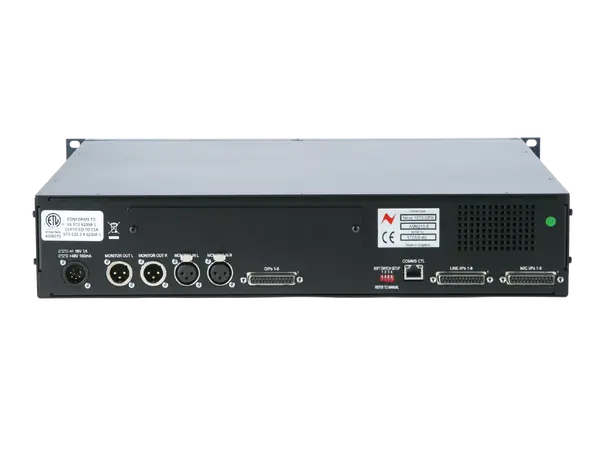

Rear Mic/Line D-Type connection
80Hz High pass filter
-25dB pad
Phase flip
Smart Phantom Power control
Hi/Lo Impedance selector from 300O to 1.3KO
Separate stereo monitor path with Independent level control
Latency-free monitoring of all signal sources
Eight front D.I inputs for instrument tracking
Front-mounted Headphone output
Heat Dissipation 40 Watts
Input voltage range 90-240V

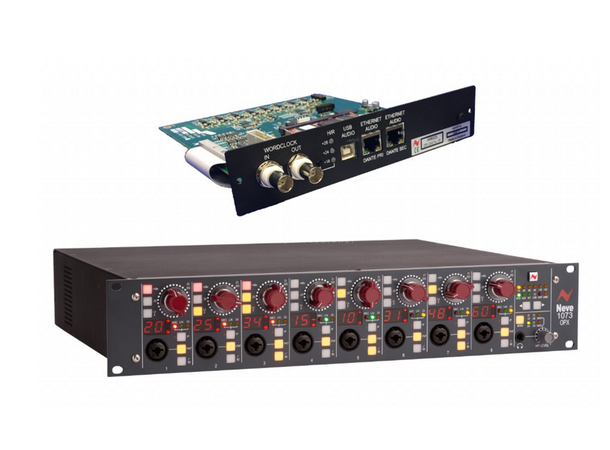

Digital Card (optional add on/ in bundle) General Specification
USB connection for use as standalone primary audio interface/core audio device.
Dante Primary and Secondary connection for Audio-over-IP application.
Word Clock Sync In/Out
Selectable Headroom from +18, +24, +26dB
Audio Performance
Headroom: >+26dBu @ 1kHz (<0.5% THD+N)
Frequency Response: Typically +/-0.15dB, 20Hz to 20kHz
Distortion (THD+N): Typically 0.002% @ 1kHz (measured at +20dBu, 10Hz to 80kHz filter)
General Noise: <-85dBu (20Hz to 22kHz filter)
Mic EIN Noise: Typically -125dBu (20Hz to 20kHz)
Microphone Inputs: Input Impedance ˜300O or ˜1.3kO (PAD out). Transformer coupled. Gain 20dB to 70dB in 1dB steps
Line Inputs: Input Impedance ˜10kOBridging(PAD out). Gain -20dB to +20dB in 1dB steps
DI Inputs: Input Impedance >650kO. Transformer-less Class A Gain 30dB to 60dB in 1dB steps
AD/DA Card Specification
Dimensions
Height: 89mm/3.5 inches (2U)
Width: 484mm/19.05 inches (19? rack)
Depth: 360mm/14.17 inches
Weight: 7.8Kg
