dB Technologies IS26T-WP Black

IS26T-WP is a full-range 2-way passive speaker with two 6.5'' woofers and a 1'' compression driver for the high range.
Compact, with a high linear response, IS26T-WP offers maximum sound pressure and condenses the best of the dBTechnologies acoustic experience in the most versatile solution of the entire IST-WP range.
The model is characterized by two different coverage options: a standard constant dispersion of 60x90° or a 100°x15° pattern, which, thanks to the waveguide, easily transforms IS26T-WP from a point source to a line array system.
Benefiting from all the main features of the series, such as invisible mounting points and IP55 protection, this professional passive solution uses the concept of maximum versatility, allowing dozens of different configurations achievable with the accessories of the VIO X206 system.
IS26T-WP retains the minimal design of the entire series, with the possibility of customizing the color finish of the white version by yourself.

The IS-26T-WP is available in two distinct versions, each offering a different constant directivity horn to suit various installation needs:

• IS-26T-WP 100x15 – featuring a 100° (horizontal) x 15° (vertical) dispersion pattern for wide coverage in horizontal deployments.
• IS-26T-WP 60x90 – offering a 60° (horizontal) x 90° (vertical) dispersion for focused projection and vertical mounting scenarios.

In both versions, the horn is rotatable, allowing maximum flexibility in adapting the dispersion to the installation requirements.


Technical Data

Speaker Type:

• Passive 2-way Speaker

Acoustical data:

• RMS Power: 250 W
• Peak Power: 1000 W
• Frequency Response [-6 dB]: 80 Hz - 20,000 Hz
• Impedance: 8 Ohm
• Sensitivity 1W@m: 94 dB
• Max SPL: 124 dB
• HF: 1x 1", 1.7" v.c.
• LF: 2x 6.5", 1.7" v.c.
• IS26T Dispersion: 60x90° (rotatable horn)
• IS26T100 Dispersion: 100x15° (H x V)
• X-Over Frequency: 1200 Hz (internal X-Over)

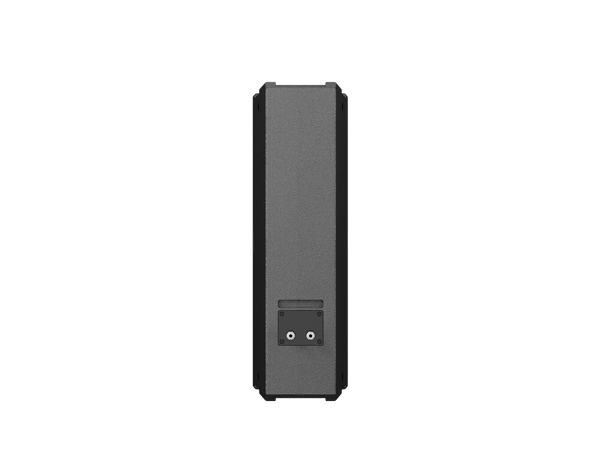

• Input Connections: Screw terminal block (IN+ | IN- | OUT+ | OUT-)

  Mechanics:
• Housing: Plywood, polyurea finish
• Rigging points: 2x M10 threaded nut (top and bottom)
• IP rating: IP 55

  Dimensions:
• Width: 210 mm (8.3 in)
• Height: 650 mm (25.6 in)
• Depth: 270 mm (10.6 in)

  Weight:
• 15.5 kg (34.17 lbs)
