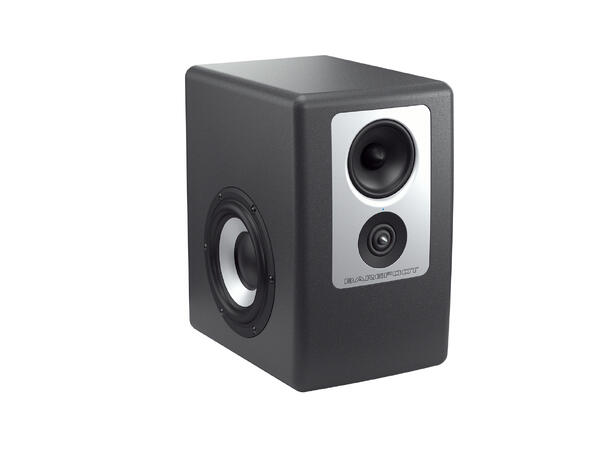

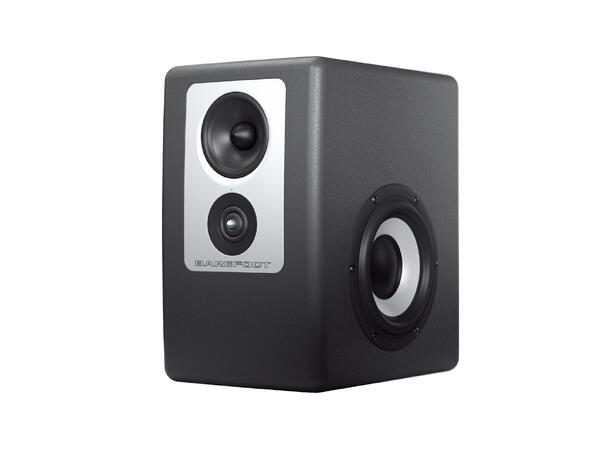

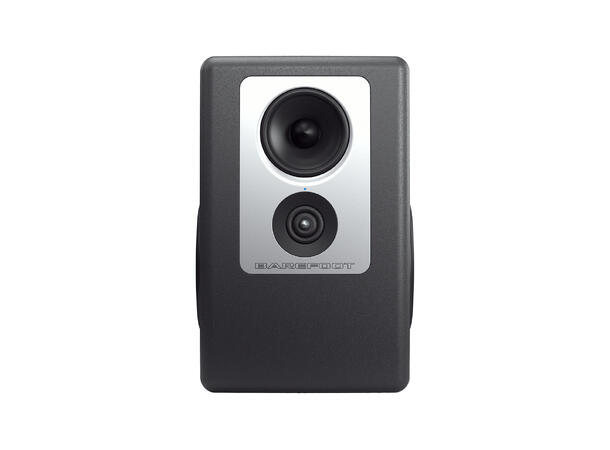

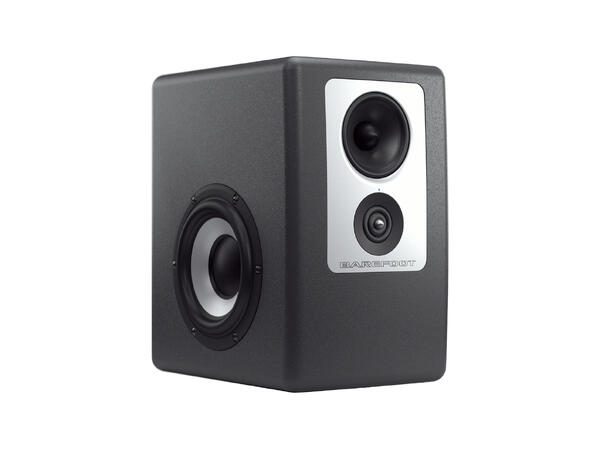

The Footprint®02 Gen2 continues the evolution of Barefoot Sound’s acclaimed monitor lineup, delivering the same high-performance DNA as the flagship models in a more compact and accessible form. While the original Footprint®02 carved out its place as the mid-sized solution in the Footprint® series, the Gen2 takes things further with reengineered drivers, updated DSP, and refined cabinet acoustics, all designed to offer stunning accuracy and sonic integrity in smaller studio spaces.

Like its larger sibling, the Footprint®02 Gen2 features a fully tri-amplified 3-way system with dedicated Class D amplification for each driver. A powerful 1-inch dual-ring radiator tweeter, a precision-engineered 5-inch aluminum cone midrange, and dual 6.5-inch aluminum cone Dual-Force™ Technology woofers work together to deliver seamless crossover transitions, improved transient response, and high output with minimal distortion. Each component has been upgraded for enhanced linearity, deeper low-end extension, and sharper midrange clarity, making the Gen2 ideal for mixing, mastering, and immersive setups where space efficiency matters.

At the core of the Footprint®02 Gen2 is Barefoot’s patented SPOC™ (SPectrally Optimized Conversion) Technology, which places analog filtering ahead of digital conversion for improved signal-to-noise ratio, greater resolution, and more transparent high-frequency reproduction. Combined with a new low latency DSP engine, the result is more precise imaging, extended bass, and accurate real-world translation.

The cabinet design has also been refined with increased internal volume, optimized damping, and enhanced rigidity, all housed in the signature sealed MDF enclosure finished in Barefoot’s iconic textured gray coating. This rugged, elegant design ensures clean, tight low-end performance without the artifacts often introduced by ported systems.

The Footprint®02 Gen2 also features Barefoot’s MEME™ (Multi Emphasis Monitor Emulation) Technology, enabling you to instantly switch between multiple reference speaker types from consumer speakers to vintage mix cubes without changing your monitoring position.

Whether you’re building a stereo setup or crafting a compact immersive system, the Footprint®02 Gen2 delivers flagship Barefoot performance in a space-efficient form factor. With its unmatched balance of power, precision, and size, it stands as the ideal middleweight solution in the Footprint® series.

• Tri-amplified 3-way Monitor
• 410 watts of power per monitor
• Frequency Response:38Hz – 40kHz
• MAX SPL: Continuous =111dB
• Crossover Frequencies 180 / 3700 Hz
• 6.5? Dual-Force™ aluminum cone woofers
• 5? Aluminum cone midrange
• 1? Dual ring radiator tweeter
• MEME™ Technology Voice Emulation
• SPOC™ Technology
• Dims 13.54? L x 9.12? W x 12.45? D

The Footprint®02 Gen2 introduces redesigned drivers powered by a tri-amplified Class D architecture for maximum precision, clarity, and power. With less than 0.005% THD at full output, the system delivers seamless crossover performance and pristine, well-balanced sound across the entire frequency spectrum.

DUAL-RING TWEETER
The 1” dual ring radiator tweeter features a powerful magnet and motor system for longer excursion, higher output, and reduced compression, delivering dynamic and detailed performance. An improved heat-sink ensures stable operation during extended use, while copper shorting rings minimize distortion for pristine accuracy. Its fabric diaphragm, aluminum housing, and solid face plug add rigidity and resonance control, and neodymium technology enhances clarity and fidelity. Powered by a dedicated 60W amplifier.

ALUMINUM CONE MIDRANGE
The Footprint®02 Gen2 5” midrange driver employs an aluminum cone for rigidity and resonance control, improving audio fidelity. A larger high-sensitivity motor with copper shorting rings reduces harmonic distortion for clean, accurate sound. With extended excursion and an advanced motor system, the driver delivers higher output with minimal compression, while an improved heat-sink ensures reliable performance. Powered by a dedicated 150W amplifier.

DUAL-FORCE™ WOOFERS

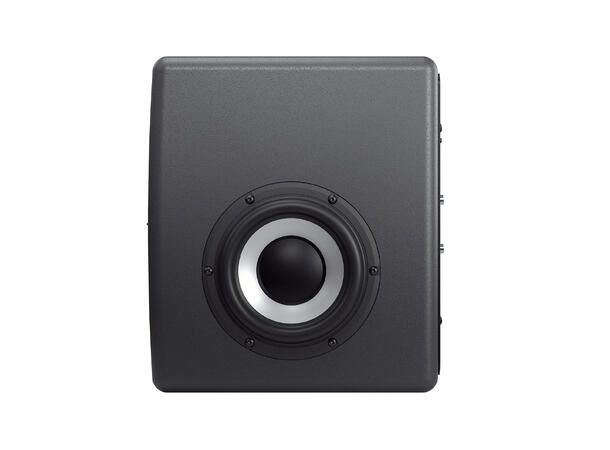

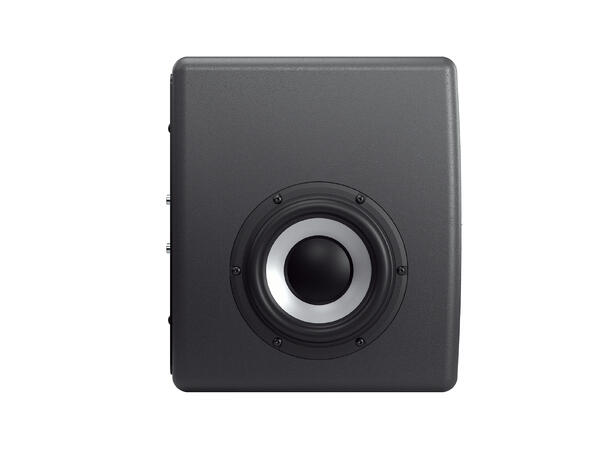

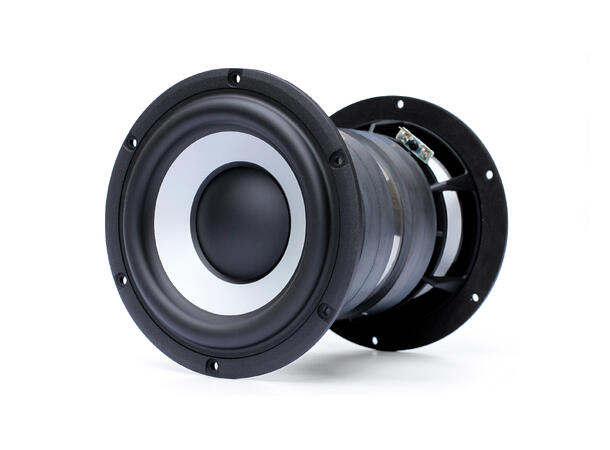

At the core of the Footprint®02 Gen2’s low end are dual 8” aluminum woofers mounted in rugged cast frames. Using Barefoot’s Dual-Force™ Technology, they cancel vibrations and reinforce cabinet rigidity, producing controlled bass down to 38 Hz. Powered by Class D amps delivering 200W total, their advanced motor design with copper shorting rings and extended excursion maintains clarity at high levels. A new heat-sink system ensures consistent performance in demanding sessions.

SECOND IN COMMAND
As Barefoot Sound continues to evolve the acclaimed Footprint® series, the Footprint®02 Gen2 stands out as a key pillar in the lineup. Introduced as the second model in the series, the Footprint®02 has consistently bridged the gap between flagship power and compact studio practicality. Now reimagined as the Gen2, it delivers even greater clarity, output, and DSP precision, offering the same core Barefoot performance as the top-tier models in a more space-conscious form factor. Slightly smaller and more affordable than the original Footprint®01, the Footprint®02 Gen2 remains the second largest and second most powerful monitor in the series, making it an ideal choice for professionals who demand no-compromise monitoring without the footprint of a flagship.

The series began with the Footprint®01, which set the benchmark for the “affordable Barefoot” concept with full-range clarity and massive headroom. The Footprint®03 followed as the most compact and cost-effective option, featuring a ported design perfect for immersive and space-limited environments. Rounding out the family is the Footprint®03C, developed as a dedicated center channel but now widely used in stereo systems due to its balanced response and versatility. With the Gen2 updates to both the Footprint®01 and Footprint®02, Barefoot Sound reaffirms its commitment to delivering elite-level precision across every size and studio need.

TECHNOLOGY

SPOC™
SPOC™ (SPectrally Optimized Conversion) is Barefoot’s patented technology that revolutionizes the analog-to-digital conversion process. By incorporating an analog crossover stage before conversion, SPOC™ allows high frequencies to reach the converter without attenuation. This approach increases resolution by the equivalent of 5 bits, resulting in a 15 dB improvement in signal-to-noise ratio. Exclusive to Barefoot monitors equipped with SPOC™, this innovation preserves critical high-frequency detail, enhances clarity, and ensures a more transparent signal path. The outcome is superior resolution and accuracy, setting the Footprint®02 Gen2 apart from any other monitor in its class.

DSP
The Barefoot Sound Digital Signal Processor (DSP) in the Footprint®02 Gen2 is at the heart of this cutting-edge technology. DSPs play a critical role in enhancing and optimizing audio signals, elevating the listening experience to unparalleled heights. With a remarkable latency of an impressive 3 ms, this DSP ensures a near-instantaneous response, eliminating any perceptible delay for seamless audio reproduction. By optimizing the drive level, the DSP enhances the low-end frequency response, delivering deeper and more impactful bass. Additionally, distortion is significantly reduced, allowing for enhanced clarity and sonic accuracy. This enables audiophiles and professionals alike to experience every nuance of the sound with pristine detail.

AMPLIFIERS
The Footprint®02 Gen2 features three Class D amplifier modules, each dedicated to a specific driver. A 60-watt amplifier powers the tweeter, a 150-watt amplifier drives the midrange, and a 200-watt amplifier energizes the Dual-Force™ woofers. Together, these amplifiers deliver precise power distribution, ensuring seamless crossover transitions and full-range clarity. With total harmonic distortion (THD) below 0.005% at maximum output, the system achieves exceptional fidelity, maintaining optimal signal levels for each driver and producing accurate, powerful sound reproduction.

MEME™ TECHNOLOGY

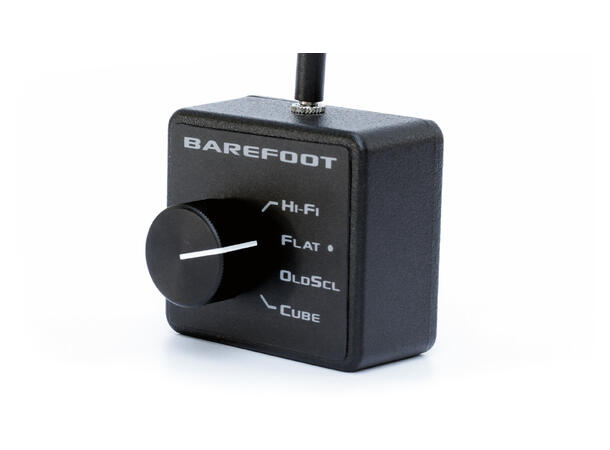

The Footprint®02 Gen2 features Barefoot’s legendary MEME™ (Multi Emphasis Monitor Emulation) Technology, giving you multiple monitoring perspectives in one system. Instantly switch between Hi Fi mode for inspiration, FLAT mode for precision, or authentic emulations of classic mix cubes and iconic white coned studio monitors.

Unlike simple EQ curves, these voicing profiles capture the true character of legendary reference speakers, letting you hear exactly how your mix will translate. By combining these options into a single pair of monitors, MEME™ saves space, streamlines workflow, and adapts seamlessly to studios, mobile rigs, playback rooms, and home environments, delivering both accuracy and inspiration at the push of a button.

CABINET DESIGN
Footprint01 Cabinet Design

The Footprint®02 Gen2 features a sealed cabinet constructed from medium-density fiberboard (MDF), with full acoustic damping throughout and stress-assembled design for added rigidity. The internal volume of 9.4 liters is tuned to optimize dispersion and transient response, while the rugged polyester gray textured finish completes its professional studio aesthetic.

MOUNTIING MADE EASY
Achieving an optimal multi-channel studio setup is effortless with the Footprint®02 Gen2 monitors, thanks to their seamless compatibility with premium mounting solutions from Triad-Orbit and König & Meyer. Designed for compact Atmos mixing rooms, these monitors deliver exceptional precision and clarity, enhancing the acoustic experience in smaller studios while allowing for easy, versatile installation.

SPECS:

Description: Tri-amplified 3-way studio monitor

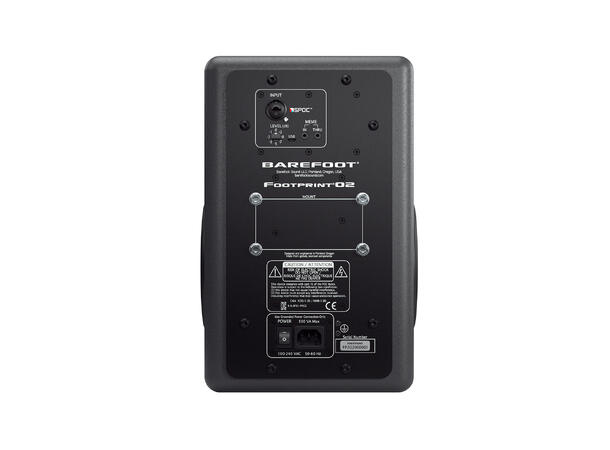

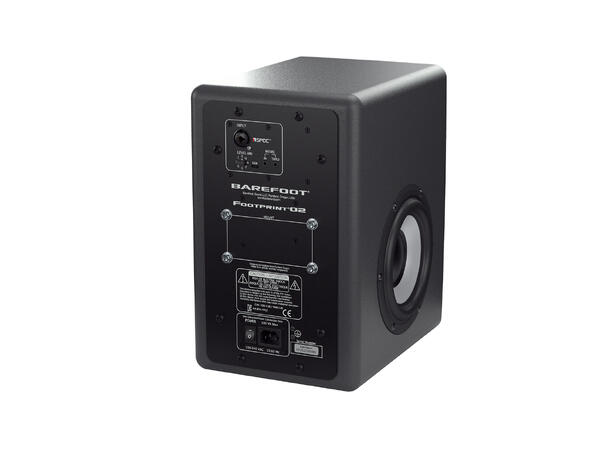

Controls: Input level stepped attenuator, MEME™ voice select
Analog Input: XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital Conversion: Word Length: 28-bit (56-bit High Precision)
Sample Rate: 96 kHz
Signal/Noise = 100 dB
Frequency Response: 38Hz – 40kHz (±3dB), 42Hz – 30kHz (±1dB)
Bass Response: -3 dB @ 38 Hz
Q = 0.560, Slope = 18 dB/octave asymptotic
MAX SPL: =111dB
Cabinet: 9.4L total internal volume
Sealed box, machined aluminum driver baffle, tensioned bracing. Polyurethane acoustic damping throughout
Crossover Frequencies: 180 / 3700 Hz (Active crossover between drivers)
Tweeter: 1-inch dual-ring radiator, low distortion motor,
rear waveguide chamber
Midrange: 5-inch aluminum cone, high magnetic flux motor +/- 3.5 mm linear excursion
Woofers: Dual 6.5-inch aluminum cones,- high magnetic flux motors
HF Amplifier: 60W
MF Amplifier: 150W
LF Amplifier: 200W
Power: Mains Voltage Input: 100 VAC to 240 VAC universal
Idle Power Consumption = 35W
Maximum Power Consumption = 500W
Weight: Speaker: 34.8 lbs (15.8 kg) each
Dimensions HxWxD: 13.54? x 9.12? x 12.45? in (344 mm x 232 mm x 316 mm)
