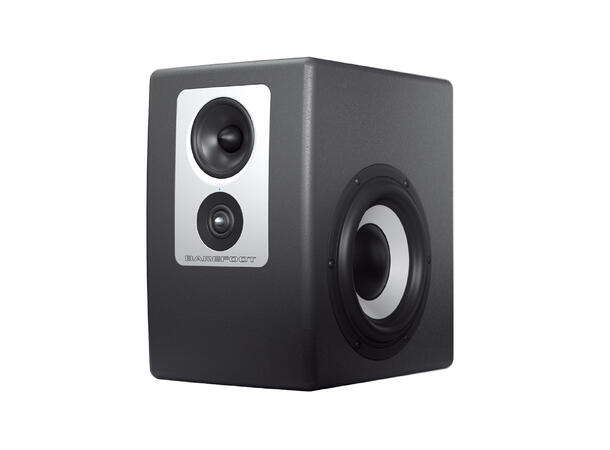

The Footprint®01 Gen2 is a complete reinvention of one of Barefoot Sound’s most acclaimed monitors, redesigned from the ground up to deliver even greater precision, power, and transparency. While the original Footprint®01 set a high standard for compact professional monitors, the Gen2 surpasses it in every meaningful way, both technically and sonically. This next generation model introduces a fully tri-amplified 3-way architecture, providing dedicated Class D amplification for each driver to ensure optimal performance, headroom, and efficiency across the frequency spectrum.

At the heart of the Footprint®01 Gen2 is a suite of newly developed Barefoot drivers, including a 1-inch dual ring radiator tweeter, a 5-inch aluminum cone midrange driver, and dual 8-inch aluminum cone woofers integrated into the cabinet using the proprietary Dual-Force™ Technology coupling system. Engineered for extended linear excursion, reduced distortion, and improved transient response, these custom drivers deliver tighter imaging and a more revealing soundstage.

The new DSP platform features SPOC™ (SPectrally Optimized Conversion), Barefoot’s patented technology that introduces analog crossover filtering before digital conversion, preserving high frequency detail and significantly improving signal to noise ratio. This allows the Gen2 to achieve higher resolution, improved clarity, and ultra low latency for an unmatched mixing and monitoring experience.

To support all this technological advancement, the cabinet itself has been acoustically refined with increased internal volume, optimized bracing, and enhanced damping, housed in a sealed enclosure with a sleek industrial finish. Together, these innovations make the Footprint®01 Gen2 not just a worthy successor but a truly next level monitor that brings flagship performance to a wider range of studios and creators.

Whether you’re mixing in stereo or building a 7.1.4 immersive studio, the Barefoot Sound Footprint®01 Gen2 delivers elite performance in a footprint that’s right-sized for today’s production environments. It’s the perfect fusion of next-generation engineering, real-world versatility, and Barefoot’s legendary sonic signature.

• Tri-amplified 3-way Monitor
• 710 watts of power per monitor
• Frequency Response: 36 Hz–40 kHz
• MAX SPL: Continuous =113dB
• Crossover Frequencies 170 / 3600 Hz
• 8? Dual-Force™ aluminum cone woofers
• 5? Aluminum cone midrange
• 1? Dual ring radiator tweeter

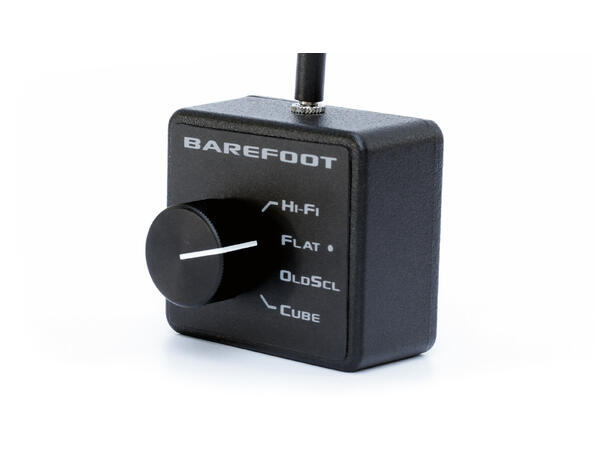

• MEME™ Technology Voice Emulation
• SPOC™ Technology

DRIVERS REIMAGINED

The Footprint®01 Gen2 introduces redesigned drivers powered by a tri-amplified Class D architecture for maximum precision, clarity, and power. With less than 0.005% THD at full output, the system delivers seamless crossover performance and pristine, well-balanced sound across the entire frequency spectrum.

DUAL-RING TWEETER

The 1” dual ring radiator tweeter features a powerful magnet and motor system for longer excursion, higher output, and reduced compression, delivering dynamic and detailed performance. An improved heat-sink ensures stable operation during extended use, while copper shorting rings minimize distortion for pristine accuracy. Its fabric diaphragm, aluminum housing, and solid face plug add rigidity and resonance control, and neodymium technology enhances clarity and fidelity. Powered by a dedicated 60W amplifier.



ALUMINUM CONE MIDRANGE

The Footprint®01 Gen2 5” midrange driver employs an aluminum cone for rigidity and resonance control, improving audio fidelity. A larger high-sensitivity motor with copper shorting rings reduces harmonic distortion for clean, accurate sound. With extended excursion and an advanced motor system, the driver delivers higher output with minimal compression, while an improved heat-sink ensures reliable performance. Powered by a dedicated 150W amplifier.

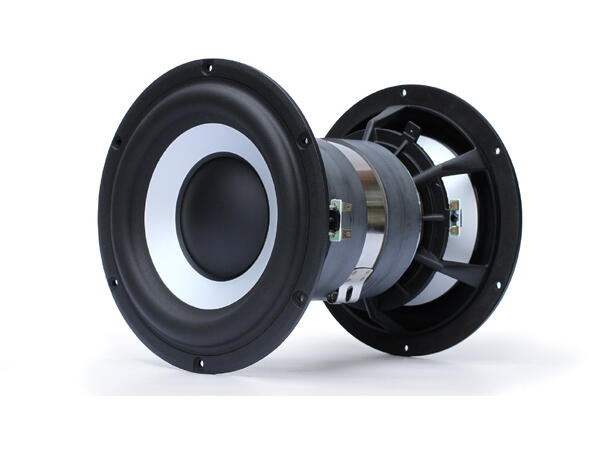

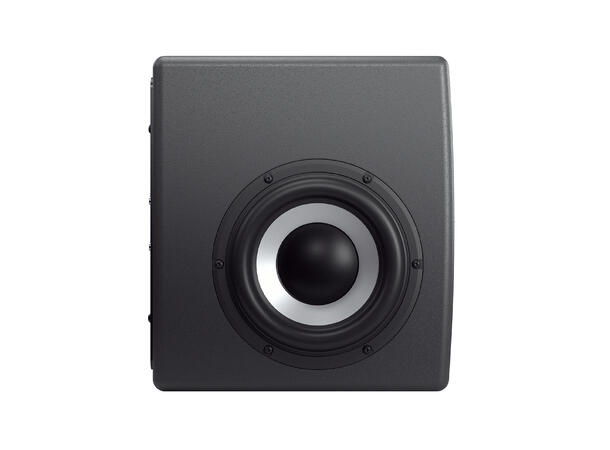

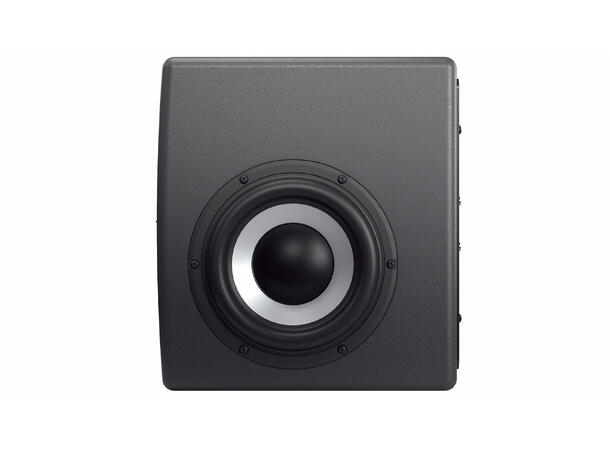

DUAL-FORCE™ WOOFERS

At the core of the Footprint®01 Gen2’s low end are dual 8” aluminum woofers mounted in rugged cast frames. Using Barefoot’s Dual-Force™ Technology, they cancel vibrations and reinforce cabinet rigidity, producing controlled bass down to 30 Hz. Powered by Class D amps delivering 500W total, their advanced motor design with copper shorting rings and extended excursion maintains clarity at high levels. A new heat-sink system ensures consistent performance in demanding sessions.

SPECS:

Description: Tri-amplified 3-way studio monitor

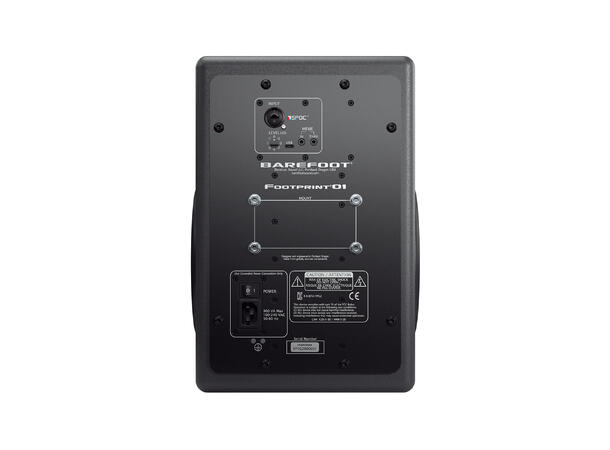

Controls: Input level stepped attenuator, MEME™ voice select
Analog Input: XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital Conversion: Word Length: 28-bit (56-bit High Precision)
Sample Rate: 96 kHz
Signal/Noise = 100 dB
Frequency Response: 36Hz – 40kHz (±3dB), 39Hz – 30kHz (±1dB)
Bass Response: -3 dB @ 36 Hz
Q = 0.762, Slope = 18 dB/octave asymptotic
MAX SPL: =113dB
Cabinet: 12.8L total internal volume
Sealed box, machined aluminum driver baffle, tensioned bracing. Polyurethane acoustic damping throughout
Crossover Frequencies: 170 / 3600 Hz (Active crossover between drivers)
Tweeter: 1-inch dual-ring radiator, low distortion motor,
rear waveguide chamber
Midrange: 5-inch aluminum cone, high magnetic flux motor +/- 3.5 mm linear excursion
Woofers: Dual 8-inch aluminum cones,- high magnetic flux motors
HF Amplifier: 60W
MF Amplifier: 150W
LF Amplifier: 500W
Power: Mains Voltage Input: 100 VAC to 240 VAC universal
Idle Power Consumption = 35W
Maximum Power Consumption = 900W
Weight: Speaker: 40.4 lbs (18.3 kg) each
Dimensions HxWxD: 14.25 x 10.20 x 13.63 in (362 mm x 259 mm x 346 mm)
