AMS NEVE 8851

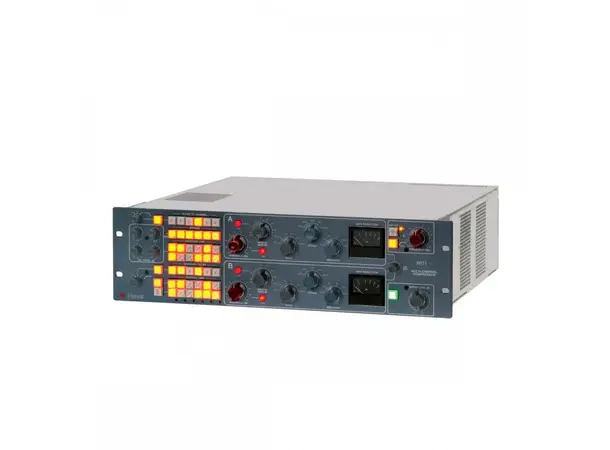

Based on six 2254 compression circuits—using the same feedback topology as our legendary 33609 stereo compressor—the 8051 delivers the famous Neve sound in spades. Flexible side chain routing, trimming and filtering make this a powerful and responsive tool for surround mixing and mastering.

Each channel can be controlled from either Side Chain A or Side Chain B, and the six signal paths can be split between the two side chains in any format required. Each audio channel can be routed to either or both side chains; for example the Centre channel in a 5.1 mix may be compressed using Side Chain A but also input to Side Chain B to control compression of the Surround Channels.



Technical Specifications

• Equivalent input noise (20kHz band): < -78dBu
• THD+N (for 20dBu input @1kHz): < 0.03%
• Maximum Output Level: > 26dBu into 600 ohms
• Interchannel Crosstalk: < -80dB at 15kHz

Control

• LFE Filter: 12dB/octave low-pass, -3dB frequency selectable to 80Hz, 100Hz or 120Hz.
• Sidechain & Key Filters: 12dB/octave high-pass, -3dB frequency selectable to 80Hz, 100Hz or 120Hz.
• Threshold: -20dBu to +16dBu master control, with ±15dB trims on all channels.
• Make-up gain: -10dB to +20dB.• Ratio: 1.5:1, 2:1, 3:1, 4:1, 6:1, MAX (~8:1).
• Attack: 2ms, 4ms, 6ms, 8ms and 16ms.
• Release: 100ms, 200ms, 400ms, 800ms, 1.5s and 3s.
• Output Level Trim: 0dB to -5.5dB pad, in 0.25dB steps.

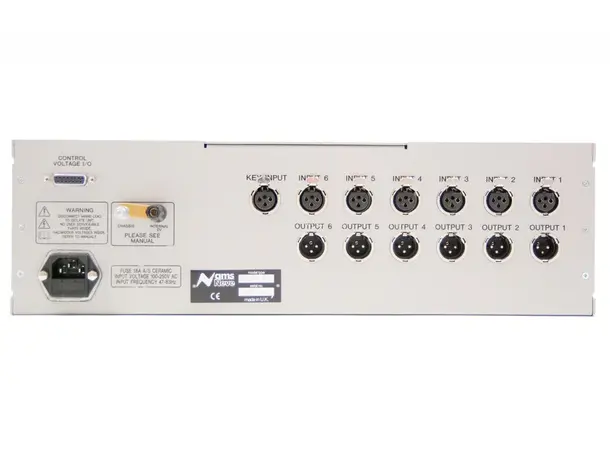

I/O

• Key input and LFE filter inputs electronically balanced, with input impedance of 10kohms.
• All other inputs transformer balanced with 3.6kohms input impedance.
• All outputs are electronically balanced post the output transformers, with maximum output of +26dBu into 600ohms.
• Unit calibrated for bridging loads greater than 10kohms.
• Control Voltage I/O is provided for linking multiple units, or linking to 33609 compressors.
• Connection is by 15 pin D-Type.
