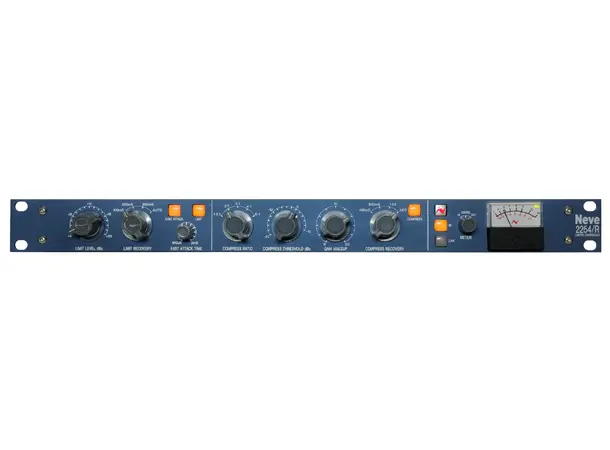

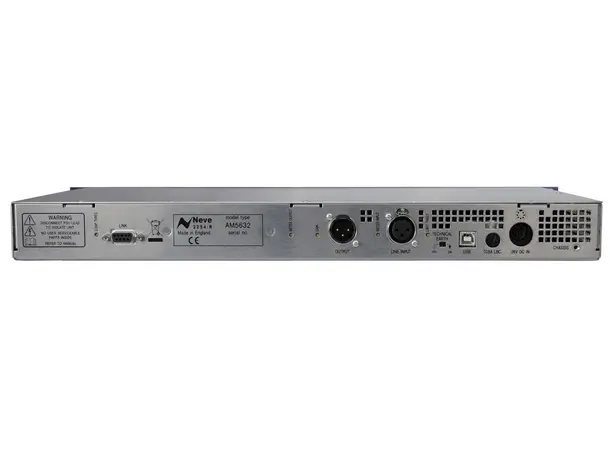

AMS NEVE 2254/R

Esteemed Neve Diode-Bridge Compression

Designed in 1969, the original Neve® 2254 mono Limiter/Compressor unit quickly became a legend. Forty years on, the 2254’s successor, the Neve 2254/R mono limiter/compressor represents another milestone.

From the first Diode-bridge compressor, the 2252, through to the early cubic 2254 modules, Neve® compressors have been held in very high regard as often treasured studio essentials. Now, the 2254/R takes this treasured circuit design into the 21st century with a modern 19? rack format for seamless integration into your studio racks.

General Specification

Classic mono limiter/compressor made to the exacting late-1960s design
Hand-made in Burnley, England using original Neve specification transformers
Original Neve 2254 discrete, Class A circuit design
Transformer-coupled circuits used in Input, Bridge-driver, Sidechain and Output stages
Manual Fast Attack Time adjustment and transparent level control
Independent Limiter In/Out and Compressor In/Out selection
Total bypass switch
Multiple units can be linked together to provide multi-unit side-chain control from a single unit
Compatible with Neve Total RecallTM software, simply connect the 2254/R using USB to a host PC or Mac running Neve Recall software
Hand-crafted and hand-wired by Neve in Burnley, UK

Audio Performance

• Input Impedance: 10k ohm, bridging, balanced, earth free
• Output Impedance: 80 ohms, balanced & earth free
• Maximum Output: +26dBu into 600 ohms
• Gain: 0dB, preset adjustment
• Frequency Response: Flat, within 1dB from 20 Hz to 20 kHz
• Noise: -72.5dBu in the band 20 Hz to 20 kHz
• Distortion (Typically measured at+8dBu, 800mS Recovery): 0dBu: 0.03% / +15dBu: 0.2%


Limiter Specification

• Ratio: >100:1
• Level: Adjustable from +4 dBu to +20dBu in 1dB steps
• Attack Time: 5 mS (slow) or selectable between 100 µS to 2 mS (Fast)
• Recovery Time: Selectable between 100 mS / 200 mS / 800 mS / Auto


Compressor Specification

• Ratio: Selectable between 1.5:1 / 2:1 / 3:1 / 4:1 / 6:1
• Threshold: Adjustable from -20dBu to +10 dBu in 2 dB steps
• Attack Time: 5 mS
• Recovery Time: Selectable between 400 mS / 800 mS / 1500 mS / Auto
• Gain Make Up: Adjustable Gain make-up available from 0 dB to +20 dB


Dimensions

• Width: 482mm (19 inches)
• Height: 45mm (1.75 inches) (1U)
• Depth: 254mm (10 inches)
• Weight: 5kg (11 pounds)
