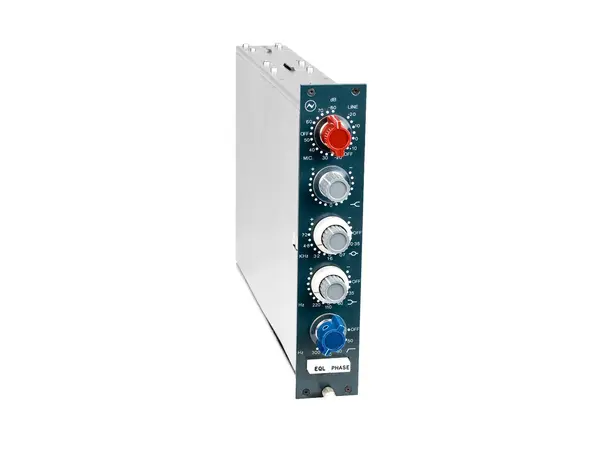

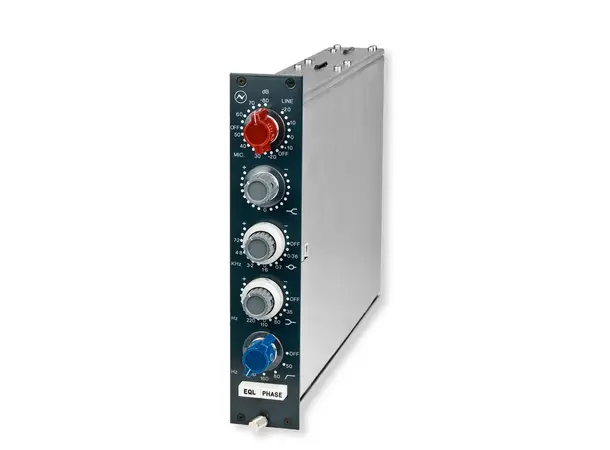

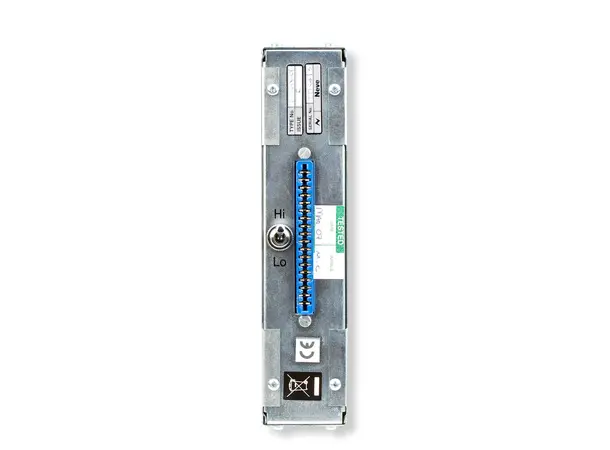

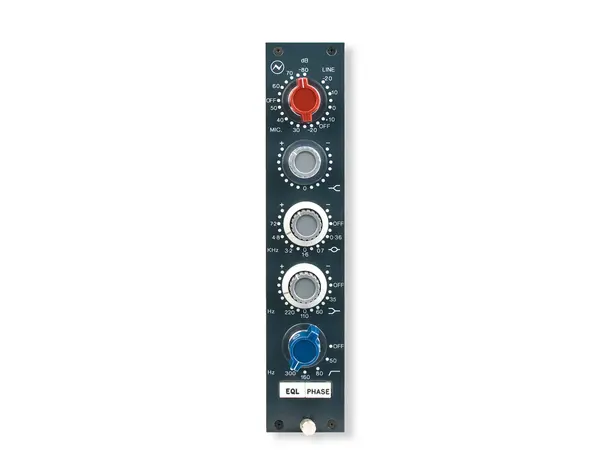

AMS NEVE 1073 Classic (Vertical)

The only genuine 1073 is Neve

Launched in 1970, the 1073® is the first choice of leading producers and artists, delivering the unique Neve® sound on some of the most famous recordings of the past six decades. Although there have been numerous attempts to copy the 1073, ours are the only true modules on the market.

The 1073® is entirely handcrafted here in the UK by our Neve® Engineers. All of the units constructed today follow the original, pencil-on-paper designs drafted by Rupert Neve himself. This original construction method, using point-to-point wiring, fibreglass tracking and original components, takes time. However, it is necessary to ensure that ultimate care is taken when constructing this legendary module.

General Specification

• Classic transformer microphone preamp amp (Class A design)
• Exclusive Neve® Marinair® transformers used on input and output stages
• Hand-built and hand-wired to original 1970s design
• Both inputs are transformer balanced and earth free


Preamp Specification

• Microphone Input: Gain +80db to +20dB in 5dB steps.
• Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.


EQ Specification

• High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz
• Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
• Mid Frequency: Smooth +/-18dB peaking, fixed ‘Q’ with selectable centre frequencies of 0.36kHz, 0.7kHz 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
• High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz


Audio Performance

• Output: Maximum output is >+26dBu into 600O, transformer balanced and earth free
• Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600O.
• Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
• Noise: -83dBu at all line gain settings (22Hz to 22kHz bandwidth)
• EIN: Better than -125dBu @ 60dB gain.


Dimensions

• Width: 45mm (1.8 inches)
• Height: 222mm (8.75 inches)
• Depth: 254mm (10 inches)
• Approx. Weight: 2.5kg (5.5 pounds)
