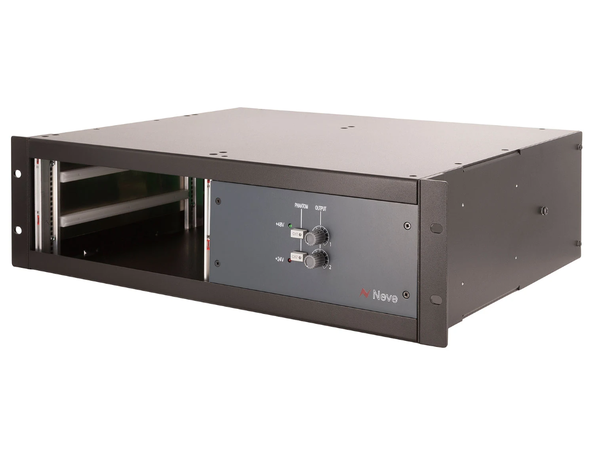

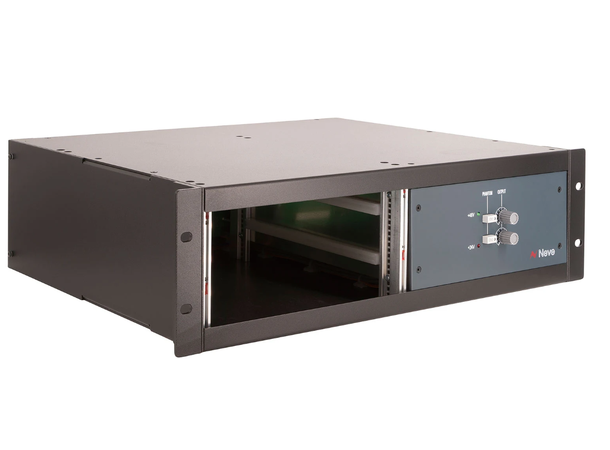

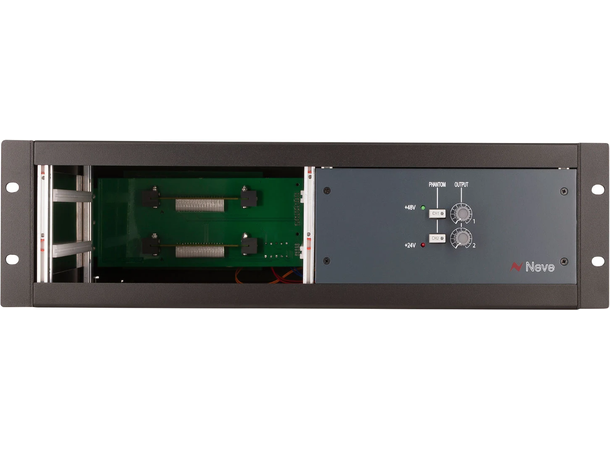

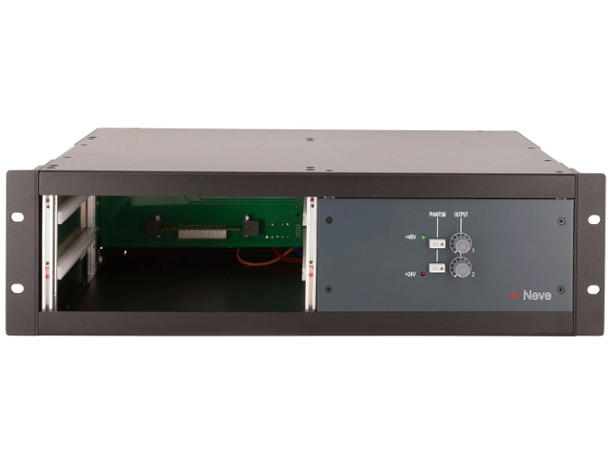

AMS NEVE AMS NEVE 2-SLOT 1073/1084 RACK

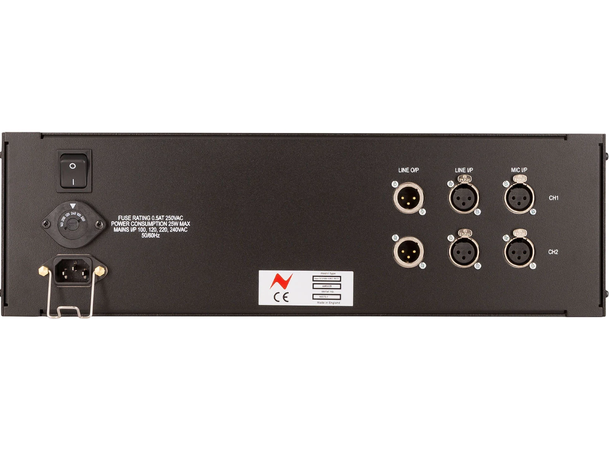

The 5U rack houses 2 modules vertically in a 19” rack-mounting unit. The rear panel has XLRs for
transformer balanced I/O. The rack has 8-potmeteres for gain control and switches for phatom power.

General Specification

• Rated Voltage: 100–230 V AC
• Rated Frequency: 50–60 Hz
• Rated Current: 0.5 A max

Primary Protection Fuse

• Operating Voltage: 100–230 V AC
• Fuse Rating and Type:
• T 0.5A H 250 V
• 20 mm × 5 mm ceramic fuse
• Location: IEC mains connector

Secondary Protection Fuses

• 24 V DC Output
• Output Voltage: 24 V DC
• Fuse Rating and Type:
• T2.0 A L, 250 V
• 20 mm × 5 mm glass fuse
• Location: F1
• Output Voltage: 48 V DC
• Fuse Rating and Type:
• T250mA, 250 V
• 20 mm × 5 mm glass fuse
• Location: F2

Dimensions

• 2 Module Version  - 3U
• 405mm x 133mm x 19Inch
• 11kg loaded
