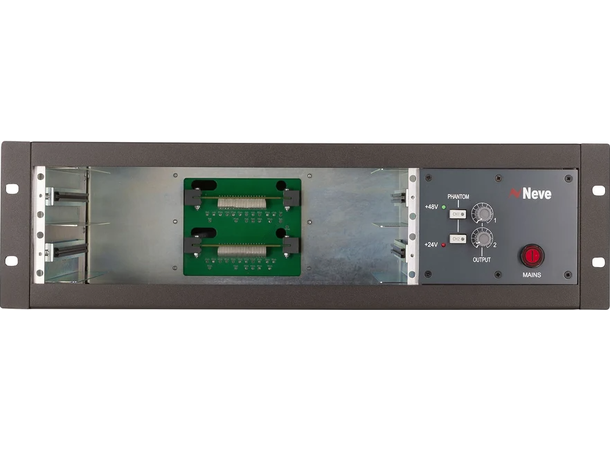

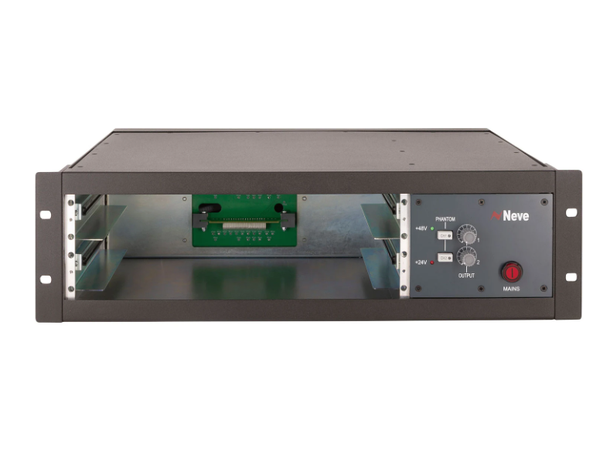

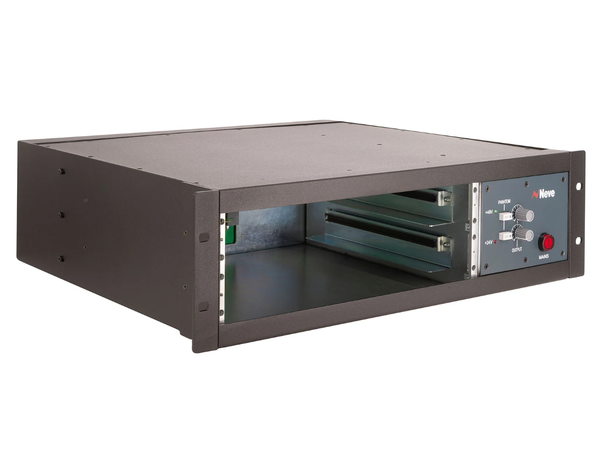

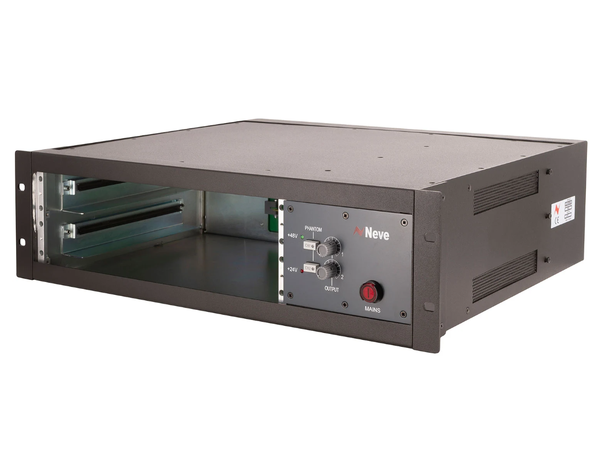

AMS NEVE AMS NEVE 2-SLOT 80-series RACK

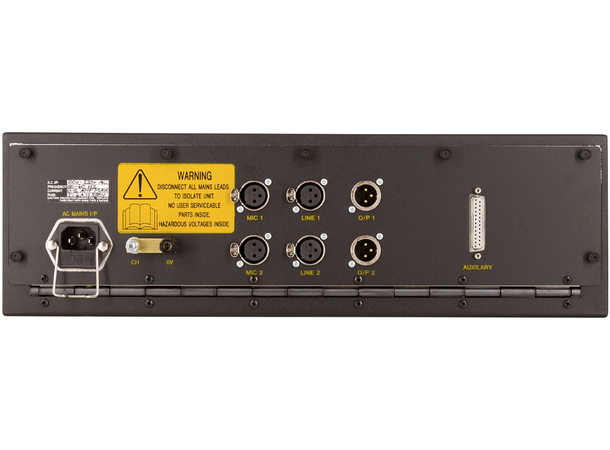

The 3U rack houses 2 modules horizontally in a 19” rack-mounting unit. The rear panel has XLRs for
transformer balanced I/O and a 25-way ‘D’-type connector for spare switch contacts and
unbalanced outputs plus an IEC connector for mains power.


General Specification


• Rated Voltage: 100–230 V AC
• Rated Frequency: 50–60 Hz
• Rated Current: 0.5 A max
• Surge Current (Inrush, Cold): 31.0 A
• Surge Current (Inrush, Hot): 33.0 A
• Earth Leakage Current: Approx. 1.2 mA
• High Earth Leakage Warning Required: No
• Primary Protection Fuse
• Operating Voltage: 100–230 V AC


Fuse Rating and Type

• T1.6 A, 250 V
• 20 mm × 5 mm ceramic fuse
• Location: IEC mains connector


Secondary Protection Fuses

• 24 V DC Output
• Output Voltage: 24 V DC


Fuse Rating and Type:

• T1.0 A, 250 V
• 20 mm × 5 mm glass fuse
• Location: F1 on SZN825-058
• 48 V DC Output
• Output Voltage: 48 V DC
• Fuse Rating and Type:
• T500 mA, 250 V
• 20 mm × 5 mm glass fuse
• Location: F2 on SZN825-058


Dimensions

• 2 Module Version  - 3U
• 00mm x 134mm x 19Inch
• 17kg loaded
