AMS NEVE AMS NEVE 8-SLOT 80-series RACK

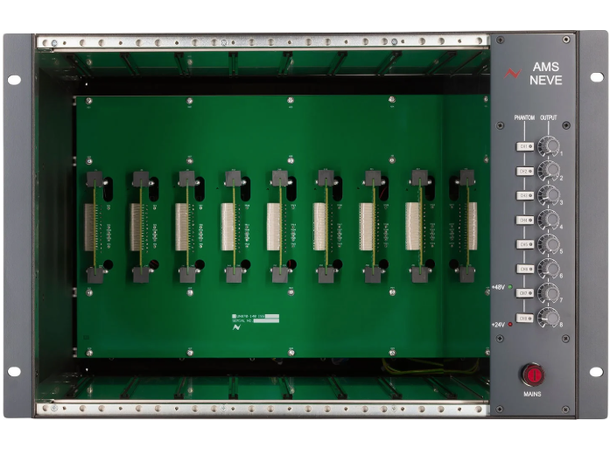

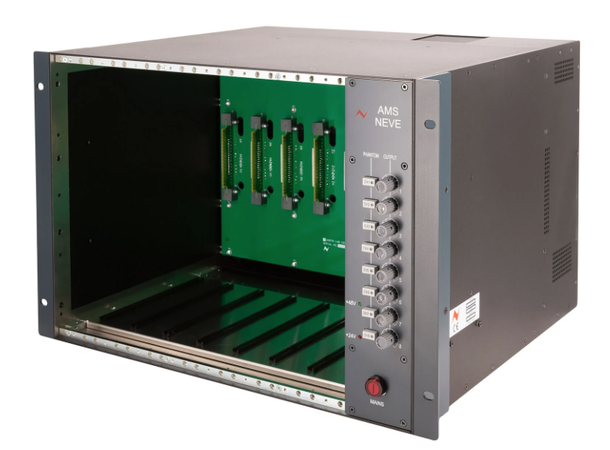

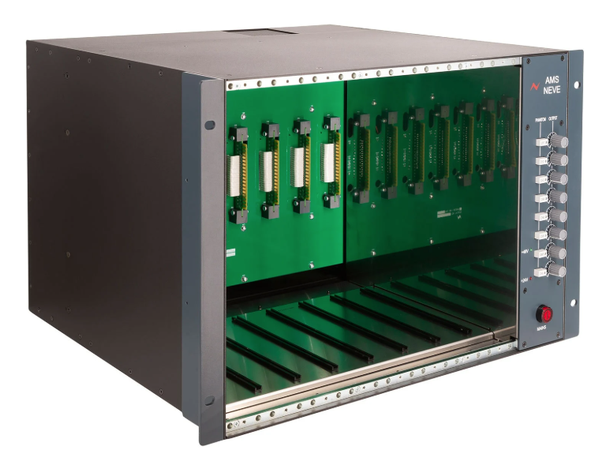

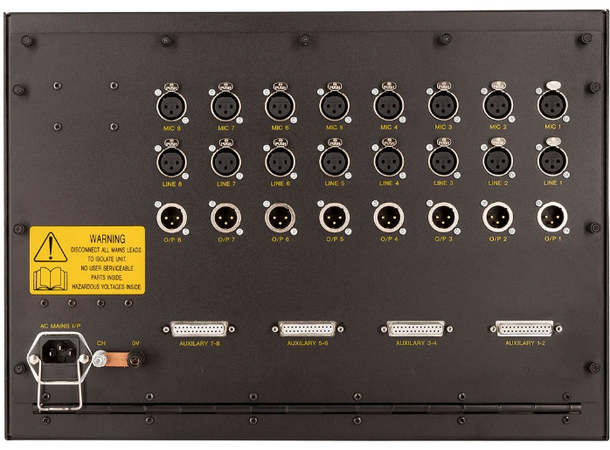

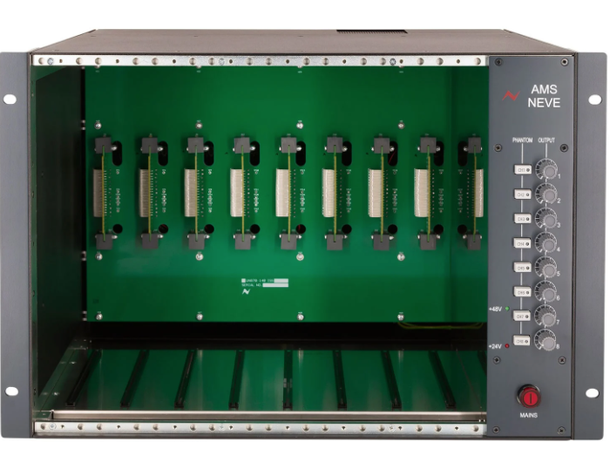

The 7U rack houses 8 modules vertically in a 19” rack-mounting unit. The rear panel has XLRs for
transformer balanced I/O and a 25-way ‘D’-type connector for spare switch contacts and
unbalanced outputs plus an IEC connector for mains power.

General Specification

• Rated Voltage: 100–230 V AC
• Rated Frequency: 50–60 Hz
• Rated Current: 0.8 A max
• Surge Current (Inrush, Cold): 31.0 A
• Surge Current (Inrush, Hot): 33.0 A
• Earth Leakage Current: Approx. 1.3 mA
• High Earth Leakage Warning Required: No
• Primary Protection Fuse
• Operating Voltage: 100–230 V AC
• Fuse Rating and Type:
• T1.6 A, 250 V
• 20 mm × 5 mm ceramic fuse
• Location: IEC mains connector
• Secondary Protection Fuses
• 24 V DC Output
• Output Voltage: 24 V DC
• Fuse Rating and Type:
• T2.0 A, 250 V
• 20 mm × 5 mm glass fuse
• Location: F1 on SZN825A058
• 48 V DC Output
• Output Voltage: 48 V DC
• Fuse Rating and Type:
• T500 mA, 250 V
• 20 mm × 5 mm glass fuse
• Location: F2 on SZN825A058

Dimensions

• 8 Module Version  - 7U
• 400mm x 311mm x 19Inch
• 46kg loaded
