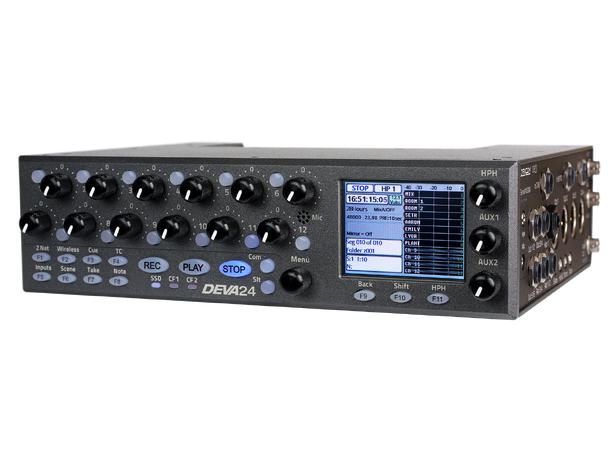

Deva 24 introduces a completely new recording and mixing system that delivers unsurpassed audio quality and control. Based on its award-winning predecessors, Deva 24 integrates 24 track recording with versatile input/output routing, ZaxNet, NeverClip, PowerRoll and MixAhead with a fast, intuitive touch screen interface.

CONNECTIVITY

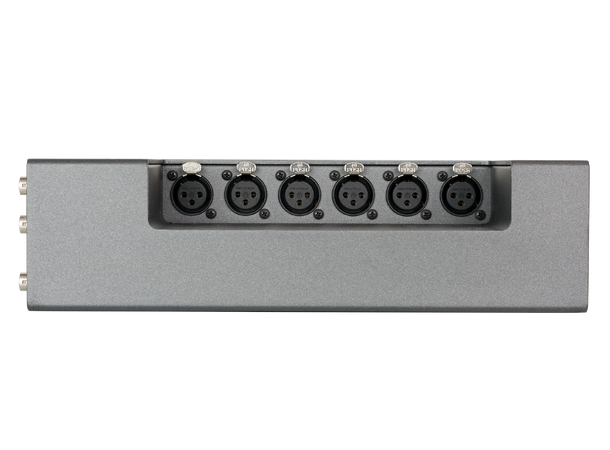

Deva 24 features 16 analog inputs, 12 are switchable mic or line level, each with adjustable limiter, high pass filter, input delay and 48V phantom power. NeverClip preamps provide 136 dB of dynamic range. Four additional line level inputs can be used as returns.

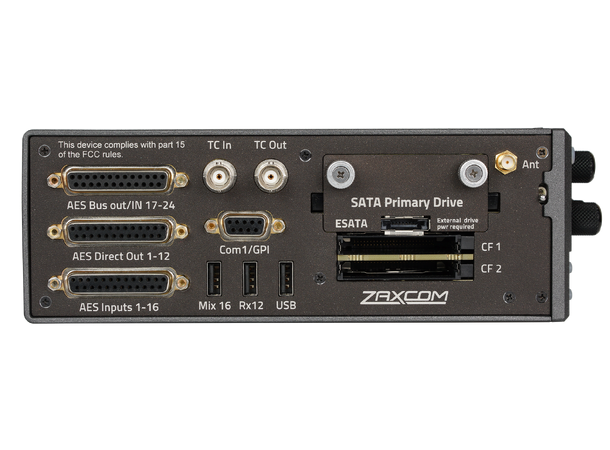

24 input channels of AES are available, 16 support AES42. With sample rate conversion, each input allows for a different sample-rate. Deva 24 accepts any unlocked AES signal with a sampling-rate of 32 to 192 kHz. The dynamic range of the sample-rate conversion is 124 dB.

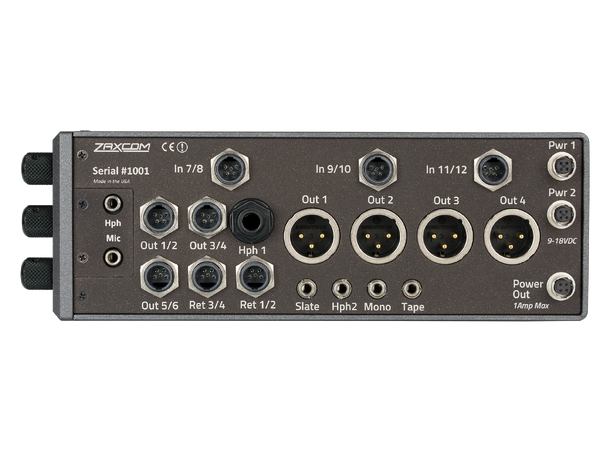

10 output busses provide routing flexibility through four XLR, three TA-5M and three 3.5mm connectors. Outputs feature delay settings, level attenuation and assignable output names. 12 direct output channels of AES offers a processor independent feed to a backup recording system.

There are additional connections for timecode, external slate mic and redundant power. USB slots connect Deva 24 to the Mix-16, Oasis and RX-12.
