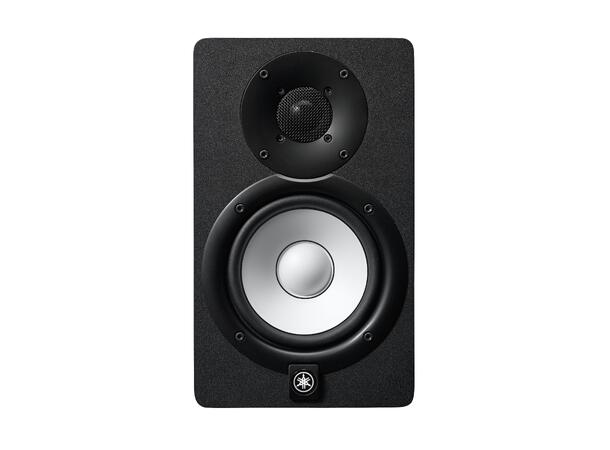

Yamaha HS-5 Studiomonitor 2-veis aktiv monitor, 45W

Yamaha HS-5 Studiomonitor

2-veis aktiv monitor, 45W

Varenr: HS5
-+
Bestillingsvare (7 dager)
BeskrivelseRESSURSER
Beskrivelse

Yamaha HS5

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
  • 54Hz - 30kHz frequency response
  • 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals





General specifications HS5:
Speaker type: 2-way bi-amp powered studio monitor
Frequency range (-10dB) 54Hz - 30kHz
Components LF: 5" cone
HF: 1" dome
Crossover: 2kHz
Output power: 70W (LF:45W, HF:25W)
I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
Power consumption: 45W
Shape: Bass-reflex type
Cabinet material MDF
Dimensions W: 170mm (6.7")
H: 285mm (11.2")
D: 222mm (8.7")
Net weight: 5.3kg (11.7 lbs.)
Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
