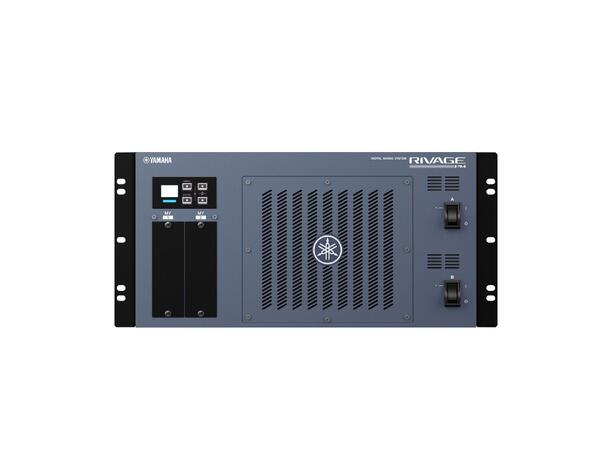

DSP-RX DSP Engine

The DSP-RX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system. DSP-RX can be upgraded to DSP-RX-EX later by adding the DEK-DSP-RX kit.

• Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
• Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.

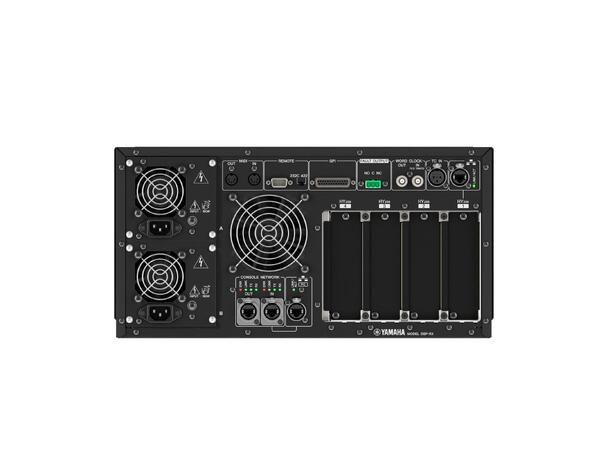

• Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• Two Mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
• Net Weight: 19 kg (41.9 lbs)
