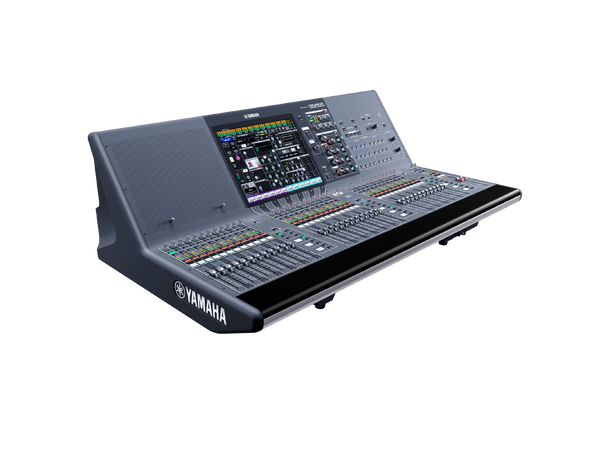

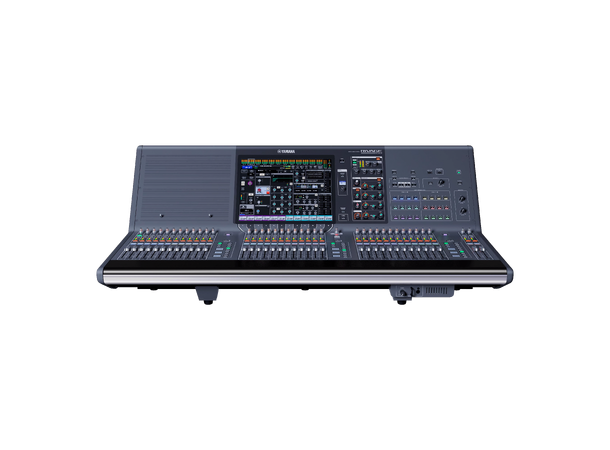

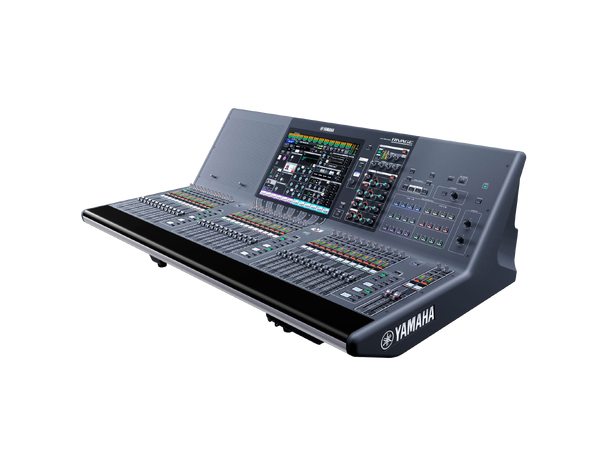

Yamaha CS-R3 Control Surface

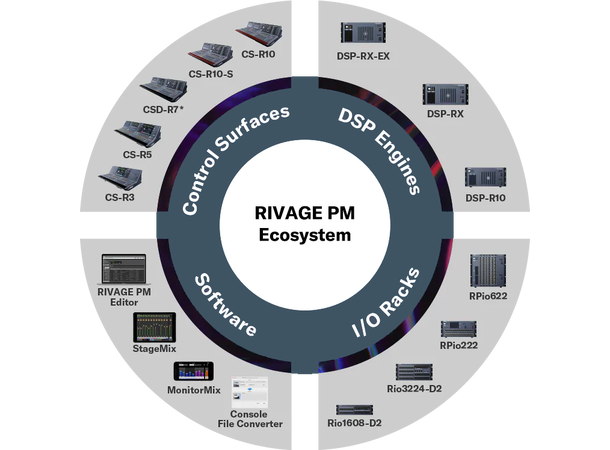

The CS-R3 control surface is the core component of RIVAGE PM3 system, with 96 kHz processing. The console is the most compact mixer in RIVAGE PM series regarding the size and weight though the software and operation is almost the same as other RIVAGE PM series.

    Display: 15" touch panel x 1
    Faders: 38 (12+12+12+2)
    Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
    Custom Fader banks: 6 x 5 on each bay
    User Defined keys: 12 x 4 banks
    User Defined knobs: 1(4 x 4 banks can be assigned)
    Touch and Turn knobs: 1

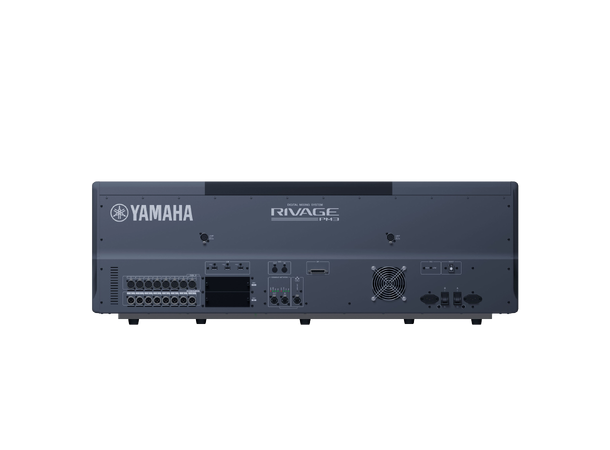

    Analog I/O: 8 in / 8 out
    Slot: 2 MY slots
    Ports: GPI (8 in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)
    Power supply: Dual redundant power supply built-in
    Power consumption: 200W
    Dimensions (WxHxD): 1,145 x 385 x 650mm (45.1" x 15.2" x 25.6")
    Net Weight: 38 kg (83.8 lbs)
