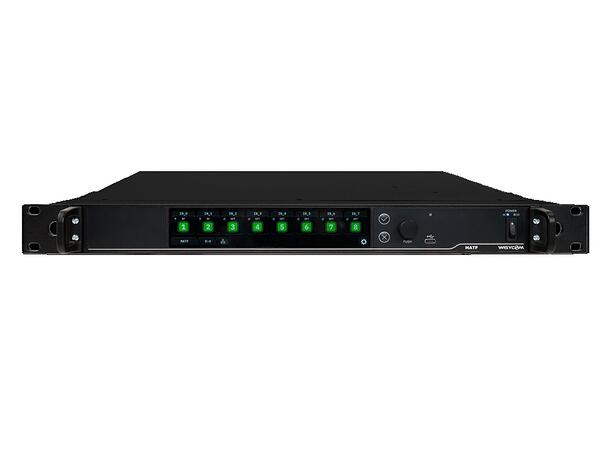

The MATF is designed to centralized RF distribution management integrating fiber and copper endpoint technologies with advanced matrix coupling in one compact frame, which offer a powerful platform that adapts to nearly any installation or workflow. Whether for theater, corporate, broadcast or OB applications, the antenna matrix offers new levels of scalability and remote management.

FEATURES

• Extreme wideband system from 170 to 1260 MHz
• Programmable combiner up to 8 zones in diversity configuration. Configurable by software in 8 zones into 4 outputs or dual 4 zones into 2 outputs
• Built-in spectrum analyzer to check inputs before they are switched into the combined signals or to monitoring combined signal
• Remote control of gain and filter thru coaxial cable of Wisycom smart antennas LFA, ADFA and BFA (coaxial modules)
• Easy configuration via the large colour touchscreen display



SKU: MATFCCFFCCFF

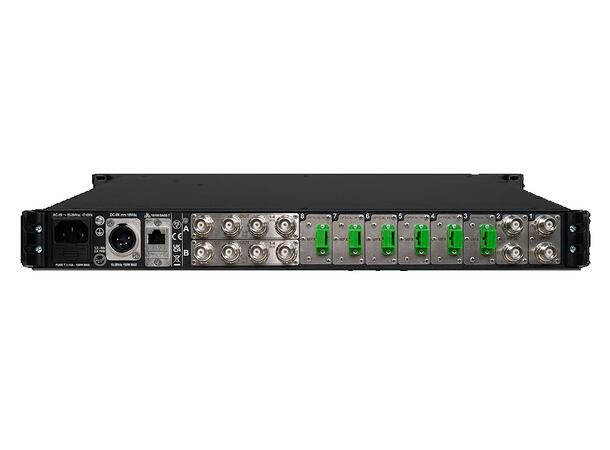

MATF with
4 coaxial input modules (slots items: 1,2,5,6)
4 optical input modules without multiplexer (slots items: 3,4,7,8)
