The MAT244 is a programmable RF Matrix Combiner designed to route RF/antennas to wireless audio receivers for multi-zone production applications.

Configurations:

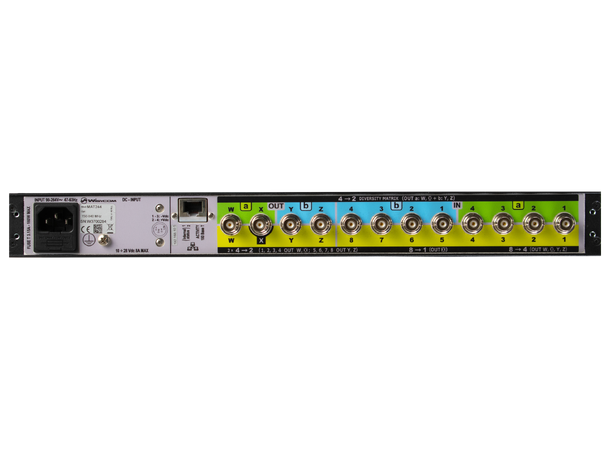

• 4:2 Diversity Combiner with 7dB gain • 8:4 Non-diversity Combiner • 8:1 Non-diversity Combiner with 7dB gain.

Most cost-efficient system design for multi-zone applications by: • Utilizing antenna network rather than duplicating wireless receiver per zone • Minimizing complementary equipment and simplifying signal flow (console inputs, signal processors, cables)

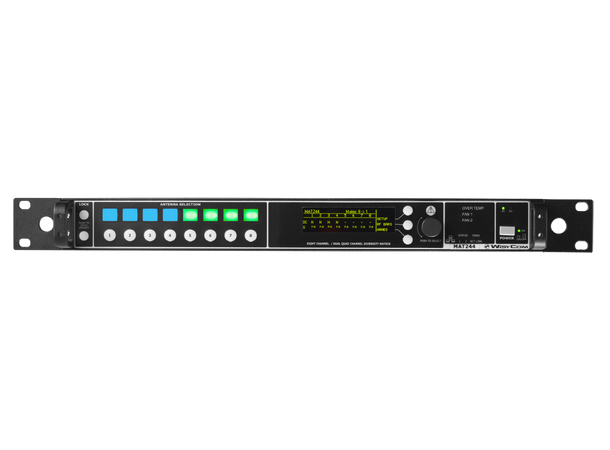

Use front-panel control or comprehensive antenna networking from a single Wisycom Manager interface: • Monitor and adjust antenna power, gain and filters via network of combiners, splitters and fiber links • Control interconnected wireless microphone receivers and rack IEM/IFB transmitters • Monitor wireless microphone transmitter and IEM/IFB receiver telemetry such as RF signal strength and batteries

• Program, control, and monitor warning and alarm indications via front panel controls or remotely • Remote operation via Ethernet 10/100 base and Wisycom Manager software • Wide bandwidth operation (150 MHz-1160 MHz, MAT244X1 version) • 12V power per input for active antennas (controllable via front panel toggle) • Additional current available diversity ports 1a and 1b or non-diversity ports 1 and 5 (12V/800mA) • Attenuators per input, adjustable via front panel menu or remotely (.5 dB increments) • Voltage and current monitoring per input with warning / alarm LED and notifications • Remotely control active antenna functions (gain, bandwidth, filters) with bidirectional data link thru coax • Program custom names for 8 zone inputs onboard or remotely
