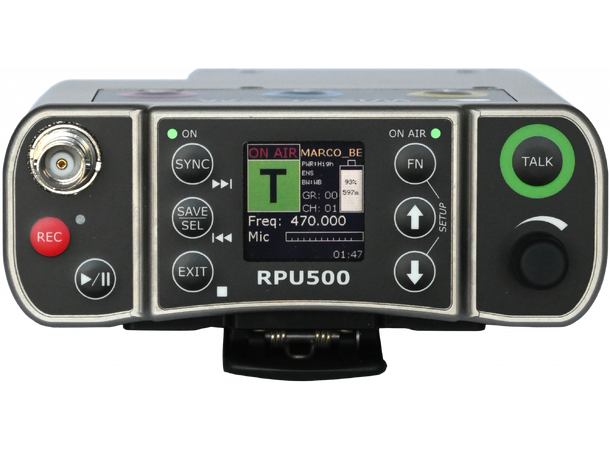

RPU500 is a full duplex portable unit especially designed for reportage application. Equipped with a versatile transmitter capable of working in both VHF and UHF and digital generated modulation  (narrowband/wideband).

FEATURES

• Ultrawide band in the VHF & UHF range:
  Main channel TX (broadband):
  VHF 170-230 MHz
  UHF 440-696MHz
  UHF 714-744MHz
  USA 940-960 MHz
  Japan 160/460 MHz (optional)
  Talk-back channel RX (narrowband):
  UHF (450 ÷ 700 MHz)
  (It is necessary to keep the minimum distance from TX).
• High transmitter power output (up to 1W)
• Long battery-lifetime > 5 hours with standard battery pack RRC2040
• Audio recording on memory card (SD)
• Monitor & control through USB-C/Bluetooth (Wisycom Manager software)
• 2 audio outputs (waterproof jack 3.5mm): i.e. journalist/guest
• 1 MAIN audio input connector XLR balanced with 48V/12V phantom
• 1 AUX audio shared input (waterproof jack 3.5mm): i.e. to broadcast recorder interview along with live comment (AUX/MAIN mixed)
• 4 pin Hirose connector for DC power supply
• 4 programmable buttons for talk back with remote audio routing (on additional AUX or throu Ethernet with Ember+)
• Transflective color display with high visibility in the sun
• Ergonomic and compact size
