Aura8-IP-3: Eight Processors Wherever You Need Them

Imagine your audio chain. Now imagine it on legal steroids...

The Aura8-IP-3 occupies a single rack space, but packs an impressive complement of eight fully independent multi-band stereo audio processors. Each is deployable anywhere on the network through WheatNet-IP and offers full AGC, EQ, compression and limiting functions for HD, streaming, podcasting – up to eight separate stereo applications – in one unit.

The Aura8-IP-3 Audio Processing BLADE-3 brings two of Wheatstone’s core technologies together (Vorsis Ultra-High Resolution Audio Processing and WheatNet-IP Intelligent Network) to provide a convenient and cost effective way to provide audio processing wherever you need – standalone or on your WheatNet-IP network.

Each processing chain consists of a 4-band parametric equalizer followed by a crossover and three bands of compression. The compressors each feed their own limiters, whose outputs are then fed to a broadband lookahead limiter for tight peak control. The Aura8-IP-3 has its own local I/O, with four stereo pairs of AES digital audio and four stereo pairs of analog line level audio in and out, and can function as a standalone processing engine. Because it’s a BLADE-3, it can also instantly configure itself as part of a new or existing WheatNet-IP Intelligent Network, making its processing power available throughout that network.

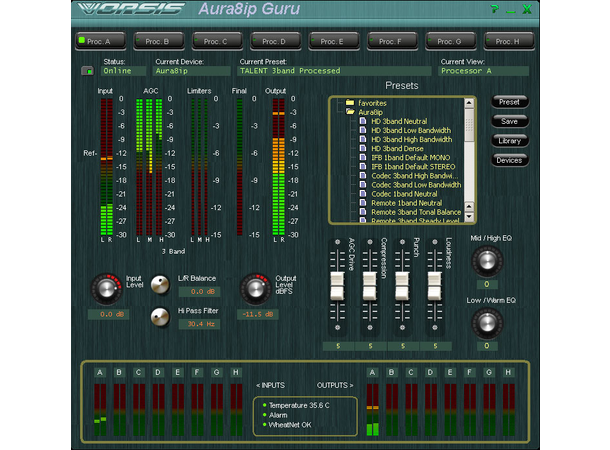

The Aura8-IP-3 is configured and controlled over Ethernet using a laptop or desktop computer. Included with the unit is Wheatstone’s acclaimed “Audio Processing GURU®” software, which allows easy setup of the processing using familiar, straightforward controls. Also available is a more sophisticated control interface called “GUI Pro,” which provides access to every individual processing parameter for expert-level adjustments.

Processing feeds has never been easier. The synergy in this product of two winning technologies – WheatNet-IP and Wheatstone processing – invites some extremely creative and powerful network designs. As with all BLADE-3s, a routing matrix and routing control interface are included, as well as two 8-channel stereo utility mixers which can be controlled either by WheatNet-IP Navigator software or by the Sideboard control surface, which can be used for a wide range of applications (for example, using Wheatstone’s ACI Automation Control Interface, your automation system can control the mix for satellite or local insertion switching).

It’s also got a built-in web server, so you can configure and control locally or remotely without having to run dedicated software. There’s flexible GPI logic with 12 universal logic ports, programmable as inputs or outputs and routable throughout the entire system, SNMP messaging for alerts, and silence detection on each output that can trigger alarms or make a routing change.

Because it’s a BLADE-3 with eight processors, it’s perfectly positioned to handle some unique applications involving dynamic functions that are not easily handled with conventional gear. And as with all Wheatstone products, it’s made right here in New Bern, NC, USA.

Features

• Highest performance 24-bit A/D and D/A convertors
• AES67 compatible
• 8 complete Vorsis multiband processors, each with:
      - 4-band parametric equalizer
      - 3-way crossover
      - 3 compressors
      - 3 limiters
      - Final lookahead limiter
• Two 8-channel utility mixers

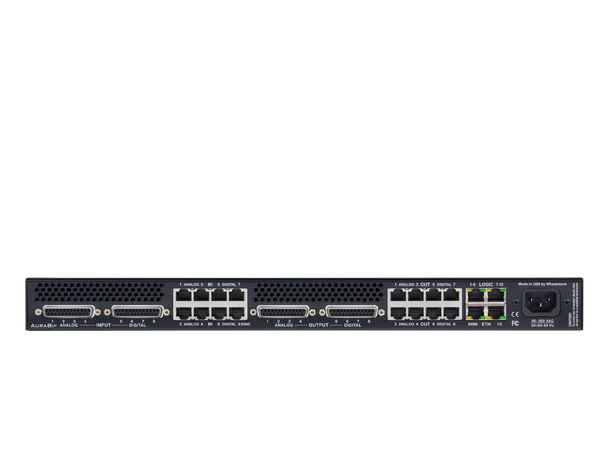

• 4 AES digital inputs on RJ-45 and “D” connectors
• 4 stereo analog inputs on RJ-45 and "D" connectors
• 4 AES digital outputs on RJ-45 and “D” connectors
• 4 stereo analog outputs on RJ-45 and "D" connectors
• Can be used standalone or as part of a WheatNet-IP Intelligent Network
• Built-in router control

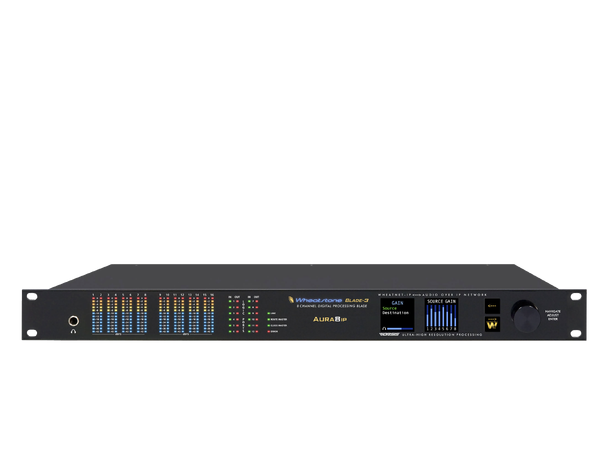

• Front panel headphone jack
• Socketed output chips
• Front panel metering
• Rugged power supply
• Colorful OLED display
• Silence sensing can be applied to any output
• One Gigabit Ethernet port

Using Aura8-IP-3

The applications are virtually limitless...

What can you do with the Aura8-IP-3? Virtually anything you want! These are just a few of the ways you might use Aura8-IP-3. As a standalone processor, you get eight stereo channels of jaw-dropping Vorsis ultra high resolution processing power for under $500 per channel. That alone is worth the price of admission. But......when you take advantage of Aura8-IP-3 being a BLADE-3 with its built-in utility mixers, web server, full logic, SNMP messaging and silence detection, and use all that with it’s 8-channels of processing, its power is really unleashed.
