Voices sound larger than life

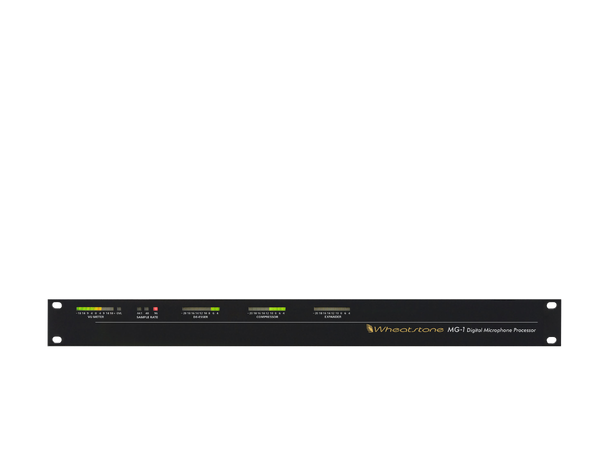

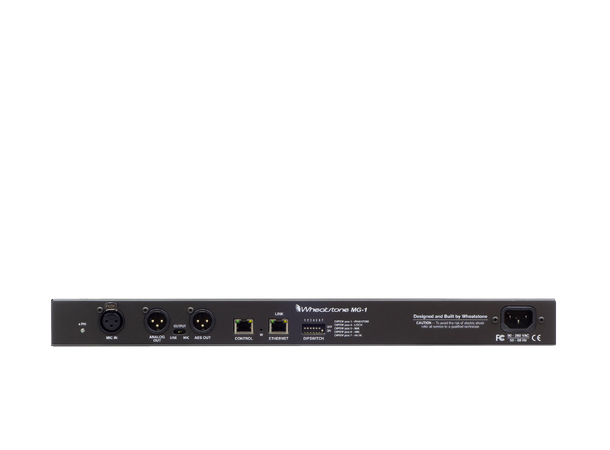

The alternative MG-1 features the same circuit as the M-1, but without the front panel knobs and switches. All control is handled via the M-1 GUI. This reduces costs and can save trips to the rack room. The back panels of the M-1 and MG-1 are virtually identical making it easy to swap out one for the other if desired.The M-1 is a flexible digital microphone processor. It offers unlimited presets, security and networkability in an all-digital framework, with parameters that are easy to set up. Either from the front panel, or from the GUI - all parameters of the M-1 can be controlled to give each voice talent his or her own personal sound at the press of a button.

The alternative M-1 microphone processor is equipped with a Super-Quiet (SQ) microphone preamplifier featuring an extremely low noise floor, very wide dynamic range, faithfully accurate transient response, and ruler flat frequency response. Operating in harmony with high quality 24-bit A/D converters and a 96kHz base sample rate, the M-1 adds absolutely no undesired coloration to the signal and faithfully preserves the sound of any microphone and talent combination.

The features on the M-1 include four-band parametric EQ, high- and low-pass filters, de-esser and expander and of course, our proprietary Vorsis dynamics processing. The unit comes loaded with factory designed presets, and designing your own is easy, thanks to features such as “Quick Save” and ‘Quick Compare” that allow you to toggle back and forth between different presets as you adjust them. From one GUI, an entire group of M-1’s can be controlled, making multiple microphone processor management easy.

Wheatstone-designed Dynamics Control

A high performance de-esser and a smooth sounding, very low distortion compressor/limiter dynamics control section round out the M-1’s offerings to create powerful and authoritative presence on production or on-air microphones.

Wheatstone-designed Equalization

Very high quality parametric and shelving equalization is available to sweeten the sound of any microphone as desired without adding noise or undesirable artifacts to the signal.

Wheatstone Processing Presets

A variety of ready-to-use factory processing presets are provided, carefully tailored for different processing goals and formats. You can select a factory preset, confident that it will sound great just as it is. Or use a factory preset as a starting point and create a custom sound for each announcer, then save the new settings as a personalized user preset. In a facility with multiple microphone processors, presets saved in one unit can be easily copied to the others.

• Control of all audio parameters
• Intuitive PC graphical user interface (GUI)
• High quality, low noise microphone preamp
• Phantom power
• Metering: In/Out, de-esser, compression, expansion
• Password based security
• 44.1, 48 or 96 kHz AES3 output sample rates
• Mic or line level out, selectable from rear panel
• 24-bit A/D, D/A converters
• Preset storage/recall via GUI
• Variable frequency de-esser
• Voice phase scrambler
• Adjustable compression
• Downward expansion
• EQ: two-band parametric plus variable high and low shelving
• Tunable high and low pass filters
• FFT voice energy display via GUI
• Quick save/compare function
• TCP/IP Ethernet remote control
• Takes up only one rack space
