Hear Technologies Dante-WSG XS

Bridge the Waves SoundGrid and Dante

-+
Bestillingsvare (20 dager)

Spørsmål om løsningen?

Kontakt oss om du har spørsmål om produktet eller ønsker et tilbud.

Hear Technologies Dante-WSG XS

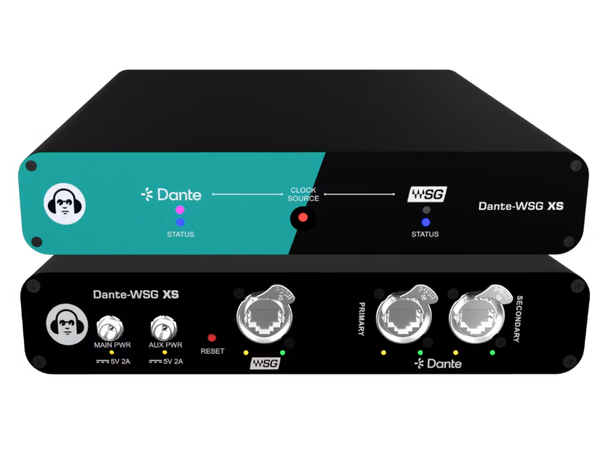

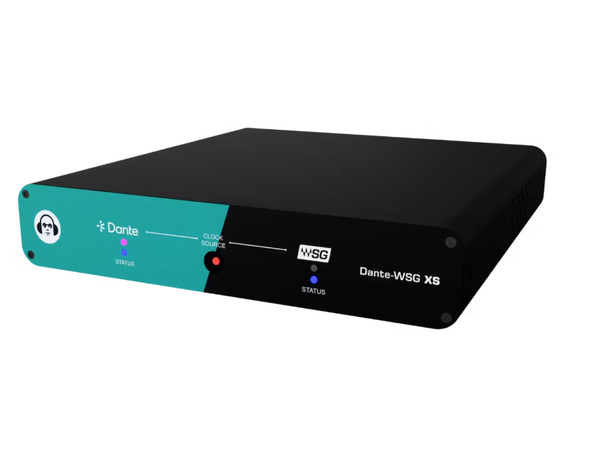

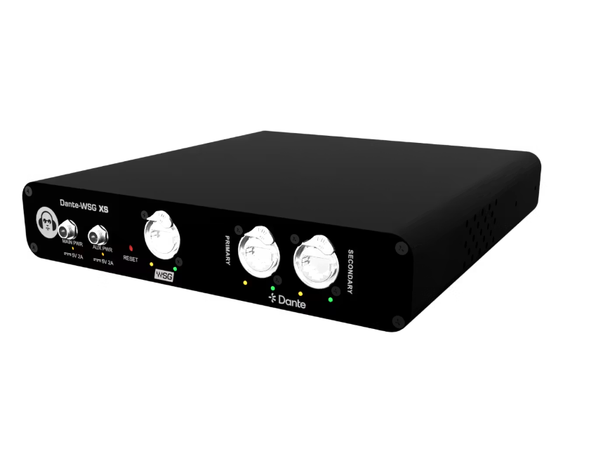

he Hear Technologies Dante-WSG XS is a compact half-rack interface that bridges Dante™ and SoundGrid® networks, enabling seamless integration between Dante systems and Waves eMotion LV1 mixers or SuperRack systems. Supporting up to 64 channels of bidirectional audio, it provides a simple, reliable way to connect SoundGrid-based workflows to Dante infrastructures in live sound, broadcast, and installed audio environments. Designed for portability and deployment flexibility, the Dante-WSG XS delivers the same Dante-to-SoundGrid functionality as previous bridges, in a unit that is half the size (half-rack 1U) and half the weight (only 3 lbs). Whether you're adding Dante connectivity to an eMotion LV1 system or integrating SuperRack plugin processing into a Dante-based setup, the Dante-WSG XS makes it easy to connect, route, and manage audio between both ecosystems.

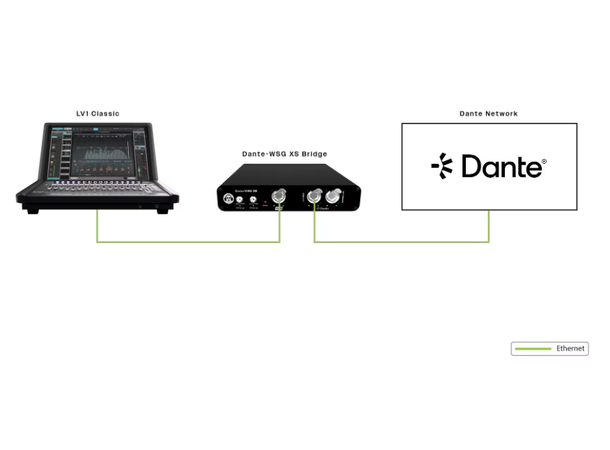

  • Connect eMotion LV1 mixers to Dante networks

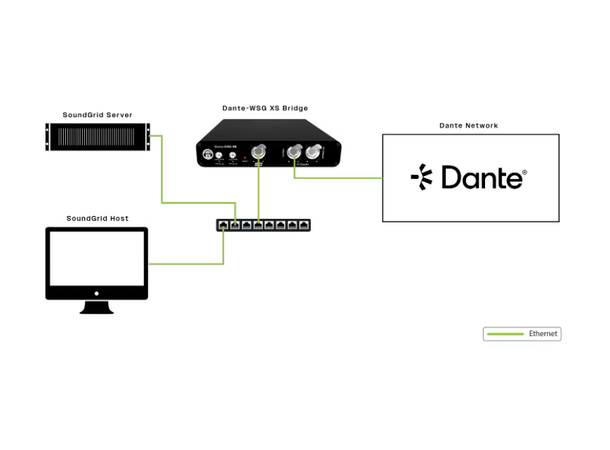

  • Integrate SuperRack systems with Dante
  • 64 channels of audio @ 44.1–48 kHz sample rates
  • Compact half-rack 1U design
  • 32 channels of audio @ 88.2–96 kHz sample rates
  • Lightweight at only 3 lbs
  • Clock sync over Ethernet between SoundGrid and Dante
  • Rugged build for touring, broadcast, and installed audio

System I/O

 Latency Typical Dante to WSG or WSG to Dante Latency:*
0.787ms @ 44.1kHz
0.778ms @ 48.0kHz
0.580ms @ 88.2kHz
0.520ms @ 96.0kHz

 *For round-trip time, latency is exactly double
**Does not include any A/D or D/A conversion time or plugin processing time

Clock Source

A: Input “A” as clock master (Dante)
B: Input “B” as clock master (WSG)

Sampling Rate

44.1kHz, 48kHz, 88.2kHz, 96kHz

Waves SoundGrid Card

Audio Inputs

 64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

Audio Outputs

64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

Sampling Rates (Supported)
44.1kHz, 48kHz, 88.2kHz, 96kHz

Dante Card

Audio Inputs

64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network) Audio

Outputs

64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)

Sampling Rates (Supported)
44.1kHz, 48kHz, 88.2kHz, 96kHz

Physical

Dimensions

H:4.17 cm
W:22 cm
D:22.74 cm

Unit Weight 1.36 kg
