Transceiver 2 Universal Insert Station

• Insert your balanced gear such as guitar pedals and old echo fx into your DAW or console via the Transceiver 2.

• Active DI-box with up to +20dB of gain. Plug your favorite instrument into your collection of vintage gear via the Transceiver 2.

• A re-amping tool.

• A Swiss Army Knife on stage. Connect balanced gear on stage between your instrument and amp.

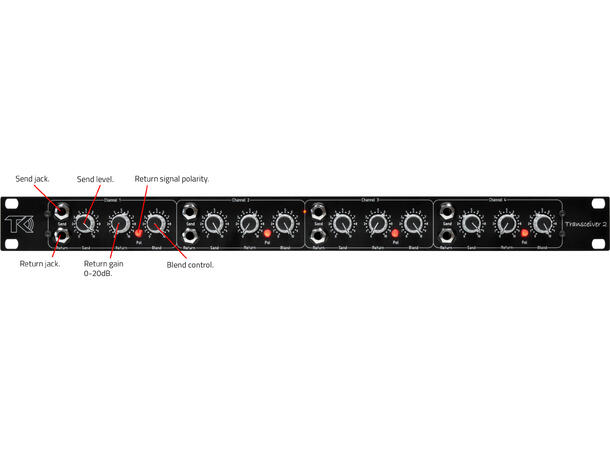

• Blend function for the inserts. Overview The Transceiver is a four channel insert station. The main function is to convert balanced signals into unbalanced and back again without losing any signal quality. Each channel has a send level, a return gain control, a return polarity switch and a blend control. With the new added blend function you can choose how much of the inserted effect you want to add. The Transceiver 2 is a transformerless balanced design for the best possible signal handling, a flat frequency response and low harmonic distortion and noise. The balanced output has a high driving capability to drive input transformers, also the unbalanced send has a high driving capability. Specification Max balanced input: +27dBu Max unbalanced send level: +21dBu Max return input level: +21dB Return gain: 0-20dB Return input impedance: 1Mohm Max balanced output: +27dBu
