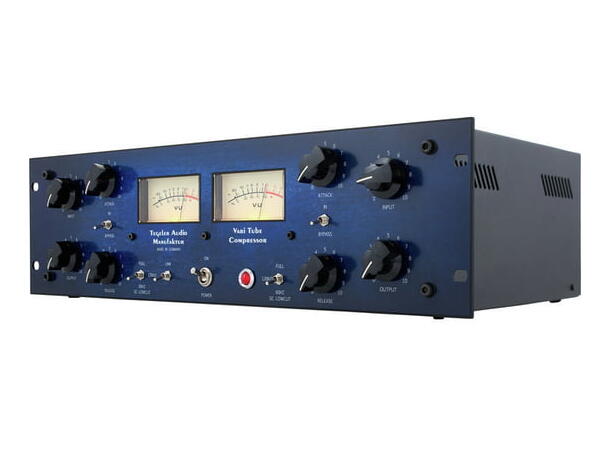

Tegeler Audio Manufaktur VTRC Recording Channel

Tube device (4 triodes)
Class-A circuit
Frequency range: 20 - 20,000 Hz +/- 1.5 dB
Microphone preamp: Microphone input with transformer / 48V / phase
True 48V phantom power
Phase switch
High-impedance instrument input (100 kOhm)
Character changeable from clean to fat
Equalizer: Low-cut filter: 80-160 Hz
Lower-mid boost: 200-300-500-700-1000 Hz
Mid-cut: 200-300-500-700 Hz 1-1,5-2-3-4-5-7-9 kHz
High boost: 1,5-2-3-4-5-7-10-12-16-20-24 kHz
Compressor: Opto compressor
Vari tube compressor (based on the Vari µ principle)
Soft-Knee characteristics
Program-adaptive attack and release timing

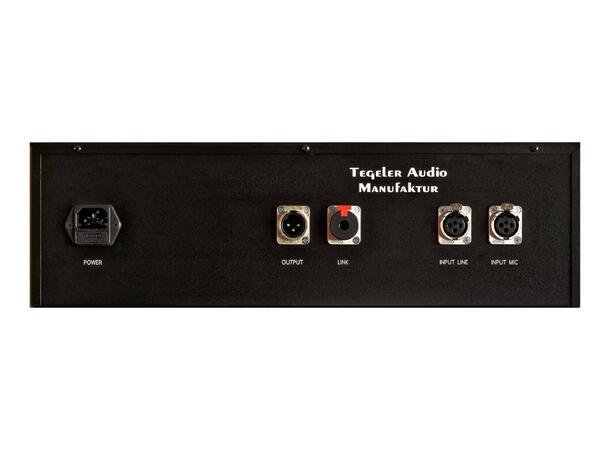

Balanced input and output
Internal power supply with high-quality toroidal transformer
Height (H / W / D): 132 (3U) x 483 x 250 mm
