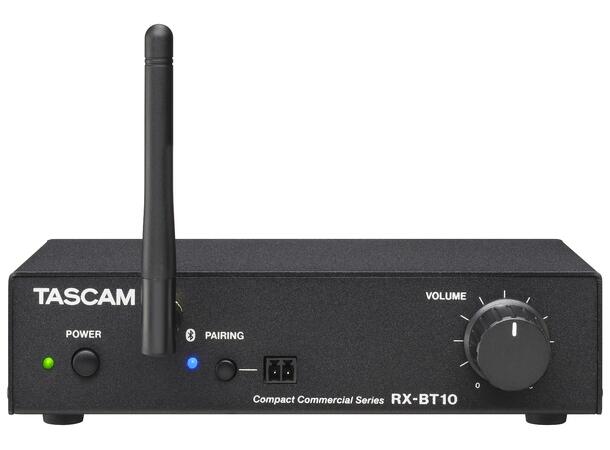

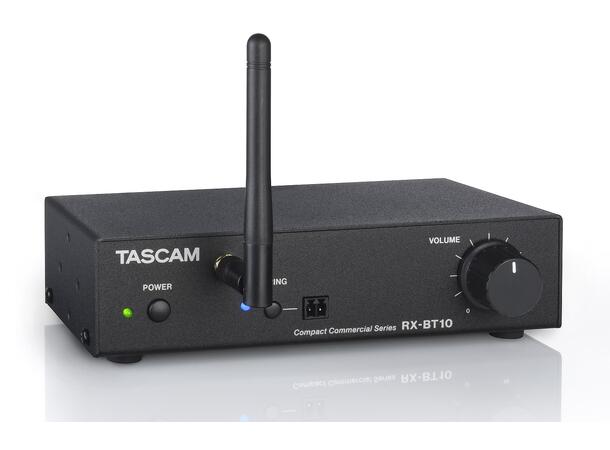

Tascam RX-BT10

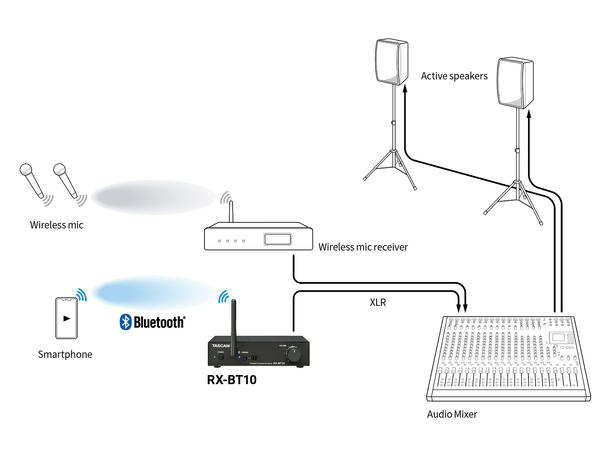

Makes it easy to integrate smartphones, tablets and other Bluetooth devices with existing audio systems
Bluetooth 5.1 for stable connections over long distances

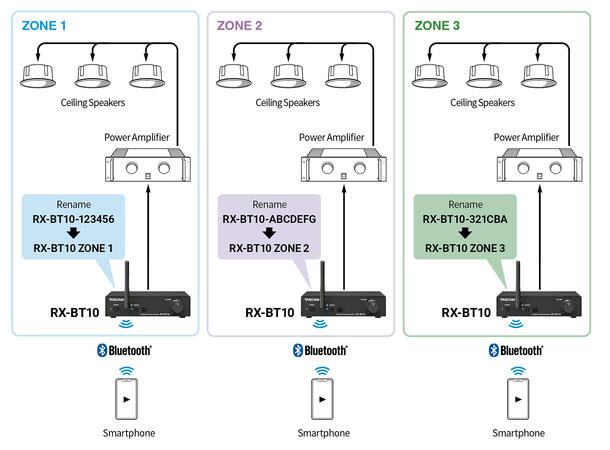

Unique Bluetooth ID for each device allows multiple RX-BT10 units to be used in one installation
Stores pairing information for up to 8 devices
Up to 3 devices can be connected at the same time

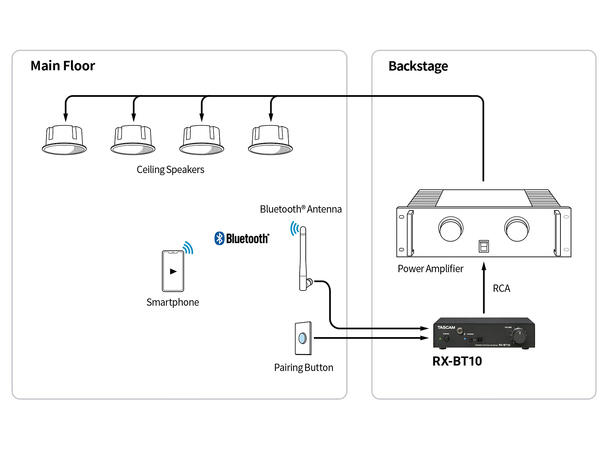

Detachable antenna can be extended up to 20 metres for optimum reception
Extendable pairing button

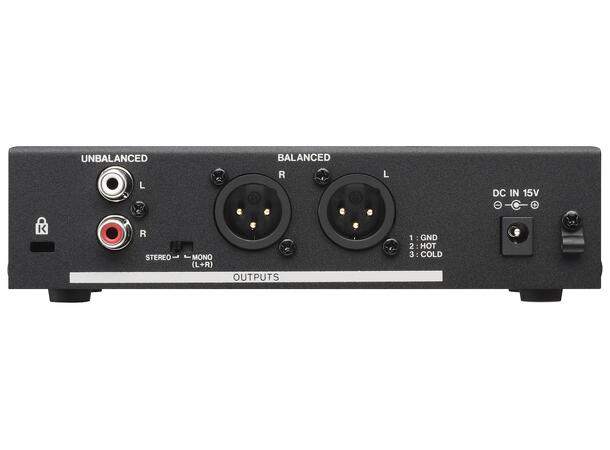

Balanced and unbalanced audio outputs (XLR, RCA)
Output level control on the front
Audio output switchable between stereo and mono
Compact, rugged design
Mounting brackets included
Optional AK-RS1 allows two units to be installed side by side in a rack


Bluetooth
Version 5.1
Output class 1 (approx. 100 m unobstructed transmission range*)
Supported profiles A2DP, AVRCP
Supported codecs SBC, AAC

Analogue audio outputs
Line output (unbalanced) RCA connectors
Maximum output level +6 dBV
Nominal output level -10 dBV
Output impedance =100 O
Line output (balanced) XLR female connectors
Maximum output level +14 dBu
Nominal output level -2 dBu
Output impedance =200 O

Audio performance
Frequency response 20 Hz – 20 kHz, +0.5 dB / –1 dB
Distortion (THD+N) =0.04 % (1 kHz, max. output level)
Signal-to-noise ratio =90 dB (1 kHz, 22 kHz LPF, A-weighted)
Channel separation =100 dB

Power supply and other specifications
Power supply Dedicated AC adapter (Tascam PS-M1524)
Input voltage AC 100–240 V (50–60 Hz)
Output voltage DC 15 V
Output current 2.4 A
Power consumption 1.7 W
Dimensions (W × H × D) 171 mm × 45 mm × 73 mm (excluding protrusions)
Weight 530 g
Permissible operating temperature range 0–40 °C
Permissible operating humidity range 5–85 % (without condensation)
Included accessories AC adapter (TASCAM PS-M1524), Bluetooth antenna, Euroblock plug, installation bracket kit, safety guide, TASCAM ID registration guide
