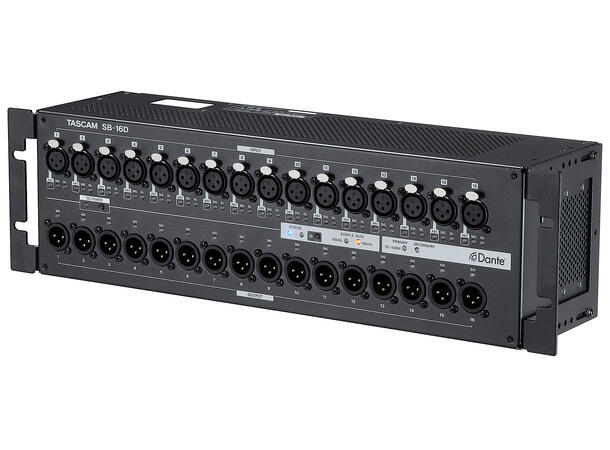

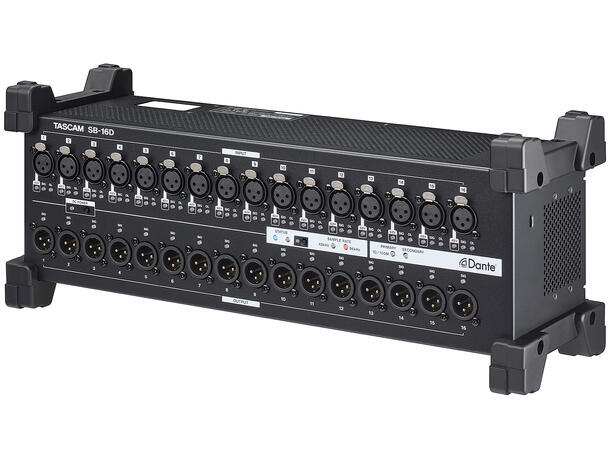

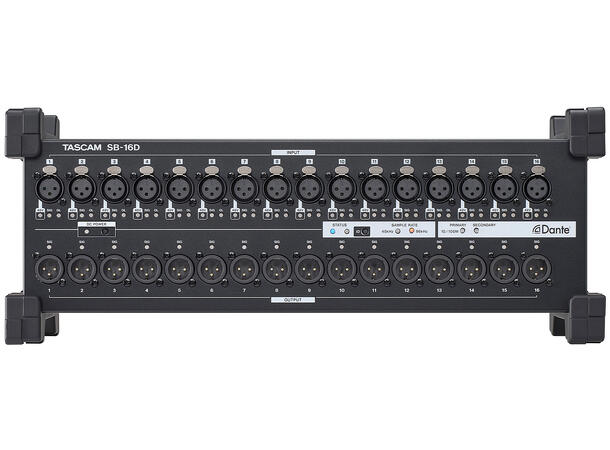

The SB-16D is a Dante-enabled active stage box with 16 analogue inputs and 16 analogue outputs. As an analogue interface equipped with 32-bit A/D converters and Class 1 HDIA microphone preamps, the SB-16D captures your audio in the highest quality right at the beginning of the signal path. You can use multiple devices simultaneously in a Dante network – placed on the floor or mounted in a rack.

Having the same performance and hardware quality as Tascam Sonicview live recording consoles, the SB-16D offers all the advantages of Dante networking, combined with seamless integration with Sonicview mixers and other Dante-enabled products from Tascam – and other manufacturers.

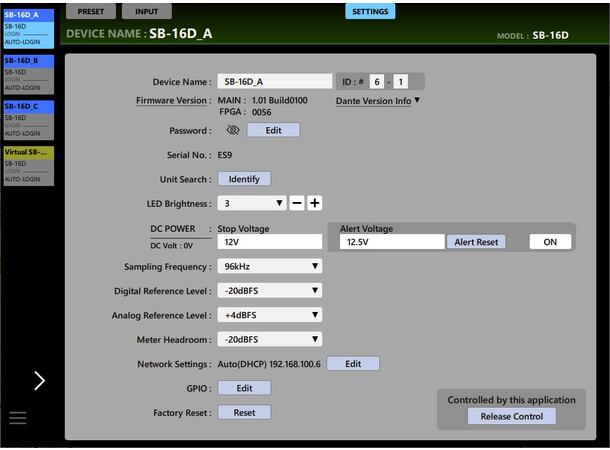

When an SB-16D stage box is connected to a Tascam Sonicview, microphone gain can be remotely controlled from the mixing console, and all inputs and outputs come up on the touchscreens for hassle-free ease of use. In addition, the SB-16D is equipped with a GPIO interface with eight inputs and outputs. These expand to 16 GPIO ins and outs when connected to a Sonicview mixer, facilitating parallel control.
