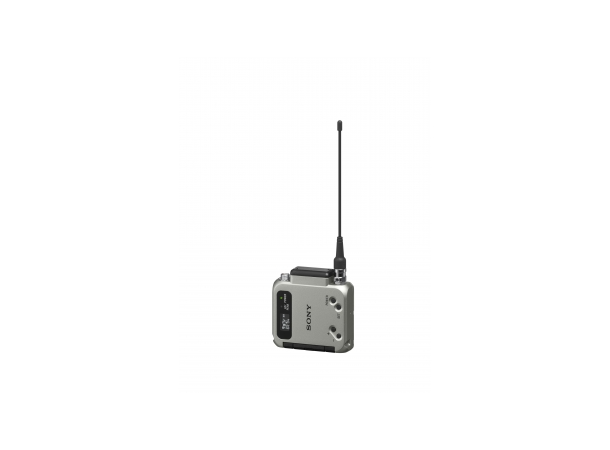

DWX Series digital wireless microphone bodypack transmitter.

Very high quality wireless audio

Advanced Sony codec design assures superb audio quality, with a high dynamic range of more than 106 dB, plus a wide frequency response of 20 Hz - 22 kHz and excellent transient response.

Low-latency audio

Advanced Sony codec design reduces audio latency to as little as 1.2msec*

*DWT-B03R and DWR-R03D total delay with codec mode2 and analog output

Rain, sweat and spray proof*

Ideal for musical, film production or outdoor operation, the DWT-B03R features a tough magnesium body with a moisture-resistant housing gasket and splash-proof connector that resists rain, sweat and spray.

*IPX4/IPX5 rating based on standard testing by Sony.

Long battery life

Perform for longer with the high-capacity rechargeable NP-BX1 Li-ion battery (approx. 7 hours). The DWT-B03R is compatible with the optional BC-DWX1 Dual Charger.

148MHz* wideband

Contributes to the reduction of equipment and burden of maintenance.

*depends on version

High density multi-channel operation

Ideal for large-scale productions, the DWT-B03R supports high-density simultaneous multi-channel operation: 375kHz spacing accommodates up to 21 channels per 8MHz TV band or up to 16 simultaneous channels per 6MHz TV band.

AES 256bit encryption

For secure encrypted transmission

Easy, versatile remote control

The DWT-B03R is compatible with Sony's Wireless Studio control software for PC (Version 5.0 or later). Up to 82 transmitters can be controlled using the Cross Remote™ function and RMU-01 remote control unit (available separately).

Selectable RF output power

RF output power level is selectable (2mW/10mW/25mW) to prioritise stable multi-channel or long distance operation.

OLED display

The easy-to-read OLED display gives confirmation of channel number, RF signal status, user name, user group and lock status.

Phase reverse mode

It can change the audio phase by the menu.

User setting memory

Settings can be easily stored to the memory of DWT-B03R.

Setting lock

Transmitter settings can be locked to prevent accidental operation during performance.

Transmitter/receiver identifying function

Paired transmitters/receivers are identified by blinking display.

Small 3-pin connector with lock
