xMac Studio med Echo III 3 x Lange PCIe kort (HDX støttet)

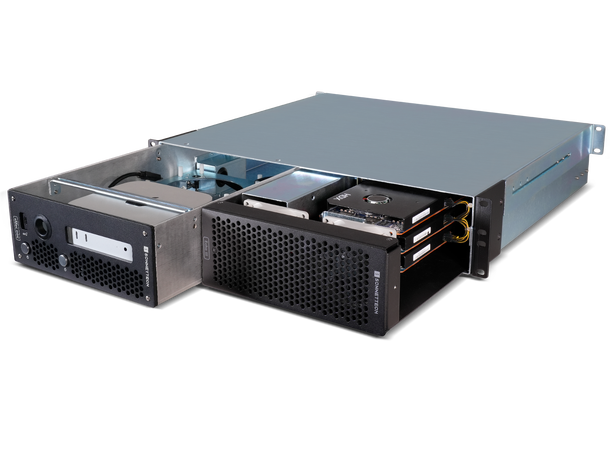

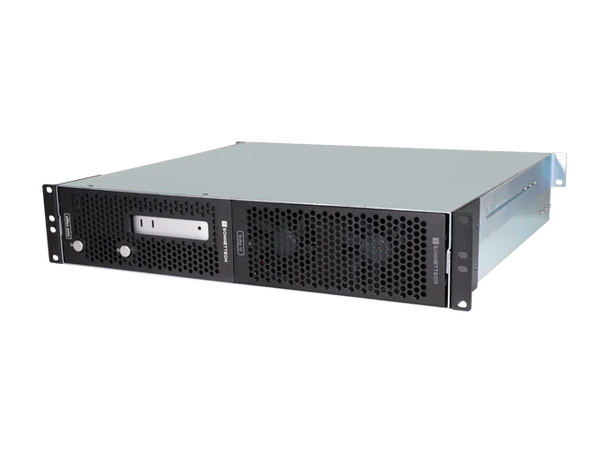

xMac mini (2024+) keeps your Mac minis safely tucked away while providing easy-to-use power buttons for each one — so you can turn them on with just a press. Access is provided to the front ports on the mini mounted in front. A USB-C port provides a connection to the mini mounted in the rear, while a cable passthrough on the front panel enables connection of front computer’s USB connectors to the rear of the rack. The computer mounting and Echo III modules are secured with two rear panel thumbscrews each, enabling you to easily pull out and access the modules and installed computers and PCIe cards through the front of the enclosure. The xMac mini (2024+)/Echo III design enables you to connect and disconnect cables without needing to remove the computers from the module.


Key Features & Specifications

• Connects PCIe Card Slots to Mac mini – Use high-performance PCIe cards with Mac mini computers. For card compatibility, refer to Sonnet’s PCIe Cards Compatibility Chart.

• Makes Your Mac minis Road-ready – A rugged, steel-framed module with rubber-cushioned brackets securely holds Mac minis in place. The 2U rackmount enclosure houses both the computer mounting and Echo III modules, enhancing mobility and streamlining your workflow
• Perfect for Use in Server Rooms – Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24" deep.
• Front Panel Power Buttons – Front panel buttons enable easy and reliable operation of the Mac minis’ bottom-mounted power buttons.
• Port and Slot Access – Direct access to the front ports of the front-mounted mini is provided. A front panel USB-C port connects to the rear-mounted mini. A passthrough opening enables cable connections to both minis. Full access is available to all ports on the back of each computer
• Front to Back Airflow Management – Supports direct airflow through the Mac minis and Echo III Module to keep them operating as cool in a rack as on a desk, even when xMac mini (2024+)/Echo III is mounted between two other rack-mounted components.
• Easy Access – Secured with two thumbscrews each to the back of the enclosure, the xMac mini (2024+) computer mounting and Echo III modules can be removed and reinstalled through the front of the enclosure.
• Power Hub – Single power connection for one or two Mac minis.
• Space for Storage – Beneath the computers, space to place two Thunderbolt or USB SSDs (sold separately) is provided.
• Compatibility – Mac mini (2024+).
• Dimensions (WxDxH): 48.3 x 41.9 x 13.2 cm.
• Weight: 13.15 kg.
• Package Contents – 2U rackmount enclosure; xMac mini (2024+) Module; Echo III Module (3-slot Thunderbolt to PCIe card expansion); two region-specific power cables; 6-pin auxiliary power cable; 0.8-meter Thunderbolt cable; ThunderLok-A connector lock (for securing Thunderbolt cable); extension rails (for rack depth 16-24 inches); and documentation.
