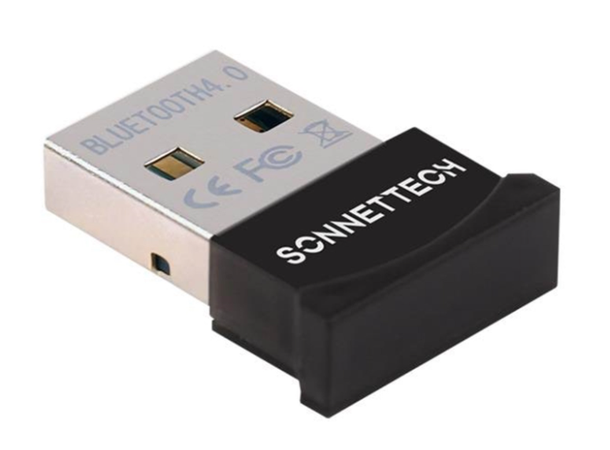

Sonnettech Long-range USB Bluetooth 4.0 Micro Adapter

Enhances Bluetooth Performance of xMac Studio, xMac mini (2018-2023) Server, RackMac (2018-2023) mini, and xMac mini (2018-2023) Module
and Mac and Windows computers.

Key Features

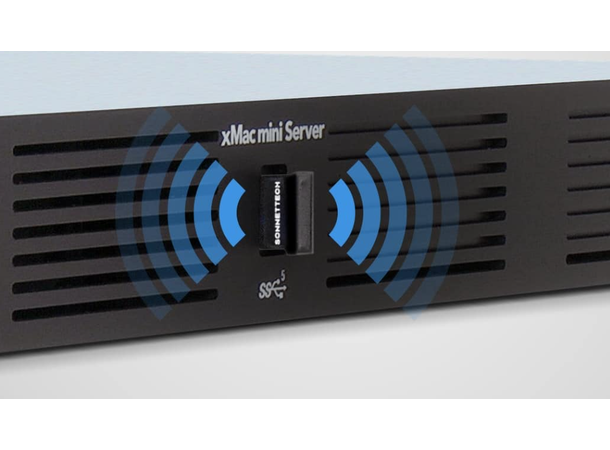

Extends Bluetooth Range for Sonnet’s Mac Studio and Mac mini Rackmount Solutions
Enhances your computer’s Bluetooth performance when installed in Sonnet rackmount enclosures or supported Mac and Windows computers.

Broad Device Support
Supports mice, keyboards, headphones, speakers, printers, and other Bluetooth devices.

macOS and Windows Compatible
Supported in Macs running macOS 13-14 and computers running Windows 11.

Supports Wireless Music Streaming
Works with Bluetooth headphones and speakers.

Micro-Size Adapter
Adapter is small enough to remain safely plugged into USB port during transport.

Extended Transmission Range
Enables greater flexibility in connecting devices wirelessly to your computer; supports receive/send ranges of up 10 meters (30 feet).

Supports Seven Devices Simultaneously
Connect a keyboard, mouse, speakers, phone, and other devices at the same time.

Enhanced Data Rate (EDR) Support
Data transfer rates up to 3Mbps.

Bluetooth Low Energy (BLE) Support
Reduces power consumption by enabling BLE devices to remain paired without sending data constantly between the adapter and device.

Compatibility

Mac Compatibility

• Mac with USB Type A ports
• Mac with USB Type-C ports when used with a USB-C male to USB-A female adapter (sold separately)
• macOS 13-14
• Not compatible with Apple Magic Keyboard with Touch ID

Windows Compatibility

• Windows computer with USB Type A ports
• Windows computer with USB Type-C ports when used with a USB-C male to USB-A female adapter (sold separately)
• Windows 11

Hardware

Part Number

• USB-BT4


Warranty

• 2-year

• Form Factor

• USB Type A adapter

Bus Interface

• USB 3.2 Gen 1

External Connectors

• USB Type A

Standards

• Bluetooth 4.
• Bluetooth Low Energy (BLE)
• Supports Bluetooth 4.2 and 5 devices(1)
• Backward compatible with Bluetooth v3.0, 2.0, 1.2, and 1.1 devices

Transmission Range

• Up to 10 meters (30 feet)(2)

Data Rate

• Enhanced Data Rate (EDR) 3Mbps

Dimensions (WxDxH)

• 0.62 x 0.87 x 0.25 in. (15.9 x 22.2 x 6.3 mm)

Compliance

• FCC/CE
• RoHS 3 (Directive 2015/863)
• IEC62368-1 and IEC62368-2 Safety

Package Contents

• Sonnet Long-range USB Bluetooth 4.0 Micro Adapter
