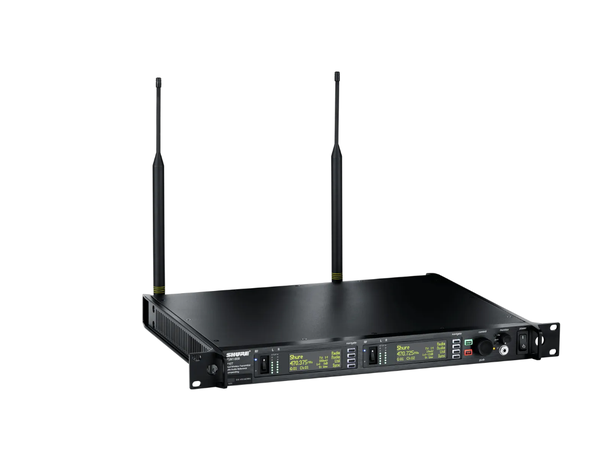

Shure PSM1000 Dual-Channel Transmitter (554-626MHz)

Dobbel sender. Lar seg styre via Wireless Workbench sammen med UHF-R og Axient.
?PSM1000 delivers the same superior audio quality and RF performance that our customers have come to expect from all of our wireless products, said Matt Engstrom, Category Director for Listening Products at Shure. ?What sets this new system apart is an enhanced feature set, including the integration with our Wireless Workbench software that will provide engineers and performers with options for increased control and connectivity.?

The Shure PSM 1000 Personal Monitor System represents a new benchmark for in-ear monitoring. With best-in-class audio and RF performance, networking connectivity with full WWB integration, and a true diversity-equipped low profile bodypack receiver, PSM 1000 delivers on the demanding requirements of top tier sound professionals worldwide.

• ?Full rack, dual-channel transmitter in a professional, touring grade chassis
• ?72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
• ?Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench® software:
• RF mute enable/disable
• RF output power adjustments
• Aux/line level
• Audio input level
• Channel/device name edit
• Firmware updates
• Backwards-compatible with PSM®900 receivers
• ?RF Mute Switch allows system setup without causing RF interference
• ?Sync RF scan information from a P10R bodypack quickly and easily over IR link
• ?Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
• ?Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
• ?Front panel audio input gain adjustment and LED level meter with clipping indicator
• ?Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
• ?High-contrast LCD with grouped menu items provides an intuitive user interface
• ?Front or back mountable antennas
• ?Compatible with PA421SWB and PA821SWB antenna combiners

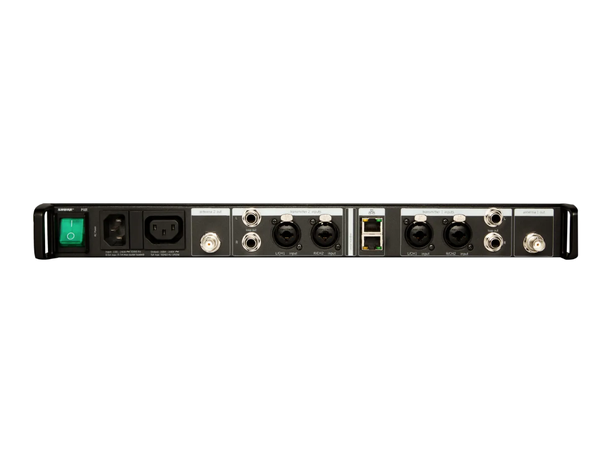

• ?Loop out connectors for multiple mix setups and easy installation
• ?Switchable +4dBu and -10 dBV input level
• ?Balanced, ¼" and XLR connectors
• ?1/8" headphone out on the front panel for easy monitoring



RF Output Power
Selectable: 10, 50, 100 mW (+20 dBm)
varies by region

RF Output Impedance
50 ? (typical)

Net Weight
850 g

Dimensions
483 mm x 343 mm x 44 mm

Power Requirement
Input: 100?240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
Output: 100?240V AC, 5A max, unswitched

AUDIO INPUT

Connector Type
Combination XLR and 6.35 mm (1/4?) TRS

Polarity
XLR: Non-inverting (pin 2 positive with respect to pin 3)
6.35 mm (1/4?) TRS: Tip positive with respect to ring

Configuration
Electronically balanced
Impedance
70.2 k? (actual)

Nominal Input Level
Switchable: +4 dBu, ?10 dBV

Maximum Input Level
+4 dBu: +29.2 dBu
?10 dBV: +12.2 dBu

Pin Assignments
XLR: 1=ground, 2=hot, 3=cold
6.35 mm (1/4?) TRS: Tip=hot, Ring=cold, Sleeve=ground

Phantom Power Protection
Up to 60 V DC

AUDIO OUTPUT

Connector Type
6.35 mm (1/4?) TRS

Configuration
Electronically balanced

Impedance
Connected directly to inputs
