NTP Penta 720 Base unit frame 1xPSU 16 AES/EBU, 64 MADI, DANTE/SDI/3G opsjon NTP Penta 720 Base unit frame 1xPSU 16 AES/EBU, 64 MADI, DANTE/SDI/3G opsjon

NTP Penta 720 Base unit frame 1xPSU

16 AES/EBU, 64 MADI, DANTE/SDI/3G opsjon

Varenr: 720-801A
-+
Bestillingsvare (7 dager)
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

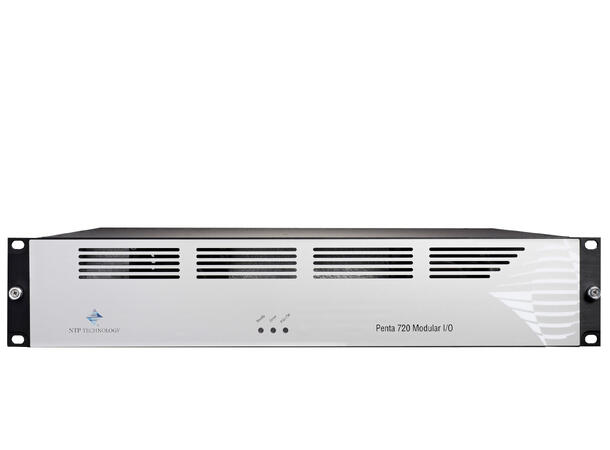

PENTA 720 Audio router & audio distribution interface

NB. Hvis behov for Avid Pro Tools MiniDigilink tilkobling henviser vi til Avid MTRX: https://www.prolyd.no/avdelinger/produsent/avid/pro-tools-mtrx-base-enhet-promon-dadman-64-pt-16x-aes-64-madi-io-9900-71247-00-p0000023555

PENTA 720 is a new generation of audio router and audio distribution interfaces from NTP Technology, which provides a versatile and flexible interface for signal distribution of analogue and digital audio via AES/EBU, MADI, SDI SD/HD/3G embedded audio as well as routing via IP Gigabit Ethernet and optical fibre networks.

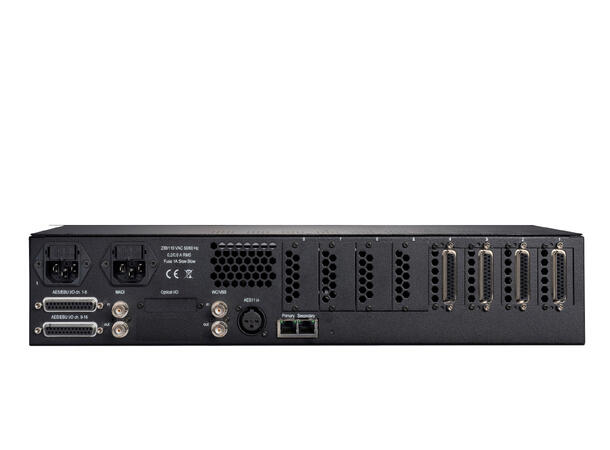

PENTA 720 is a 2U modular audio interface designed for use in television or radio studios, outside broadcast vehicles andpublic-events. It comes with eight channel AES3 input/output channels, MADI, two IP Audio Ethernet in/outs

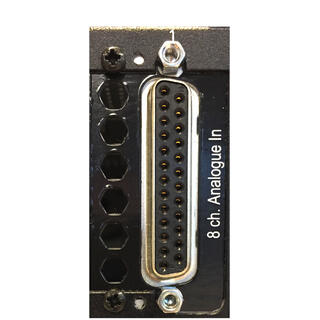

Up to eight optional cards can be incorporated to match specific operational requirements. The range of available plugincards includes an eight-channel analogue input interface, eight-channel analogue output, two-channel SDI/HD/3G embedder interface and a two-channel SDI/HD/3G deembedder interface. All cards support hot-swop. A mini-module slot is available for dual SFP MADI optical input/output module, which is also compliant to the NTP HotLink/Dual MADI format.

Key features:

  • 8 AES/EBU I/O and 1-3 MADI I/O
  • 8 card slots for analogue and digital I/O cards supporting hot-swop
  • IP audio L3 Ethernet I/O powered by Dante
  • TCP/IP control via NTP Router Control System and Stand alone control applications for PC Single or Dual power supply

Key benefits:

  • Analogue and Digital audio interfacing
  • Interfaceing and routing of embedded audio in video SDI SD/HD/3G signals
  • Flexible patching and routing of digital audio signals providing
  • Stand alone IP audio interface and format converter
  • Interface for NTP TDM router systems
  • Low latency, tightly synchronised, transport of uncompressed audio over IP networks using off the shelf switches

Signal routingPENTA 720 include a 1024x1024 multiplexer,enabling all analogue and digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs, and furthermore it incorporates soft switching with a fade down and fade up functionality of the signal level. Soft switching ensures that setting or changing a signal path can be made without any audible click or artefact.

Teknisk info

Produktinformasjon

- Funksjon & bruk
  • Fjernstyrbar
  • IP nettverk lyd
  • Lydkort
  • Modulær
  • Opsjon
  • Redundancy
  • Romkorreksjon
  • SRC Sample Rate Konvertering
  • Standalone
  • Surround
  • Formatkonverter
  • 19" rack
- Grensesnitt (Protokoll)
  • AES TASCAM PIN
  • AES3
  • AES67
  • Dante
  • DSD/DXD
  • EUCON
  • MADI Coaxial
  • MADI Multi Mode
  • MADI SFP
  • MADI Single Mode
  • SDI
  • WordClock
- Tilkoblinger (Pluggtype HW)
  • BNC
  • BNC-HD
  • DB 25
  • DB25 AES
  • LFH60
  • MADI SC
  • RJ45
  • SDI
  • XLR
