Neutrik Chassi OpticalCon LC Fib.opt For montering i eksempelvis SMRT bokser

Neutrik Chassi OpticalCon LC Fib.opt

For montering i eksempelvis SMRT bokser

Varenr: NO2-4FDW-A
-+
Bestillingsvare (1 dager)
BeskrivelseTeknisk infoTilbehørRESSURSER
Beskrivelse
Neutrik OpticalCon LC Fib.opt. chas 2 fiber, 4 cu, sort IP65.

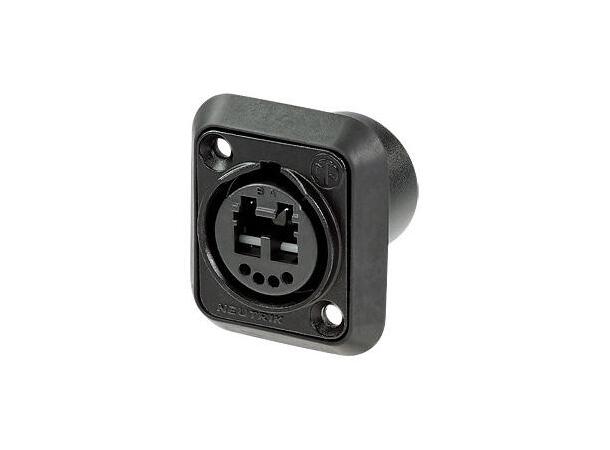

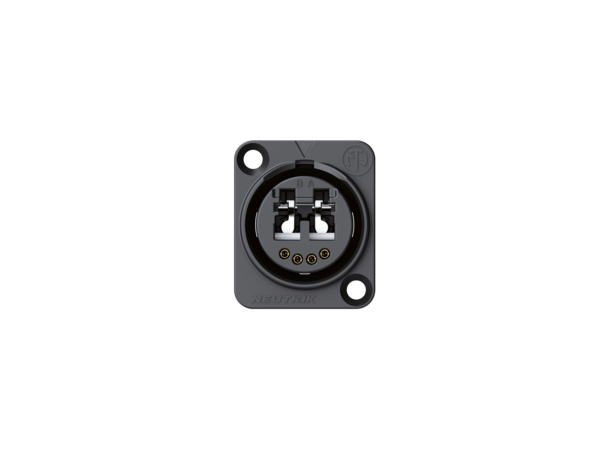

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65, front panel mount.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fiber mode.

Features & Benefits

  • Suggested OEM equipment connector due to LC front compatibility
  • Designed as feedthrough with automatic sealing shutter
  • Shutter with silicone gasket protects optical connection from dust and dirt
  • Accommodates standard LC connectors on the rear for simple installation
  • Connection on the front side either by rugged opticalCON or standard LC connector
  • The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
  • Water resistant according to IP65 ingress protection in mated condition
  • In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52.
  • Color coded rubber sealing to identify fiber mode:
  • Multimode - black
  • Single mode PC - blue
  • Single mode APC - green
Teknisk info

Produktinformasjon

- Plugg inngang (hun) Fiber LC MADI
- Plugg utgang (han) Fiber LC MADI
