miniDSP DDRC-88D Prosessor

Dirac Live, Multi-Channel, AES I/O

Varenr: 117597
-+
Bestillingsvare (0 dager)
BeskrivelseRESSURSER
Beskrivelse

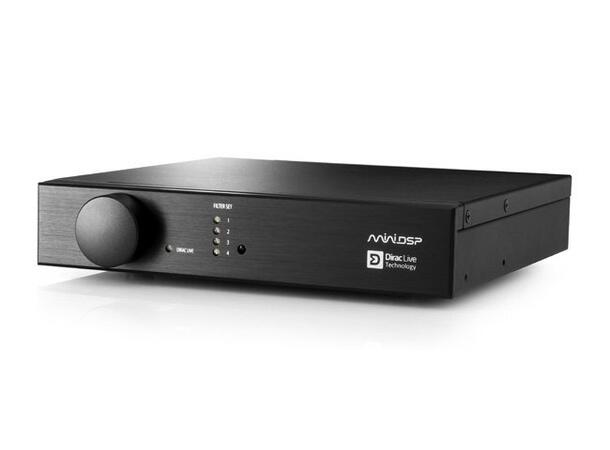

The DDRC-88D is the digital I/O version of the well-known DDRC-88A analog I/O Dirac Live processor. Housed in a compact lightweight chassis, the DDRC-88D provides a full 8 channels of Dirac Live room correction via professional AES/EBU digital inputs and outputs. This unit is also available in SPDIF in/out via COAX cable.
With 8 channels of Dirac Live processing, the DDRC-88D is ideally suited for professional surround-sound studio, broadcasting and Digital Cinema (DCI) applications. Dirac Live’s renowned room correction capabilities ensure the most accurate and immersive surround experience for mastering and playback. An inexpensive optional software upgrade adds additional processing functions including bass management and active speaker implementation.

The DDRC-88D is configured via USB and a user-friendly software suite that runs on Mac or Windows. Four full preset configurations are stored onboard and can be recalled easily from the front panel or with a remote control. An optional half mount rack adaptor allows easy rack mount installation.


Features

  • Processor: 32-bit floating-point Analog Devices SHARC DSP
  • Input/Ouput resolution: 24 bits
  • Dirac V3 support
  • Matched sample rate clocked to first input channel (e.g. 192kHz in, 192kHz out)

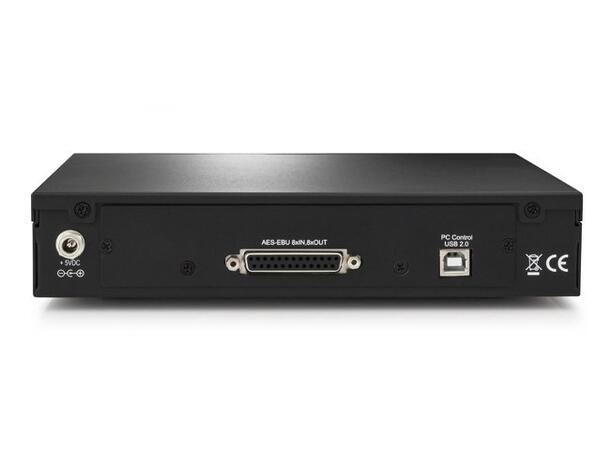

  • Inputs: 4 x Stereo AES-EBU/SPDIF inputs (8 channels)
  • Ouputs: 4 x Stereo AES-EBU/SPDIF outputs (8 channels)
  • dB25 for easy interfacing to DCI processors
  • Optional DDRC-88BM plugin for Bass Management + Dirac Live + Active Speaker processing (Crossover/PEQ/Delay)
