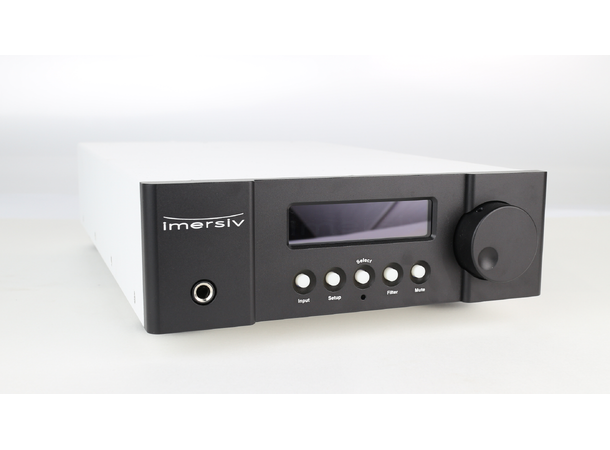

The D-1 DAC — Multi-Path High-Dynamic-Range Audio

Welcome to the next evolution in digital conversion. The imersiv D-1 DAC delivers an astonishing 28 bits of ISO-free dynamic range and linearity, thanks to our breakthrough HDR-A® (High Dynamic Range Audio) multi-path architecture.

Why HDR-A® Matters

HDR-A® is like HDR in photography—stacking multiple exposures. In audio, it stacks paths to dramatically extend dynamic range and reduce noise:
Dual DAC paths: one spans 90?dB, the other 100?dB—combined they yield 180?dB total range
Achieves ultra-low 40?nV broadband noise—100× quieter than top DACs
Sustains +22?dBu (10?Vrms) headroom without raising noise, preserving pristine clarity
The result? Unprecedented purity, detail, and depth across the entire musical spectrum.

Pro-Engineered Precision

Trusted and prized by over 40 Grammy-winning engineers and film composers, the D-1 consistently earns acclaim:
"A revelation… I went into shock… the clarity is incredible" – Pro Users
From quiet nuances to dynamic crescendos, enjoy unmatched fidelity, accuracy, and spatial realism.

Finish & Configuration Options

Available in sleek Silver or Black metal finishes
Choose single- or dual-panel rack-mount versions
2-channel standard, with 4-channel options pending

What’s in the Box

• D-1 DAC unit
• IEC Power Cable & Proprietary Adapter
• IR Remote + 2× AA batteries
• Quick Start Guide
• 3× BNC-to-RCA adapters

SPECS:

INPUT FORMAT SUPPORT
• Sample Rate: 32kHz to 384kHz
• Bit Depth: Up to 32-bit
• DSD Support: 1xDSD, 2xDSD, 4xDSD
• Network Audio: Dante (optional)

DIGITAL INPUTS
• 1× USB (Type B), 32-bit
• 1× AES/EBU (XLR)
• 3× SPDIF (BNC)
• 1× Toslink
• 1× Dante (optional)

ANALOG OUTPUTS (XLR)
• Output Level: +22dBu differential-balanced (9.75Vrms) max
• Output Impedance: 1.8 ohms (quiescent source)

LEVEL CONTROL
• Step Size: 0.1dB or 1.0dB (selectable)
• Range: 154dB (-130dB to +24dB)

MANUAL ALIGNMENT
• Channel Matching: ±0.01dB left + right

DISPLAY
• Type: Monochrome OLED
• Resolution: 256 × 64 pixels

FRONT PANEL CONTROLS
• Input
• Setup
• Select
• Filter
• Mute

REMOTE CONTROL
• Infrared, 27 functions (4 reserved)
• Requires 2× AA batteries

POWER REQUIREMENTS
• Voltage: 90–240V AC, 50–60Hz
• Power Consumption: 15W (nominal)

PHYSICAL DIMENSIONS
• Chassis: 8.6” W × 16.3” D × 3.2” H (218 × 414 × 81 mm)
• Weight: 7 lbs 7 oz (3.4 kg)

SHIPPING
• Box Size: 21” × 21” × 8” (53 × 53 × 20 cm)
• Shipping Weight: 12 lbs (5.5 kg)

INCLUDED ACCESSORIES
• Power Adapter
• IEC Power Cable
• Remote Control
• 2× AA Batteries
• Quick Start Guide
• 3× BNC to RCA Adapters

ENVIRONMENTAL CONDITIONS
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 35% to 85% RH (non-condensing)

AUDIO PERFORMANCE
• Frequency Response: 20Hz – 20kHz ±0.1dB
• THD+N @ 1kHz (22kHz BW): 0.0002% @ +22dBu
• THD+N @ 20kHz (80kHz BW): 0.0005% @ +22dBu
• Self-Noise (20Hz–22kHz): -146dBu (unweighted, calculated)
• Dynamic Range: 168dB (28-bit)
• Signal-to-Noise Ratio: 168dB (28-bit)
• Linearity: 168dB (28-bit)
• Crosstalk: Better than -120dB @ 1kHz

HEADPHONE OUTPUT
• Load Impedance: 32O to 600O
• Max Power Output: 2.8W
• DC Offset: 20µV max (quiescent)

ADDITIONAL FEATURES
• Digital Filter: 6 selectable variations (see user guide)
• Polarity Flip: 180 degrees
• Mute: Output relay
• Resampling: 192kHz
• Calibration: See user guide

NOTES
• Performance specifications are broadband & unweighted.
• Specifications subject to change without notice.
